Home > Products > Gauge Valve > Trustworthy China Supplier: high quality stainless steel forged gauge valve from alibaba com
Trustworthy China Supplier: high quality stainless steel forged gauge valve from alibaba com
- 5000 Piece / Pieces per Month
- Shenzhen Shanghai Tianjin
- T/T L/C D/P D/A Credit Card
Product Details
Standard or Nonstandard: | Standard | Structure: | Other, needle | Pressure: | High Pressure |
Power: | Manual | Material: | Stainless Steel | Temperature of Media: | Medium Temperature |
Media: | Gas | Port Size: | 1/2'' 3/4'' | Place of Origin: | Sichuan, China |
Model Number: | GV1 | Brand Name: | Hikelok | Application: | General |
Packaging Details
Trustworthy China Supplier: high quality stainless steel forged gauge valve from alibaba com
Packaging Details: gauge valve is packed in carton box, wooden case or according to your requirement
Delivery Details: Inventory for sample order; within 15 days for bulk order
Product Description
Trustworthy China Supplier: high quality stainless steel forged gauge valve from alibaba com
Maximum working pressures:
GV1 up to 6000 psig (414 bar)
GV2 up to 10000 psig (689 bar)
Working temperature:
PTFE packing: from -65℉ to 450℉ (-54℃ to 232℃ )
Graphite packing: from -65℉ to 1200℉ (-54℃ to 649℃)
Non-rotating lower stem, ball tip designs
Safety back seating seals in fully open position
Rolled spindle operating threads
Lubricant for stem thread isolated from the media
Bonnet locking pin fitted as standard
Low torque operating T bar handle
Handle of different colors available for optio

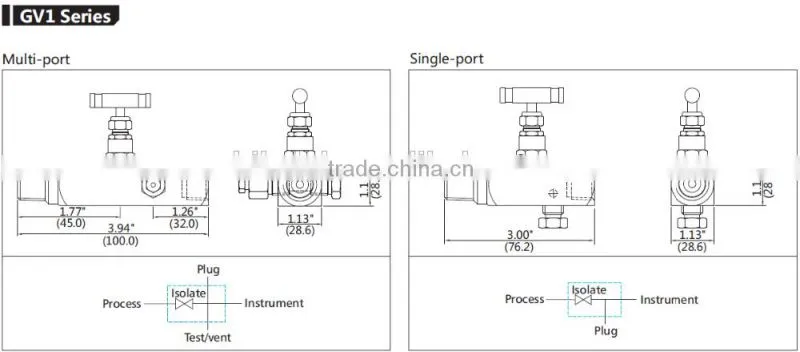

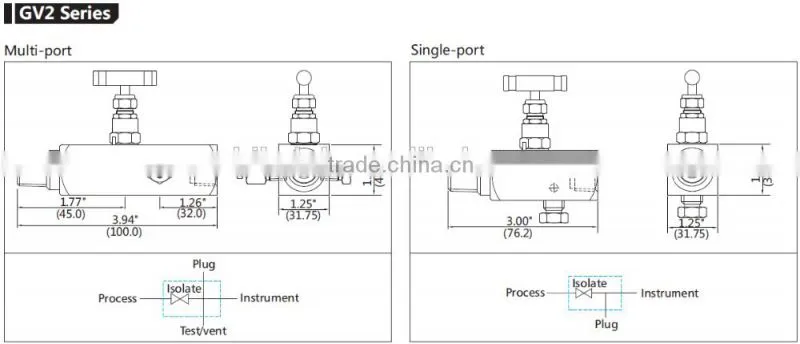

Dimensions

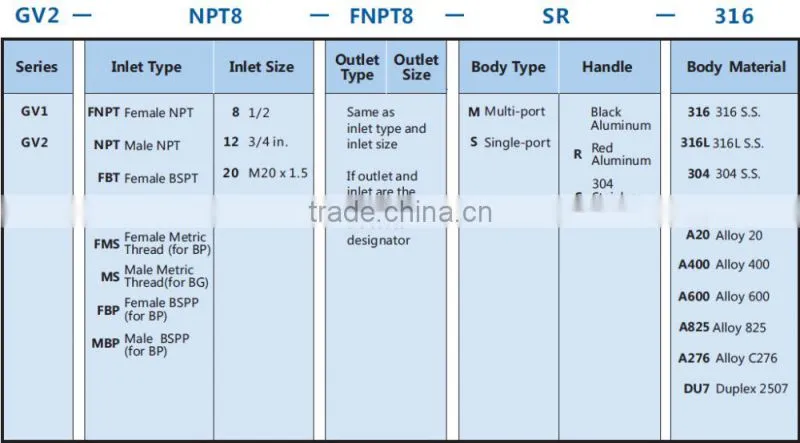

4.How to Order
MOQ (Minimum Order Quantity): 1 Pc.
Delivery Time: It depends on the order quantity, as usual 4 week, negotiable.
Payment Term: T/T, Western Union, Paypal, negotiable.
Products Warranty: It depends on different products, as usual for one year at least
MOQ (Minimum Order Quantity): 1 Pc.
Delivery Time: It depends on the order quantity, negotiable.
Payment Term: T/T, Western Union, Paypal, negotiable.
Products Warranty: It depends on different products, as usual for one year at least
Company Profile
Hike Fluid Equipment Co., Ltd. was established in 2011. We are located in industry concentration development Zone in Chongzhou. The registered capital of the company is RMB3 million and we cover an area of 4,000 square meters. The company is formerly known as the fluid business unit of Chengdu Haiwang Precision Equipment Co., Ltd. In order to satisfy the increasing needs of our business, we set up Hike Fluid Equipment Co., Ltd. The fluid business unit of Chengdu Haiwang Precision Equipment Co., Ltd. has focused on precision fluid fittings and valves for more than 10 years. For the accumulated experience, our products have achieved a good reputation in Chinese market, especially the instrumentation fittings and valves, which can be equal to the international well-known companies. We have impeccable management system in quality and strict product test program to ensure valves and fittings have excellent quality when they leave the factory.
Hike Fluid Equipment Co., Ltd. now has more than 100 staff members, 20% of them are professionals who have rich experience in this area. The rich experience in product development we accumulated ensures us to customize products for the practical application needs of customers. The fixed assets of our company is more than 10 million and we have more than 50 sets of precision CNC lathes, machining centers, slitting machines, cape cars, millings, sawing machines, washing, drying and testing equipment. Inspection center is equipped with a large number of test equipment and calibration standard parts, such as spectrometer, metallurgical microscope, quadratic element, projector, sclerometer, etc. We set up inspection test equipment calibration system and the maintenance management system.
The main products of Hike Fluid Equipment Co., Ltd. include needle valves, ball valves, instrument manifolds, bellows valves, check valves, twin ferrules series tube fittings, instrument pipe fittings, weld fittings and other kinds of instrumentation valves and fittings. We can provide stainless steel, alloy steel, brass, special alloy and carbon steel. The product executive standard of the company is ANSI, ASME, ASTM, API, MSS, ISO, EN, GB, JB, HG, etc. Our products are widely used in power generation, petroleum, petrochemical, natural gas, semiconductor, laboratory, shipbuilding, steel, chemical industry and other fields.
