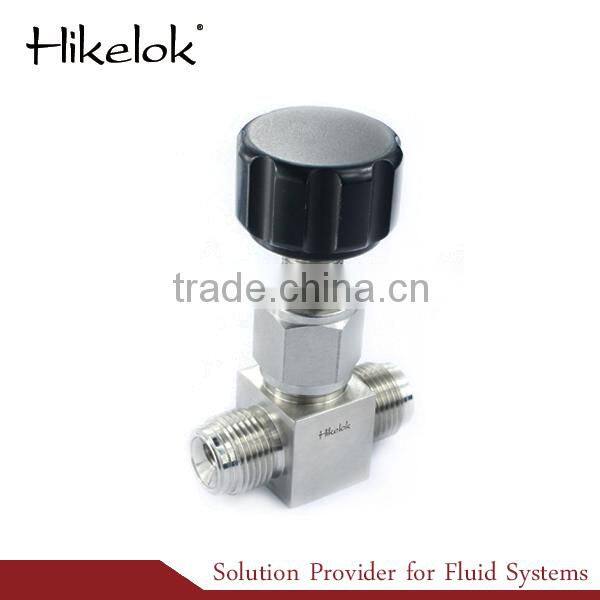

Stainless steel 316 316l 304 304l 3/8 3/8" in inch fractional metric tube socket butt weld bellow seal globe valve
Product Description
1. Specs
Maximum working pressure up to 1000 psig (68.9 bar)
Working temperature from -20℉ to 900 (-28 to 482 )
Flow coefficients (Cv) from 0.12 to 1.2
Variety of end connections
316S.S., brass and monel 400 materials
Panel and bottom mounting
Bar, round handle are available
Precion-formed metal bellows providers reliable seal

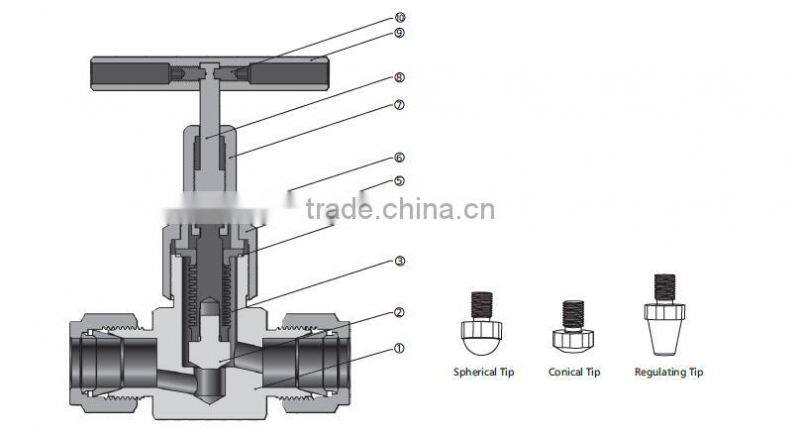

Nonrotating stem tip: spherical, conical and regulating
Gasket body to bellows seal is standard, weld seal also available.
Replaceable bellows and stem assembly
-9 3 Every valve is tested with helium for 10s to a maximum leak rate of 4 ×10 std cm /s
2. Standard Material Of Construction
3. Presssure - Tempreture Ratings
4. Flow coefficient VS. Turns Open
5. How to order
Packing & Shipping
1. Packing
2.Shipping
For small order or urgent order, we normally send the goods by courier.
For big order, the goods can be sent by sea
Our Service
You should make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble,free performance, function, material compatibility, adequate ratings, proper installation, operation and maintenance are the responsibilities of the system designer and user. From quote to delivery, we can provide the detailed support you need. 1. CAD drawing
2. P&ID
3. Component selection
4. Bill of material
5. Professional services such as bending and welding
6. Testing to guarantee the system
7. Professional packaging and delivery
Comapny Information
- Passed ISO9001-2000 & 2008
- Supply OEM/ODM Manufacturing.
- Designed and manufactured to intermix and interchange Swagelok ® and major global brands.
Hike Fluid Equipment Co., Ltd. now has more than 100 staff members, 20% of them are professionals who have rich experience in this field. The rich experience in product development we accumulated ensures us to customize products for the practical application needs of customers. We have more than 50 sets of precision CNC lathes, machining centers, slitting machines, cape cars, millings, sawing machines, washing, drying and testing equipment. Inspection center is equipped with a large number of test equipment and calibration standard parts, such as spectrometer, metallurgical microscope, quadratic element, projector, sclerometer, etc. We set up inspection test equipment calibration system and the maintenance management system.
The main products of Hike Fluid Equipment Co., Ltd. include needle valves, ball valves, instrument manifolds, bellows valves, check valves, twin ferrules series tube fittings, instrument pipe fittings, weld fittings and other kinds of instrumentation valves and fittings. We can provide stainless steel, alloy steel, brass, special alloy and carbon steel. The product executive standard of the company is ANSI, ASME, ASTM, API, MSS, ISO, EN, GB, JB, HG, etc.
FAQ
1. What is the acceptable MOQ?
For this bellow seal globe valve , our acceptable MOQ is 1pc. Any trial order in small quantity is welcome.
2. What is the Delivery time?
For samples,we usually have them in stock, so the delivery time will be quite short .
For normal order, the delivery time should be in 2 weeks.
3.What is the acceptable payment term?
T/T, Paypal ,Western Union, MoneyGram, L/C, D/A, D/P
Stainless steel 316 316l 304 304l 3/8 3/8" in inch fractional metric tube socket butt weld bellow seal globe valve
