Specifications

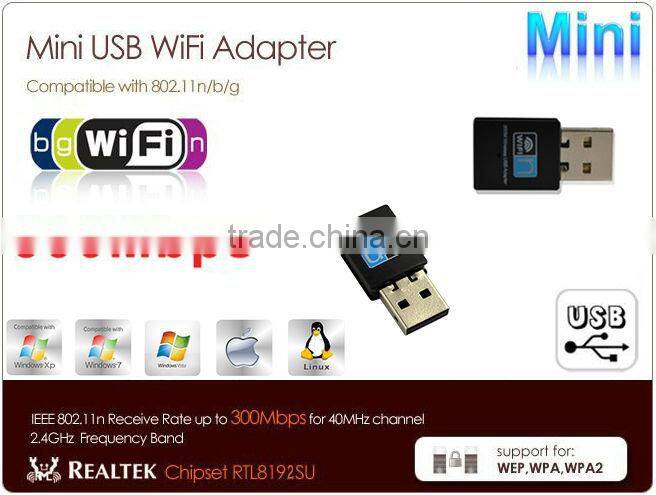

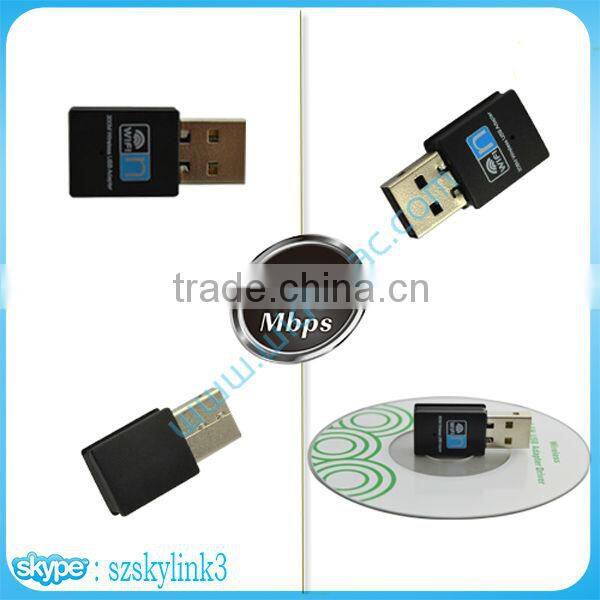

Mini 300M USB Wireless Network AdapterRealtek 8192 Chipset
2T2R built-in antenna
2.4GHz 802.11b/g/n
Realtek Wifi Adapter
Model:SL-3505N
Mini 300M USB Wireless Network Adapter Realtek 8192 Chipset
SL-3505N is a 802.11n compliant wireless USB Adapter that provides up to 4x faster wireless speeds
and 3x better wireless reception over 802.11g products while staying backward compatible with
802.11bg devices.
1. Standard: IEEE 802.11n, IEEE802.11g, IEEE 802.11b,
2. Data transfer rate of up to 300Mbps (downlink) and 300Mbps (uplink) 2T2R
3. Interface: USB2.0
4. Operating frequency: 2.4~2.4835GHz
5. Security: 64/128 bit WEP/WPA/WPA2,WPA-PSK/WPA2-PSK(TKIP/AES)
6. Antenna type: Internal Omni-directional Antenna
7.Supports infrastructure and Ad-Hoc mode
8.Environment: operating temperature 0-40 °
Minimum system requirements:
300Mhz process or above Minimum 64MB of RAM
Windows 2000/XP/Vista/Win7, Linux, Mac OS10.4/10.5/10.6(download driver from official website)
CD-ROM drive
USB2.0 port available
300Mbps wifi dongle
Software Specification |
Hardware Specification |
||
Chipset |
Realtek 8192CU |
Interface |
USB2.0 Hi-Speed connector |
Speed |
300Mbps |
Operating Temperature |
0oC~40oC (32oF~104oF) |
Standard |
IEEE 802.11n,IEEE 802.11g, IEEE 802.11b |
Storage Temperature |
-40oC~70oC (-40oF~158oF) |
Wireless Speed |
11n: Up to 150Mbps |
Relative Humidity |
10% ~ 90%, non condensation |
11g: Up to 54Mbps |
Storage Humidity |
5%~90% non-condensing |
|
11b: Up to 11Mbps |
|||
Antenna |
Built In antenna 2T2R |
||
Frequency Range |
2.4-2.4835GHz |
||
Wireless Transmit Power |
20dBm(MAX EIRP) |
||
Modulation Type |
OFDM/CCK/16-QAM/64-QAM |
||
Receiver Sensitivity |
130M: -68dBm@10% PER |
||
Work Mode |
Ad-Hoc / Infrastructure |
||
Wireless Security |
64/128 bits WEP |
||
WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES) | |||
Support Operating System |
Windows 2000/XP/Vista/Linux/ Win 7/Win8 |
||

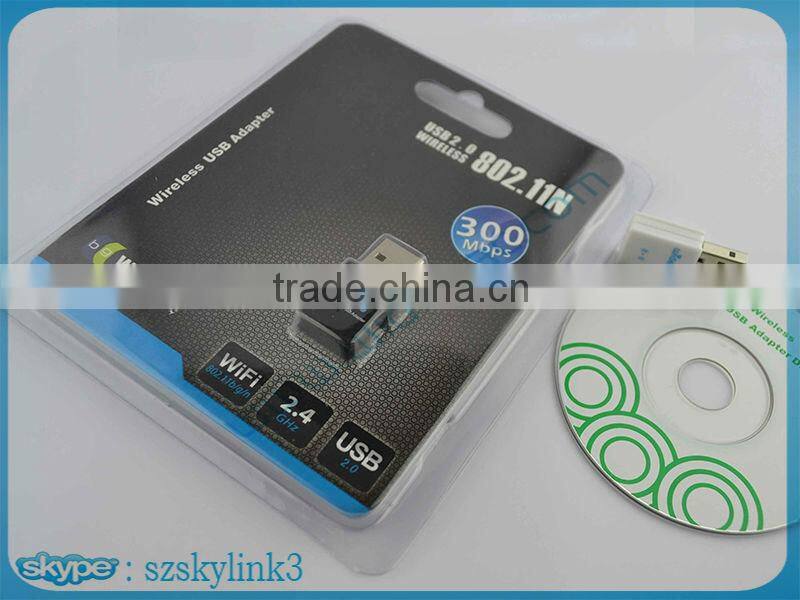

Package contents: 300mbps wireless usb adapter
1X RTL8182CU 300M 2T2R Wifi Adapter
1X CD Driver
We are LG, D-Link, Telecom of Russia, Telecom of India, Skyworth, China Netcom and China Telecom’s OEM supplier, and have our own brand WIDEMAC, SKYLINK, TIANHAO, BLUEWAY on the market.
