Specifications
802.11n wireless lan adapterusb 2.0 inthrface
Ralink 5370 Chipset
2 dBi antenna
Meet FCC RoHS
802.11n 150Mbps USB wireless lan adapter (Ralink 5370 Chipset)
Model: WD-1506N
Nano 150Mbps USB wireless lan adapter

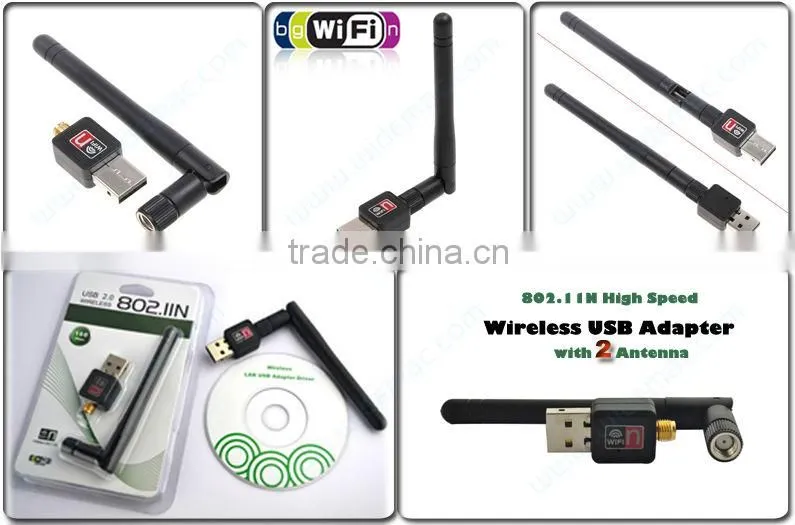

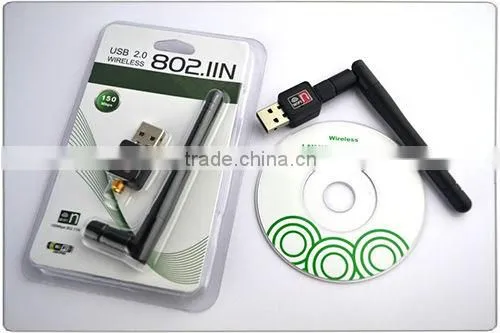

Pictures:
Description: usb wireless lan adapter
WD-1506N is a 802.11n compliant wireless USB Adapter that provides up to 4x faster wireless speeds and 3x better wireless reception over 802.11g products while staying backward compatible with 802.11g/b devices.
Hardware: usb wireless lan adapter
Chipset: Ralink RT5370
Host interface: USB2.0/1.1 type A (4 pin header)
LEDS; link/Activity
RF: usb wireless lan adapter
Antenna: SMA 2dBi antenna(1T1R)
Frequency: 2412~2483.5 MHz, ISM band
Transmit Power: 802.11b: 17+/-1.5dBm; 802.11g: 14+/-1.5dBm;
Receive Sensitivity: 802.11b: -84dBm@11Mbps; 802.11g: -68dBm@54Mbps
Software: usb wireless lan adapter
Operation System: Windows CE/2000/XP/Vista/Win 7; Linux;
Security: WEP 64/128, WPA, WPA2, 802.1x, Cisco CCS V1.0, 2.0 and V3.0 Compliant
Operation Conditions
Voltage Range: DC 5.0V ± 5%
Operating Temperature: 0°C - 50°C
Storage Temperature: -20°C - 70°C
Operating Humility: RH 95% (Non-Condensing)
Storage Humidity: RH 95% (Non-Condensing)
Features: usb wireless lan adapter
150Mbps wireless transmission rate
Provides two methods of operation: Infrastructure and Ad-Hoc
Quick Secure Setup, complies with WPS for worry free wireless security
Supports 64/128-bit WEP, complies with 128 bit WPA standard(TKIP/AES), supports MIC, IV Expansion, Shared Key Authentication, IEEE 802.1X
Supports Sony PSP for online game
Supports Windows 2000/XP/Vista OS
Seamlessly compatible with 802.11b/g/n devices
Equipped with an elegant and stylish USB Cradle for flexible deployment
Specification: usb wireless lan adapter
Software Specification | |
Standard |
IEEE 802.11n,IEEE 802.11g, IEEE 802.11b |
Chipset |
Ralink RT5370 |
Wireless Speed |
11n: Up to 150Mbps 11g: Up to 54Mbps 11b: Up to 11Mbps |
Frequency Range |
2.4-2.4835GHz |
Wireless Transmit Power |
20dBm(MAX EIRP) |
Modulation Type |
OFDM/CCK/16-QAM/64-QAM |
|
Receiver Sensitivity (without Standards antenna) |
130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER |
Work Mode |
Ad-Hoc Infrastructure |
Wireless Security |
64/128 bits WEP WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES) |
Support Operating System |
Windows 2000/XP/Vista/Linux/ Win 7 |
Hardware Specification | |
Interface |
USB2.0 Hi-Speed connector |
Operating Temperature |
0oC~40oC (32oF~104oF) |
Storage Temperature |
-40oC~70oC (-40oF~158oF) |
Relative Humidity |
10% ~ 90%, non condensation |
Storage Humidity |
5%~90% non-condensing |
Dimensions |
17.5*11*1cm ( L*W*H) Packaging |
Package contains:
1* Wireless USB adapter
1* CD driver
1* 2dBi Antenna
