Specifications

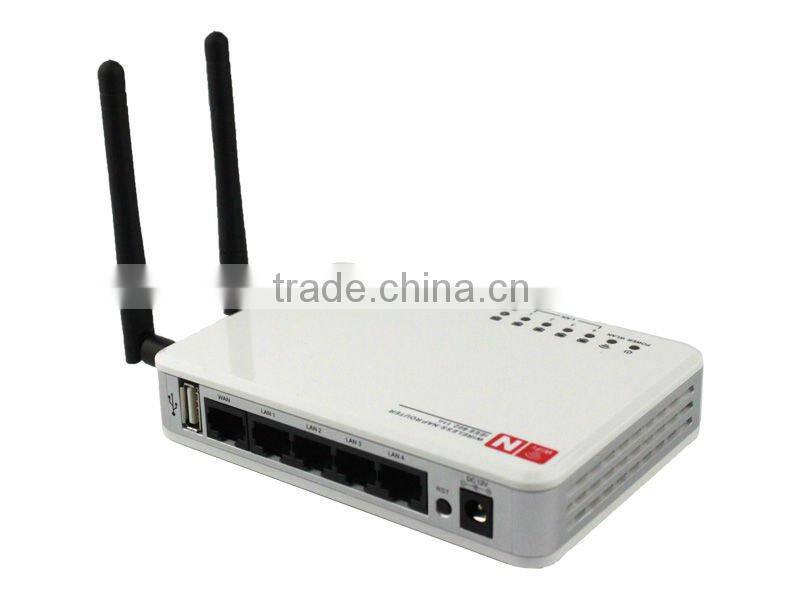

300M Ralink 3052 wireless routerOpenwrt software installed
8M Flash + 32M RAM
2*2 dBi antenna
OEM/ODM
802.11n 300Mbps Ralink 3052 wireless router

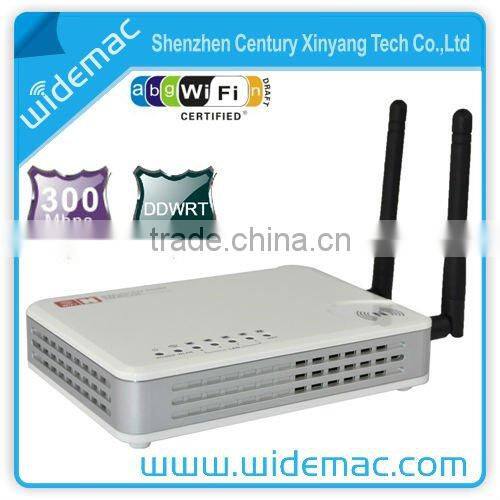

SL-R7202: 300Mbps DDwrt wireless router
Ralink 3052 Chipset
4M Flash + 32M RAM
1Wan port + 4 Lan port
DDwrt software installed
DD-WRT is a lightweight Linux-based firmware that can be embedded in your wireless router to drastically increase its capabilities. DD-WRT allows the user to customize and configure almost any aspect of the router including boosting the wireless signal and prioritizing application access, among more advanced features
SL-R7203: 300Mbps Openwrt wireless router
Ralink 3052 Chipset
8M Flash + 32M RAM
1Wan port + 4 Lan port + 1USB port
Openwrt software installed
OpenWrt is described as a Linux distribution for embedded devices.
Instead of trying to create a single, static firmware, OpenWrt provides a fully writable filesystem with package management. This frees you from the application selection and configuration provided by the vendor and allows you to customize the device through the use of packages to suit any application. For developer, OpenWrt is the framework to build an application without having to build a complete firmware around it; for users this means the ability for full customization, to use the device in ways never envisioned.
300M Wireless Router with Extended Range
Built-in 4-port 10/100M Switch
Supports far-distance transmission, 150 meters indoor, 400 meters outdoor (depends on the environments around)
Supports remote/local Web management and TFTP upgradeSupports PPPoE, Dynamic IP, Static IP, L2TP, BigPond
Cable Internet Access, 802.1X, with 2dBi Detachable Antenna
Supports WDS wireless network extension
Supports DHCP server/client ,Built-in firewall for anti-attack
Supports virtual server, DMZ host , SNTP
Supports QoS function
Provide 1WAN port + 4LAN ports +1USB port
Openwrt Software or DDwrt Installed
Standards |
IEEE 802.11n(Draft 2.0), IEEE 802.11g, IEEE 802.11b |
Wireless Signal Rates |
11n: 270/243/216/162/108/81/54/27Mbps 135/121.5/108/81/54/40.5/27/13.5Mbps 130/117/104/78/52/39/26/13Mbps 65/58.5/52/39/26/19.5/13/6.5Mbps 11g: 54/48/36/24/18/12/9/6M(dynamic) 11b: 11/5.5/2/1M(dynamic) |
Frequency Range |
2.4-2.4835GHz |
Wireless Transmit Power (MAX) |
20dBm (MAX) |
Modulation Technology |
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM |
Receiver Sensitivity |
270M: -68dBm@10% PER 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER |
Hardware Specification | |
Interface |
4 10/100M Auto-Sensing RJ45 Port(Auto MDI/MDIX) 1 10/100M Auto-Sensing RJ45 Port(Auto MDI/MDIX) |
Antenna |
2dBi Omni Directional Antenna x 2 |
Power Supply Unit |
Input: Localized to Country of Sale Output: DC |
Operating temperature |
0°C~40°C (32°F~104°F) |
Storage temperature |
-40°C~70°C (-40°F~158°F) |
Relative humidity |
10% ~ 90%, Non Condensation |
Storage Humidity |
5%~95% Non-Condensing |
Dimensions |
130 x 90 x 25mm (without antenna) |
SL-R7202 300Mbps DDwrt wireless router:
SL-R7203 300Mbps Openwrt wireless router:
