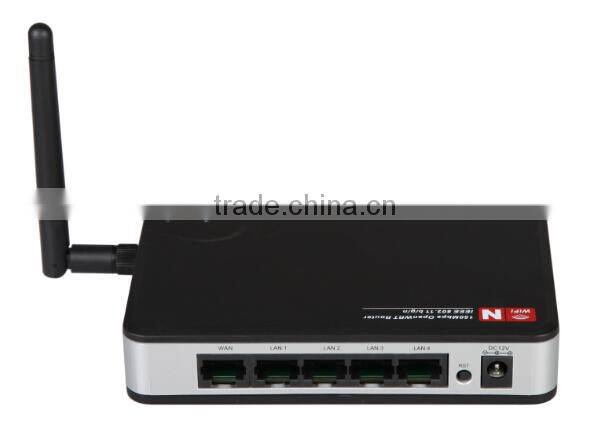

150Mbps wifi OPENWRT Router/300Mbps Openwrt wireless router

Standards

IEEE 802.11n(Draft 2.0), IEEE 802.11g, IEEE 802.11b

Wireless Signal Rates
With Automatic Fallback

11n: 270/243/216/162/108/81/54/27Mbps

        135/121.5/108/81/54/40.5/27/13.5Mbps

        130/117/104/78/52/39/26/13Mbps

        65/58.5/52/39/26/19.5/13/6.5Mbps

11g: 54/48/36/24/18/12/9/6M(dynamic)

11b: 11/5.5/2/1M(dynamic)

Frequency Range

2.4-2.4835GHz

Wireless Transmit Power (MAX)

20dBm (MAX)

Modulation Technology

DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM

Receiver Sensitivity

270M: -68dBm@10% PER,130M: -68dBm@10% PER

108M: -68dBm@10% PER,54M: -68dBm@0% PER

11M: -85dBm@8% PER,6M: -88dBm@10% PER

1M: -90dBm@8% PER

Hardware Specification

Interface

4 10/100M Auto-Sensing RJ45 Port(Auto MDI/MDIX)

1 10/100M Auto-Sensing RJ45 Port(Auto MDI/MDIX)

Antenna

2dBi Omni Directional Antenna x 2

Power Supply Unit

Input: Localized to Country of Sale

Output: DC

Operating temperature

0°C~40°C (32°F~104°F)

Storage temperature

-40°C~70°C (-40°F~158°F)

Relative humidity

10% ~ 90%, Non Condensation

Storage Humidity

5%~95% Non-Condensing

Dimensions

130 x 90 x 25mm (without antenna)
