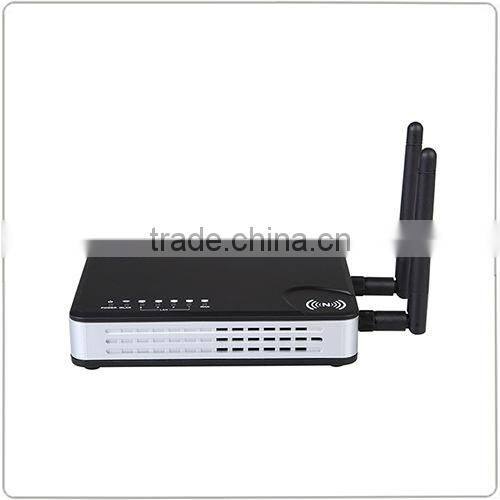

300Mbps Ralink RT3052 WiFi Router / Ralink RT3052 OpenWRT Router

Specifications

300Mbps Ralink RT3052 OpenWRT Router
8M Flash + 32M RAM
Ralink RT3052 Chipset
Double 2dBi antenna
Meet CE RoHS

Model :SL-R7203

300Mbps Ralink RT3052 WiFi Router / Ralink RT3052 OpenWRT Router



Description:

The OpenWrt is described as a Linux distribution for embedded devices. Instead of trying to create a single, static firmware, OpenWrt provides a fully writable file system with package management. This frees you from the application selection and configuration provided by the vendor and allows you to customize the device through the use of packages to suit any application. For developer, OpenWrt is the framework to build an application without having to build a complete firmware around it; for users this means the ability for full customization, to use the device in ways never envisioned.



 Features:

  Ralink RT3052 chipset

  8M Flash + 32M Ram

  4Lan Ports + 1Wan Port + 1USB Port

  300M Wireless Router with Extended Range

   Built-in 4-port 10/100M Switch

   Supports far-distance transmission, 150 meters indoor, 400 meters outdoor (depends on the environments   around)

   Supports remote/local Web management and TFTP upgradeSupports PPPoE, Dynamic IP, Static IP, L2TP,   BigPond

  Cable Internet Access, 802.1X, with 2dBi Detachable Antenna

  Supports WDS wireless network extension

  Supports DHCP server/client ,Built-in firewall for anti-attack

  Supports virtual server, DMZ host , SNTP

  Supports QoS function

  Provide 1WAN port + 4LAN ports +1USB port

  Openwrt Software Installed

 O

Specification:    Openwrt

Standards	IEEE 802.11n(Draft 2.0), IEEE 802.11g, IEEE 802.11b
Wireless Signal Rates With Automatic Fallback	11n: 270/243/216/162/108/81/54/27Mbps         135/121.5/108/81/54/40.5/27/13.5Mbps         130/117/104/78/52/39/26/13Mbps         65/58.5/52/39/26/19.5/13/6.5Mbps 11g: 54/48/36/24/18/12/9/6M(dynamic) 11b: 11/5.5/2/1M(dynamic)
Frequency Range	2.4-2.4835GHz
Wireless Transmit Power (MAX)	20dBm (MAX)
Modulation Technology	DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM
Receiver Sensitivity	270M: -68dBm@10% PER 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER
Hardware Specification
Interface	4 10/100M Auto-Sensing RJ45 Port(Auto MDI/MDIX) 1 10/100M Auto-Sensing RJ45 Port(Auto MDI/MDIX)
Antenna	2dBi Omni Directional Antenna x 2
Power Supply Unit	Input: Localized to Country of Sale Output: DC
Operating temperature	0°C~40°C (32°F~104°F)
Storage temperature	-40°C~70°C (-40°F~158°F)
Relative humidity	10% ~ 90%, Non Condensation
Storage Humidity	5%~95% Non-Condensing
Dimensions	130 x 90 x 25mm (without antenna)



Pictures: Openwrt    Openwrt     Openwrt     Openwrt

1)  Inteface



2)  Firewall

Packaging contains:

1*  OpenWRT WiFi Router

1*12V 0.5A Power supply
1* User Manual
2* 2dBi antenna
