portable wifi 3g router sim card (WD-R601U)
Model: WD-R601U
Discription:
This WiFi Mini Repeater supports 802.11 N wireless transmission standards, and is backward compatible with IEEE802.11 b/g standards. It supports data rate up to 300 Mbps. It is mainly used for providing free WiFi service in large area such as factory, community, street... etc.
Main Specification :
N Speed
Delivers up to150Mbpswireless speed, 4X faster than ordinary wireless G devices
Backward-Compatible
Small enough to put into your pocket and take on the road to share the Internet
Better Wireless Range
Deliver better wireless performance and faster file transfers based on 802.11n technology

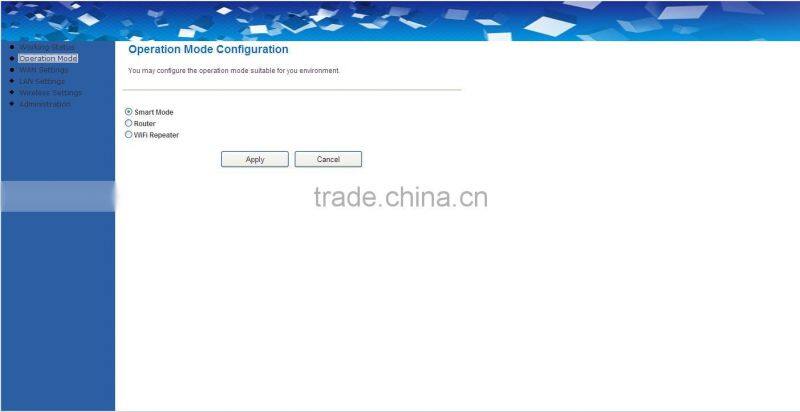

Multiple Operating Modes
SupportsAP,Repeater modes, Smart Mode to enable various wireless applications
Advanced Security
Secure your wireless network using advanced WPA/WPA2-PSK encryption
Easy Setup
Plug it into an electrical outlet, connect to your DSL or cable modem, an existing Ethernet network or a hotspot
Hardware Features
Standards IEEE 802.3/802.3u/802.3x
IEEE802.11b/g/n
Band 2.4GHz
Wireless Rate 150Mbps
Interface & Speed 1 x 10/100Mbps Auto-negotiation RJ45 WAN port (Auto MDI/MDIX)
Button Reset/WDS
Antenna Built-in PCBA
Power AC:100~240V;50/60Hz
3.3V 1.5A

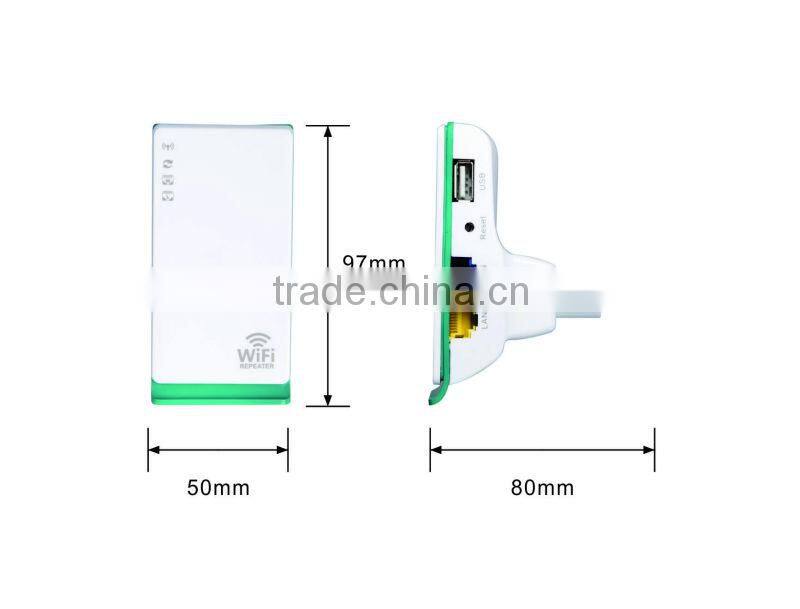

Dimensions (LxWxH,mm) 71*28 *81
Basic Features Channel 11 channels
Channel Width 20Mhz, 40Mhz
Transmit Power 11N:14dBm 11G:14dBm 11B:18dBm
Working Modes Router
Wireless Security WEP, WPA-PSK, and WPA2-PSK
Software Features
Internet Connection Type PPPoE, dynamic IP, static IP
DHCP DHCP Server
Security MAC address/URL/port based filters
Bandwidth Control WMM
DDNS DNS
Interface:
Others
Operating Enviroment Operating Temperature 0°C ~ 40°C
Storage Temperature -40oC ~ 70oC
Operating Humidity 10% ~ 90% RH non-condensing
Storage Humidity 5% ~ 90% RH non-condensing
Minimum System Requirement Computer with:
Internet Explorer 5.5 or Firefox 1.0 Higher
Wireless Network Adapter
Package Contents A5 150Mbps Travel Wireless Router (English Firmware)
English Quick Installation Guide (Send via email)
Certificates CE/FCC/RoHS
Contents:
1* 150Mbps Router
1* Quick Installation Guide

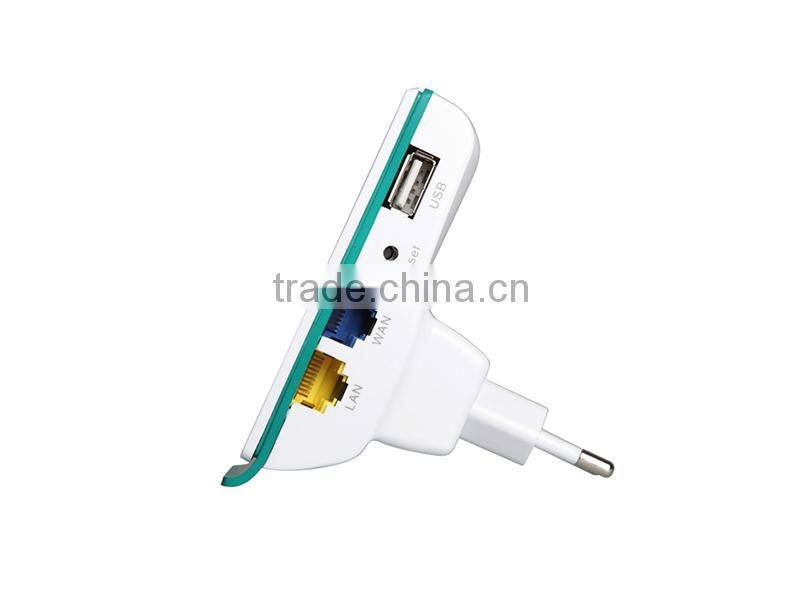

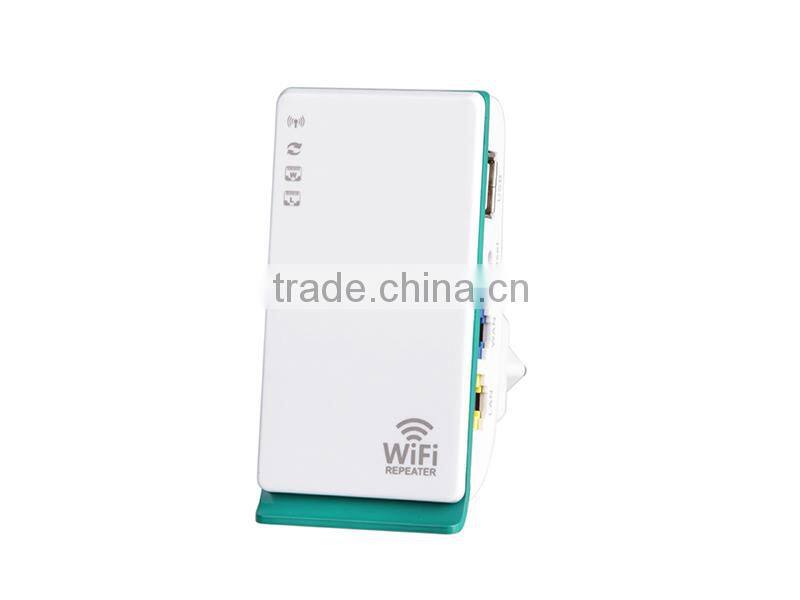

Pictures:
Recommendation:
Contact person: Lucian |Tel: 86 186 8052 7431 |skype: live:wifi2 |QQ:1771612431
