Specifications
Ralink 3070 chipsetHigh power wireless adapter
150Mbps peak throughtput
OEM support
Meet FCC RoHS certification
Mode: BT-N9200

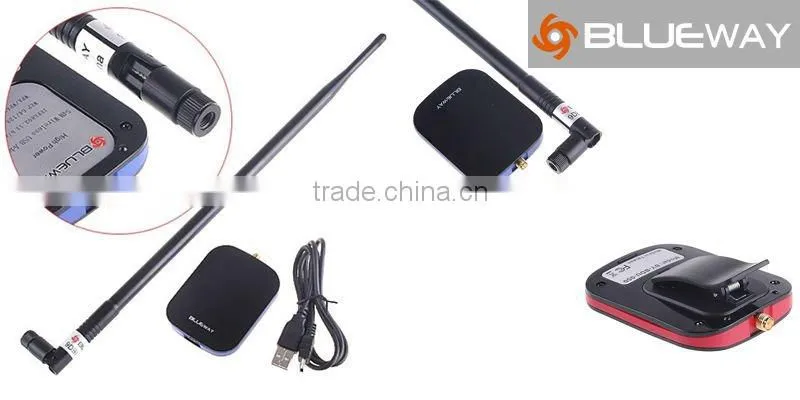

Blueway high power USB wireless adapter BT-N9200
Blu The Blueway BT-N9200 high power wireless usb adapters is comply with IEEE 802.11g and IEEE 802.11b standards, 150Mbps transmission rate Wireless Ethernet USB Adapter. The highest power can be 2000mW, can receive wireless signal from more than 1000 meters place.
It is with USB 2.0 interface, simple Configuration and monitoring on Win98SE/Me//2000/XP/Vista/7, Linux, Apple MAC OS X; the use of external SMA Connector detachable antenna, users can replace the antenna on demand to obtain a better signal.
Chipset: Ralink3070 ( 2000mW)
Up to 150Mbps high data-rate and 2000mW high output power
Can be Hot Swap
Supports 64/128/152-bit WEP, complies with 128 bit WPA standard(TKIP/AES)
Supports drivers for Win98SE/Me//2000/XP/Vista/7, Linux, Apple MAC OS X
Software Specification | |
|
IEEE 802.11n,IEEE 802.11g, IEEE 802.11b |
Wireless Speed |
11n: Up to 150Mbps 11g: Up to 54Mbps 11b: Up to 11Mbps |
Frequency Range |
2.4-2.4835GHz |
Wireless Transmit Power |
20dBm(MAX EIRP) |
Modulation Type |
OFDM/CCK/16-QAM/64-QAM |
|
Receiver Sensitivity (without Standards antenna) |
130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER |
Work Mode |
Ad-Hoc Infrastructure |
Wireless Security |
64/128 bits WEP WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES) |
Support Operating System |
Windows 2000/XP/Vista/Linux/ Win 7 |
Hardware Specification | |
Interface |
USB2.0 Hi-Speed connector |
Operating Temperature |
0oC~40oC (32oF~104oF) |
Storage Temperature |
-40oC~70oC (-40oF~158oF) |
Relative Humidity |
10% ~ 90%, non condensation |
Storage Humidity |
5%~90% non-condensing |
Dimensions |
Unit size: 39.5*13.5*4cm ( L*W*H) |

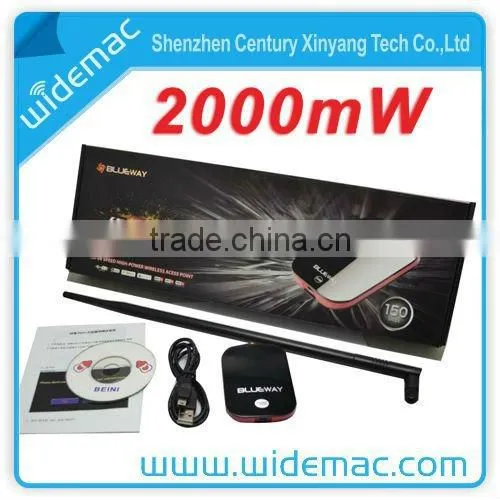

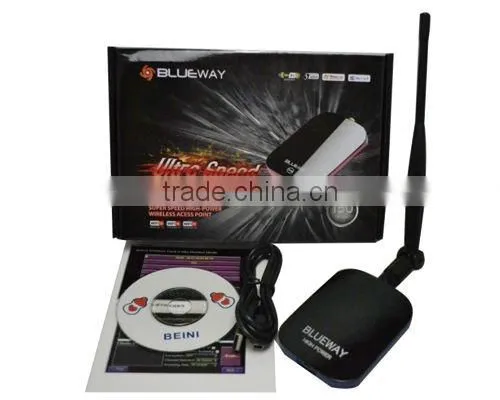

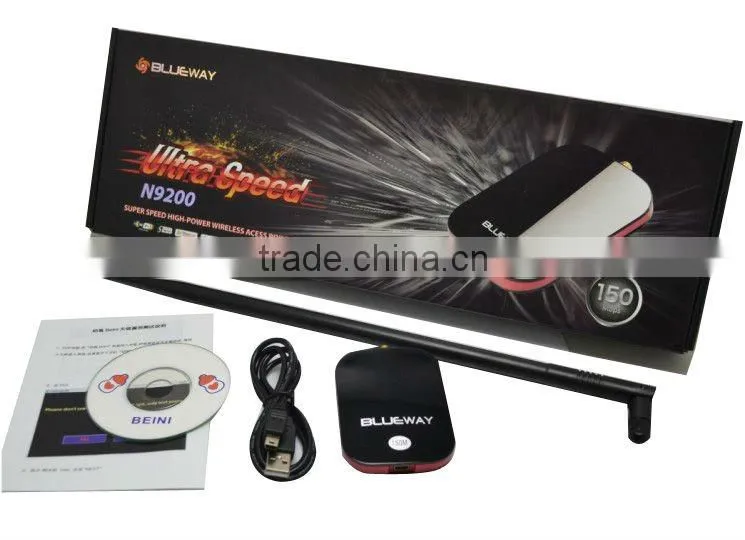

Package included:(what's in the package box)
1* High power USB wireless adapter
1* 80cm USB cable
1* 9dbi antenna
1* CD driver
1. Blueway BT-N9000 High Power USB Wireless Adapter With 5dBi antenna

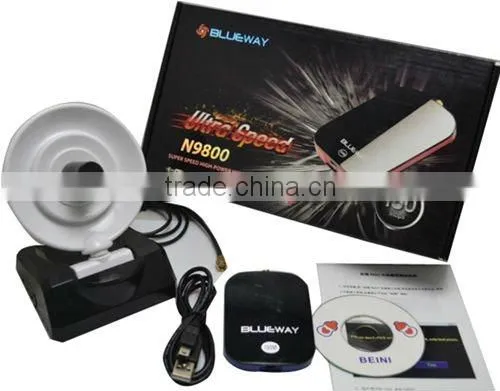

2. Blueway BT-N9800 High Power USB Wireless Adapter With 12dBi Radar Antenna
4. Blueway BT-N9500 High Power USB Wireless Adapter With 12dBi Antenna
We are LG, D-Link, Telecom of Russia, Telecom of India, Skyworth, China Netcom and China Telecom’s OEM supplier, and have our own brand WIDEMAC, SKYLINK, TIANHAO, BLUEWAY on the market.
