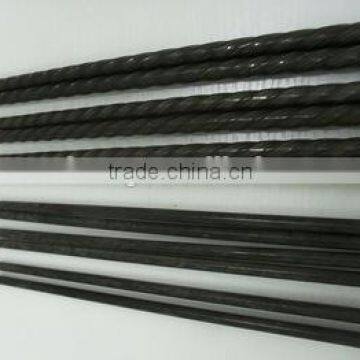

Assessed Supplier springs Low Relaxation steel target
This products is mainly used for prestressed and post-tensioning technology in various shapes of prestressed concrete structures. And widely use for engineering construction such as large scale railroad, high-way bridges, buildings trussed, overhead crane beams, industrial and prefabricated concrete floor, wall board, tubular pipes,nuclear powder plant, hydroelectric dam, PC water pipes, TV towers and nuclear power station etc.
| Size/mm | Tolerance/mm | Area/mm2 | Theoretical weight-g/m | Wire Cross-sectional Size | |||
| Basic-roundDia (D1)/mm | OutioneDia(D)/mm | Rib Width(jk)/mm | Lay Length (Lg)/mm | ||||
| 4 | ±0.04 | 12.57 | 98.6 | 3.85±0.05 | 4.25±0.05 | 0.90~1.30 | 24-30 |
| 4.8 | ±0.05 | 18.1 | 142 | 4.60±0.05 | 5.10±0.05 | 1.30~1.70 | 28-36 |
| 5 | 19.63 | 154 | 4.08±0.05 | 5.30±0.05 | 1.30~1.70 | 28-36 | |
| 6 | 28.27 | 222 | 5.80±0.05 | 6.30±0.05 | 1.60~2.00 | 30-38 | |
| 6.25 | 30.68 | 241 | 6.00±0.05 | 6.70±0.05 | 1.60~2.00 | 30-40 | |
| 7 | 38.48 | 302 | 6.73±0.05 | 7.46±0.10 | 1.80~2.20 | 35-45 | |
| 8 | ±0.06 | 50.26 | 394 | 7.75±0.05 | 8.45±0.10 | 2.00~2.40 | 40-50 |
| 9 | 63.62 | 499 | 8.75±0.05 | 9.45±0.05 | 2.10~2.70 | 42-52 | |
| 10 | 78.54 | 616 | 9.75±0.05 | 9.75±0.05 | 2.50~3.00 | 45-58 | |
2. Shipping: 14 days after received payment
1.We only accept qualified material,firslty we test the raw material when the wire rod arrived our factory and refused the unqualified steel wire rod.
2. When producing, we do about 2-3 times’ test to guarantee the finished pc steel wire is qualified
3. Customers come to our factory for testing the property of pc steel wire,or make SGS company,Interteck or other inspection company com for
inspecting the finished products.
Qingdao Ruisong wire rope Co.,Ltd is set up in March,2005 with an occupied area of 28036 square meters and a construction area of
16000 square meters. Its registered capital are RMB 40 million,and its fixed capital are RMB 220 million.There are 110 workers,20 of
them are project technicians and 12 of them with senior or middle technical post title,all of them are experienced in the production of
steel used in the concrete.
The company has been approved by ISO9001-2008 and received the license of industrial production issued by the country.The
company invested to importing whole set of production equipment and inspect instrument to produce specially steel wire steel line for
concrete applying the most advanced technology in the country,according to standard GB/T5223-2002,GB/T5224-2003 and
internationally popular standard ASTM A416.Its annual turnover of PC strand is about 100,000 tons and the turnover of PC steel is over
10,000 tons.
1.Professional,advanced equipment and strict quality control system to ensure our products with high quality.
2.Answer any questions about our products online within 24 hours.
3.Supply professional guidance and assistance in construction site by our engineer if necessary.
4. A plenty of exporting experience to promise you can receive cargoes smoothly
If you have any inquirues, please feel free to contact the below:
Whatsapp: +8615610052187
Skype: wei.trista
Our website:
