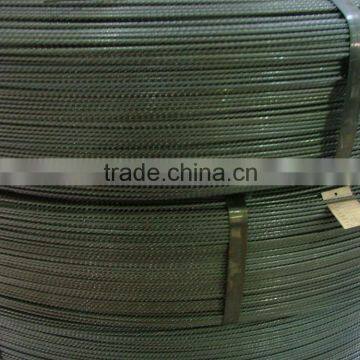

Prime Quality metal spiral binding wire from China with competitive price
We professionally produce good quality and stable property PC plain steel wire and PC spiral steel wire like follows:
(1) Standard: GB/T5223-2014, ASTM A421, EN10138, BS5896,JISG3536, AS/NZS4672, NBR-7483
(2) Raw Material: SWRH 77B, 82B high carbon steel wire rod
(3) Stress-relieved high-tensile-strength and low-relaxation prestressed concrete wire
(4) Surface of PC Wire: Plain, Spiral(ribbed), Indented
(5) 25-27 tons/20' container, according to customer's requirements
(6) We have been approved by ISO9001:2000 SGS
(7) Application: Used for prestressed concrete railway sleeper,large-span bridges , large-scale cement water pipe,coal mines, telegraph pole, overhead crane beam, rock-soil anchoring project,etc.
1.Diameter : 4 -10MM
2.Surface : plain, spiral ,indented, helix ,screw
3.Material: High carton steel wire 77B, 82B
4.Tensile strength (TS) : 1470 1570 1670 1770 1860Mpa
5.Technical Specification :high tensile strength ,low relaxation
6.Standard : GB/T5224(China)ASTMA421(USA);BS 896(UN);
JIS G3536(Japan);AS/NZS4672(Australia);NBR-7483(Brazil);
EN10138(Europe);ISO934
7.Type : PC strand, 7 wire pc strand ,Prestresses concrete steel strand, Unboned pc strand, PE coated PC strand, PC wire , Spiral pc wire ,Plain pc wire ,indented pc wire
8. Cerfificate : ISO9001:2000 SGS, China National Construction Steel Qulity Supervision and Test Centre Product Quality Supervision and Inspection Center, Ministry of Railways Railway Construction Inspection Station
prestressed wire Technical Standard
Nominal Diameter |
Tolerance |
Grade |
Norminal |
Norminal |
Minimum |
Minimum |
Minimum |
Minimum |
Maximum 1000 HR |
||
60% |
70% |
80% |
|||||||||
4.00 |
±0.04 |
1770 |
12.57 |
98.6 |
22.2 |
19.6 |
|
3(3) |
1.0 |
2.5 |
4.5 |
4.00 |
1860 |
23.4 |
20.6 |
3(3) |
|||||||
5.00 |
±0.05 |
1670 |
19.63 |
154.0 |
32.8 |
28.9 |
3(3) |
||||
5.00 |
1770 |
34.7 |
30.6 |
4(3) |
|||||||
6.00 |
±0.05 |
1670 |
28.27 |
222.0 |
47.2 |
41.6 |
4(3) |
||||
6.00 |
1770 |
50.0 |
44.1 |
4(3) |
|||||||
6.25 |
±0.05 |
1670 |
30.68 |
241.0 |
51.2 |
45.1 |
4(3) |
||||
6.25 |
1770 |
54.3 |
47.9 |
4(3) |
|||||||
7.00 |
±0.06 |
1670 |
38.48 |
320.0 |
64.3 |
49.6 |
4(3) |
||||
8.00 |
±0.06 |
1570 |
50.28 |
394.0 |
78.9 |
69.4 |
4(3) |
||||
9.00 |
±0.06 |
1470 |
63.62 |
498.0 |
93.5 |
82.1 |
4(3) |
||||
a. In container
b. Packed in coil (1Ton -3 Ton)or as your requirement
c. Each coil is strapped by steel strips, fully strapped with anti-rust plastic & P.P woven sheet.
d. We are responsible for damages of goods resulting from defect of packing and rusty.
