Home > Products > Spring Wire > Shandong 77B post tension concrete spring wire
Shandong 77B post tension concrete spring wire
- 60000 Ton / Tons per Month
- Qingdao
- T/T D/P D/A
You May Like
-
Manufacturer prestressed mild hot sale spring wire
-
China high carbon cold drawn mattress accessories wire spring clip
-
82B high tensionned low price wire spring clip
-
BS 5896 mattress accessories wire spring clip
-
Hot sale 4.0mm to 10.0mm high tensionned wire spring clip
-
ISO standard mattress accessories steel wire spring
Product Details
Steel Grade | 77B/82B | Standard | AISI, ASTM, BS, DIN, GB, JIS | |
Wire Gauge | 3.0mm ~ 9.0mm | Place of Origin | Shandong, China | |
Type | Drawn Wire | Application | Construction | |
Alloy Or Not | Non-alloy | Special Use | Cold Heading Steel | |
Model Number | Spiral wire | Brand Name | Ruisong |
Product Description

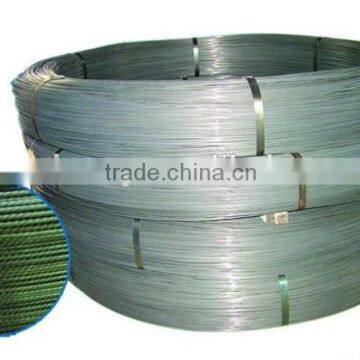

Shandong 77B post tension concrete spring wire
This product is mainly used for prestressed and post-tensioning technology in various shapes of prestressed concrete structures. And widely used for engineering construction such as large scale railroad, high-way bridges, buildings trussed, overhead crane beams, industrial and prefabricated concrete floor, wall board, tubular pipes,nuclear powder plant, hydroelectric dam, PC water pipes, TV towers and nuclear power station etc.
Size/mm | Tolerance/mm | Area/mm2 | Theoretical weight-g/m | Wire Cross-sectional Size | |||
Basic-roundDia (D1)/mm | OutioneDia(D)/mm | Rib Width(jk)/mm | Lay Length (Lg)/mm | ||||
4 | ±0.04 | 12.57 | 98.6 | 3.85±0.05 | 4.25±0.05 | 0.90~1.30 | 24-30 |
4.8 | ±0.05 | 18.1 | 142 | 4.60±0.05 | 5.10±0.05 | 1.30~1.70 | 28-36 |
5 | 19.63 | 154 | 4.08±0.05 | 5.30±0.05 | 1.30~1.70 | 28-36 | |
6 | 28.27 | 222 | 5.80±0.05 | 6.30±0.05 | 1.60~2.00 | 30-38 | |
6.25 | 30.68 | 241 | 6.00±0.05 | 6.70±0.05 | 1.60~2.00 | 30-40 | |
7 | 38.48 | 302 | 6.73±0.05 | 7.46±0.10 | 1.80~2.20 | 35-45 | |
8 | ±0.06 | 50.26 | 394 | 7.75±0.05 | 8.45±0.10 | 2.00~2.40 | 40-50 |
9 | 63.62 | 499 | 8.75±0.05 | 9.45±0.05 | 2.10~2.70 | 42-52 | |
10 | 78.54 | 616 | 9.75±0.05 | 9.75±0.05 | 2.50~3.00 | 45-58 |
Qingdao Ruisong wire rope Co.,Ltd is set up in March,2005 with an occupied area of 28036 square meters and a construction area of 16000 square meters. Its registered capital are RMB 40 million,and its fixed capital are RMB 220 million.There are 110 workers,20 of them are project
technicians and 12 of them with senior or middle technical post title,all of them are experienced in the production of steel used in the concrete.
The company has been approved by ISO9001-2008 and received the license of industrial production issued by the country.The company invested to importing whole set of production equipment and inspect instrument to produce specially steel wire steel line for concrete applying the most advanced technology in the country,according to standard GB/T5223-2002,GB/T5224-2003 and internationally popular standard ASTM A416.Its annual turnover of PC strand is about 100,000 tons and the turnover of PC steel is over 10,000 tons.
1.We only accept qualified material,firslty we test the raw material when the wire rod arrived our factory and refused the unqualified steel wire rod.
2. When producing, we do about 2-3 times’ test to guarantee the finished pc steel wire is qualified
3. Customers come to our factory for testing the property of pc steel wire,or make SGS company,Interteck or other inspection company for
inspecting the finished products.
In coil (customized is accepted)
1.Professional,advanced equipment and strict quality control system to ensure our products with high quality.
2.Answer any questions about our products online within 24 hours.
3.Supply professional guidance and assistance in construction site by our engineer if necessary.
4. A plenty of exporting experience to promise you can receive cargoes smoothly
