[manufacturer] PC spiral wire

FOB Price

USD $460 - $550 / Ton

100 Tons(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China		Brand Name	ruisong
Model Number	4.00,4.80,5.00,6.00,6.25,7.00,7.50,8.00,9.00mm		Material	Steel

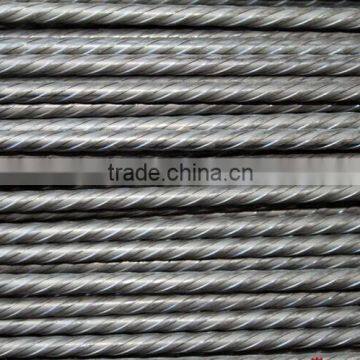

PC Wire------PC Spiral Wire:

(1) Standard: GB/T5223-2014, ASTM A421, EN10138, BS5896,JISG3536, AS/NZS4672, NBR-7483

(2) Raw Material: SWRH 77B, 82B high carbon steel wire rod

(3) Stress-relieved high-tensile-strength and low-relaxation prestressed concrete wire

(4) Surface of PC Wire: Plain, Spiral, Intented

(5) 25-27 tons/20' container, according to customer's requirements

(6) Application: Used for prestressed concrete railway sleeper,large-span bridges , large-scale cement water pipe,

coal mines, telegraph pole, overhead crane beam, rock-soil anchoring project,etc.

PC Spiral WireTechnical Specifications(A):

PC Spiral WireTechnical Specifications(B):

Nominal diameter mm	Tensile strength Grade MPa	Minimum breaking strength kN ≥	0.2% yield strength kN ≥	Elongation % ≥	Repeated bending		Relaxation
Nominal diameter mm	Tensile strength Grade MPa	Minimum breaking strength kN ≥	0.2% yield strength kN ≥	Elongation % ≥	Bending frequency times/180° ≥	Bending radius	Initial load/ max actual load %	Relaxation rate 1000h % ≤
4.00	1570	19.73	17.37	3.5	3	10	70 80	2.5 4.5
4.80		28.41	25.00		4	15
5.00		30.82	27.12		4	15
6.00		44.38	39.06		4	15
6.25		48.17	42.39		4	20
7.00		60.41	53.16		4	20
7.50		69.36	61.04		4	20
8.00		78.91	69.44		4	20
9.00		99.88	87.89		4	25
4.00	1670	20.99	18.47		3	10
5.00		32.78	28.85		4	15
6.00		47.21	41.54		4	15
6.25		51.24	45.09		4	20
7.00		64.26	56.55		4	20
7.50		73.78	64.93		4	20
8.00		83.93	73.86		4	20
9.00		106.25	93.50		4	25
