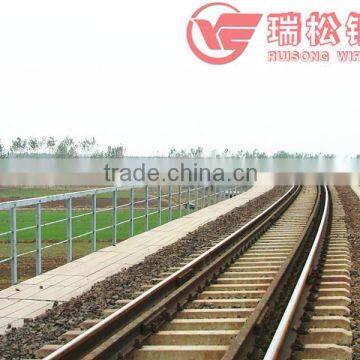

prestressed concrete pc wire for high-way speed railway sleeper
Ⅰ. Why choose us?
1) Authorized Certificates : ISO9001, TUV,BV.
2) Day Capacity: 400tons per day.
3) 10 years production experience.
4) Customize base on your specification.
5) Quality control: Advanced production line, necessary facility and examination equipment.
6) exporting to more than 40 countries.
II. Prestressed pc steel wire high tensile spiral pc wire Quick Details:
Size: 4-10MM.
Tensile Strength: 1470-1860mpa.
Elongation at max load:= <3.5
Coil Weight: 800-1500Kgs
Application: Bridges of large-scale railroads and highways, frame of roofs, overhead cran beams,industrial and civil prefabricated concrete slabs, wall boards, tubular piles, PC water pies, TV towers and nuclear power stations, etc.
Ⅲ. prestressed pc steel wire high tensile spiral pc wire Dimension Parameters:
Size/mm | Tolerance/mm | Area/mm2 | Theoretical weight-g/m | Wire Cross-sectional Size | Rib Pieces | Lay Length (Lg)/mm
| ||
Basic-roundDia (D1)/mm | OutioneDia(D)/mm | Rib Width(jk)/mm |
4 | |||||
4.00 | ±0.04 | 12.57 | 98.6 | 3.85±0.05 | 4.25±0.05 | 0.90~1.30 | 24-30 | |
4.80 | ±0.05 | 18.10 | 142 | 4.60±0.05 | 5.10±0.05 | 1.30~1.70 | 28-36 | |
5.00 | 19.63 | 154 | 4.08±0.05 | 5.30±0.05 | 1.30~1.70 | 28-36 | ||
6.00 | 28.27 | 222 | 5.80±0.05 | 6.30±0.05 | 1.60~2.00 | 30-38 | ||
6.25 | 30.68 | 241 | 6.00±0.05 | 6.70±0.05 | 1.60~2.00 | 30-40 | ||
7.00 | 38.48 | 302 | 6.73±0.05 | 7.46±0.10 | 1.80~2.20 | 35-45 | ||
8.00 | ±0.06 | 50.26 | 394 | 7.75±0.05 | 8.45±0.10 | 2.00~2.40 | 40-50 | |
9.00 | 63.62 | 499 | 8.75±0.05 | 9.45±0.05 | 2.10~2.70 | 42-52 | ||
10.00 | 78.54 | 616 | 9.75±0.05 | 9.75±0.05 | 2.50~3.00 | 45-58 | ||
Spiral PC Wire Main market:
Our Advantage:
Factory Directly Exported.
The best payment condition & Short Delivery Time.
2rd years gold supplier in Alibaba.
We export pc strand, pc wire to 40 countries and regions in the last years. We also believe we can make a better achievement in future, and this need join in, pls feel free contact me.
FAQ:
1, Q: What's the Payment method?
-A: 100% Irrevocable documentary L/C at sight; or 30% deposit in advance and the balance against copy B/L within 3 days.
2, Q: What's the Delivery port?
-A: Our factory located in Qingdao, our main port is Qingdao port. But we also can export from any port of China if you have special request.
3, Q: What's the delivery time?
-A: 15-30 working days upon receipt of advance deposit.
STEEL WIRE (PC WIRE) FOR PRESTRESSED CONCRETE
This products is mainly used for prestressed and post-tensioning technology in various shapes of prestressed concrete structures. And widely use for civil engineering construction such as large scale railroad, high-way bridges, buildings trussed, overhead crane beams, industrial and prefabricated concrete floor, wall board, tubular pipes, PC water pipes, TV towers and nuclear power station etc.
Active standard:GB/T5223, ASTM A421, BS5896, JIS G3536, ISO6934, EN10138 or other special required standards.
GB/T5223-2002 Technical standards for PC Wire.
Nominal Dia. (d /mm)
|
Tolerance (mm) |
Tensile strength à /MPa Not less than
|
Yield Strength (Ã /MPa) Not less than
|
Elongation at max load (Lo=200mm) ´ /% Not less than |
Bending Times Not less than |
Bending Radius R/mm |
Relaxation Propertied |
| ||||
The relaxation at 1000 h (Initial load to 70% of nominal tensile strength) (r/%) Not less than |
| |||||||||||
4.8 |
±0.05 | 1470 1570 1670 1770 1860 | 1290 1380 1470 1560 1640 |
|
4 |
15 |
2.0 | |||||
5.0 | ||||||||||||
6.0 |
±0.05 | 1470 1570 1670 1770 | 1290 1380 1470 1560 | 3.5 |
4 |
15 | ||||||
6.25 | ||||||||||||
7.0 | 20 | |||||||||||
8.0 | ±0.06 | 1470 1570 | 1290 1380 | 4 | 20 | |||||||
9.0 | 25 | |||||||||||
Nominal Dia. (d /mm)
| No. of Helix rib | Lining Dia. and Tolerance (mm) | Outline Dia. and Tolerance (mm) | Width of Single rib (±/mm) | Layer length (c/mm) |
Nominal cross section S /mm²
| Re. mass per meter (g/m) | ||
4.00 |
4 | 3.85±0.05 | 4.25±0.05 | 0.90~1.30 | 24~30 | 12.57 | 98.6 | ||
4.80 | 4.60±0.05 | 5.10±0.05 | 1.30~1.70 | 28~36 | 18.09 | 142 | |||
5.00 | 4.80±0.05 | 5.30±0.05 | |||||||
6.00 | 5.80±0.05 | 6.30±0.05 | 1.60~2.00 | 30~38 | 28.27 | 222 | |||
6.25 | 6.0±0.05 | 6.70±0.05 | 30~40 | 30.68 | 241 | ||||
7.00 | 6.73±0.05 | 7.46±0.10 | 1.80~2.20 | 35~45 | 38.48 | 302 |
