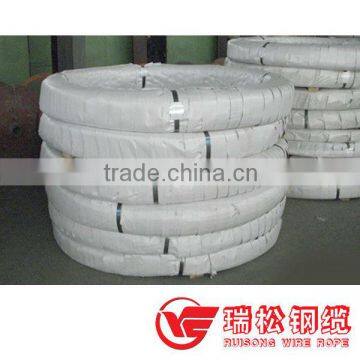

4.8mm steel pc wire for railway sleeper used
- 60000 Ton / Tons per Month
- Qingdao
- T/T
Product Details
| Steel Grade: | steel | Standard: | AISI, ASTM, BS, DIN, GB, JIS | Wire Gauge: | 4.00-13.00mm |
| Place of Origin: | Shandong, China | Type: | Drawn Wire | Application: | Construction |
| Alloy Or Not: | Non-alloy | Special Use: | Cold Heading Steel | Model Number: | spiral ribs |
| Brand Name: | Ruisong |
Product Description
4.8mm steel pc wire for railway sleeper used
Ⅰ. Why choose us?
1) Authorized Certificates : ISO9001, SGS,BV.
2) Day Capacity: 200tons per day.
3) 22 years production experience.
4) Customize base on your specification.
5) Quality control: Advanced production line, necessary facility and examination equipment.
6) exporting to more than 40 countries.
II. prestressed steel wire 4mm high carbon steel wire Quick details:
Size: 4-10MM.
Tensile Strength: 1470-1860mpa.
Elongation at max load: <=3.5
Coil Weight: 800-1500Kgs
Application: Bridges of large-scale railroads and highways, frame of roofs, overhead cran beams,industrial and civil prefabricated concrete slabs, wall boards, tubular piles, PC water pies, TV towers and nuclear power stations, etc.
Ⅲ. High carbon steel wire 4mm Dimension Parameters:
Size/mm | Tolerance/mm | Area/mm2 | Theoretical weight-g/m | Wire Cross-sectional Size | Rib Pieces | Lay Length (Lg)/mm
| ||
Basic-roundDia (D1)/mm | OutioneDia(D)/mm | Rib Width(jk)/mm |
4 | |||||
4.00 | ±0.04 | 12.57 | 98.6 | 3.85±0.05 | 4.25±0.05 | 0.90~1.30 | 24-30 | |
4.80 | ±0.05 | 18.10 | 142 | 4.60±0.05 | 5.10±0.05 | 1.30~1.70 | 28-36 | |
5.00 | 19.63 | 154 | 4.08±0.05 | 5.30±0.05 | 1.30~1.70 | 28-36 | ||
6.00 | 28.27 | 222 | 5.80±0.05 | 6.30±0.05 | 1.60~2.00 | 30-38 | ||
6.25 | 30.68 | 241 | 6.00±0.05 | 6.70±0.05 | 1.60~2.00 | 30-40 | ||
7.00 | 38.48 | 302 | 6.73±0.05 | 7.46±0.10 | 1.80~2.20 | 35-45 | ||
8.00 | ±0.06 | 50.26 | 394 | 7.75±0.05 | 8.45±0.10 | 2.00~2.40 | 40-50 | |
9.00 | 63.62 | 499 | 8.75±0.05 | 9.45±0.05 | 2.10~2.70 | 42-52 | ||
10.00 | 78.54 | 616 | 9.75±0.05 | 9.75±0.05 | 2.50~3.00 | 45-58 | ||
Ⅰ
2.50~3.00 | 45-58 |
