high tensile 7 wire prestressed steel pc strand
- Qingdao
- T/T
You May Like
Product Details
| Steel Grade | steel | Standard | AISI, ASTM, BS, DIN, GB, JIS | |
| Wire Gauge | 12.7--15.7mm | Place of Origin | Shandong, China | |
| Type | Drawn Wire | Application | Construction | |
| Alloy Or Not | Non-alloy | Special Use | Cold Heading Steel | |
| Model Number | 1x7 | Brand Name | Ruisong |
Product Description
high tensile 7 wire prestressed steel pc strand
1. Technical Specification: (prestressed wire strand)
Specification | Tensile Strength | Section Area | Grease Masspermeter | Minum Thickness of Coat | Friction Factor | Effect Moduius | Masspermeter |
(Mpa) | (mm)2 | (g/m) | (mm) | (u) | (k) | (kg/m) | |
1x7 Dia12.70 | 1720 | 98.7 | 43 | 1 | 0.04-0.1 | 0.003-0.004 | 0.875 |
1860 | |||||||
1960 | |||||||
1x7 Dia15.20 | 1570 | 140 | 50 | 1.21 | |||
1670 | |||||||
1770 | |||||||
1860 | |||||||
1960 | |||||||
1x7 Dia15.24 | 1860 | 140 | 50 | ||||
1x7 Dia15.70 | 1860 | 150 | 53 | 1.3 |
2.Raw Material: (prestressed wire strand)
82B,77B High Carbon Steel Wire Rod SWRH 82B, 77B
3.Technology: (prestressed wire strand)
Continued drawing with large deduction stranding then stabilizing treatment.
4.Characteristics: (prestressed wire strand)
High rate of yield strength and ultimate strength, Low relaxation ,steady modulus of elasticity, stress relieved, high fixed with concrete.
5.Application: (prestressed wire strand)

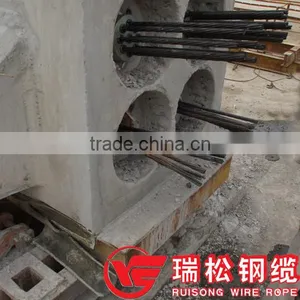

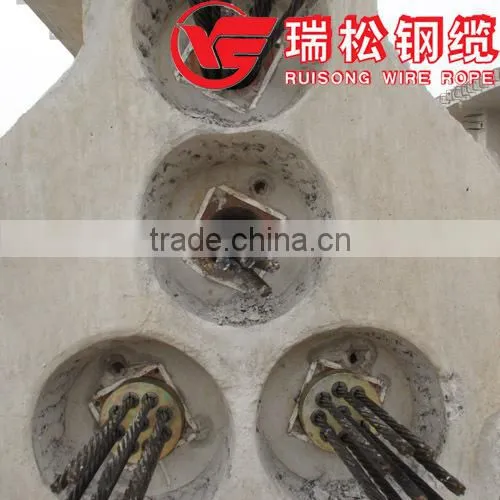

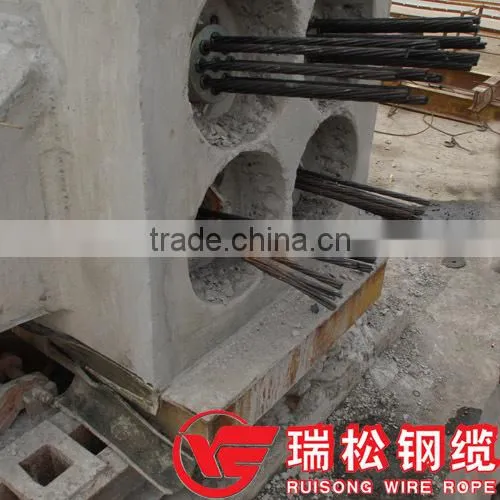

For highways, bridge, building, key water control project, anchorange fabrics rising pulled componet part, nuclear power plant, etc.
6.Packing: (prestressed wire strand)

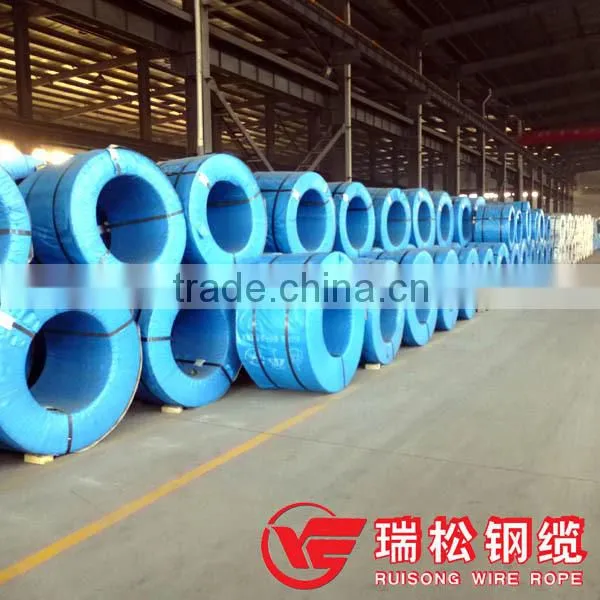

Wooden reel packing, coil packing, also can be pallet or as your requirements.
