[manufacturer] Cold Drawn Wire

Name: [manufacturer] Cold Drawn Wire
Brand: ruisong
SKU: 124998215
Availability: InStock

US$ 450 - 550 MOQ: 100 Tons

Key Specifications

Steel Grade:

82B

Standard:

AISI, ASTM, BS, DIN, GB, JIS

Wire Gauge:

4.00,5.00,6.00,7.00,8.00mm

Qingdao Ruisong Wire Rope Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao port Huangdao port

Delivery Detail:

Delivery time depends on order quantity.

Steel Grade 82B

Standard AISI, ASTM, BS, DIN, GB, JIS

Wire Gauge 4.00,5.00,6.00,7.00,8.00mm

Place of Origin Shandong, China

Application Construction

Alloy Or Not Non-alloy

Model Number 4.00---8.00mm cold drawn

Brand Name ruisong

Cold drawn steel wire specification:

Standard	GB4357,DIN17223,JIS G 3521
Material	High carbon 82B, 77B
Diameter	1.5mm---12.5mm
Technique	Cold drawn
Surface	Smooth,not alloy
Price Term	FOB, CFR, CIF

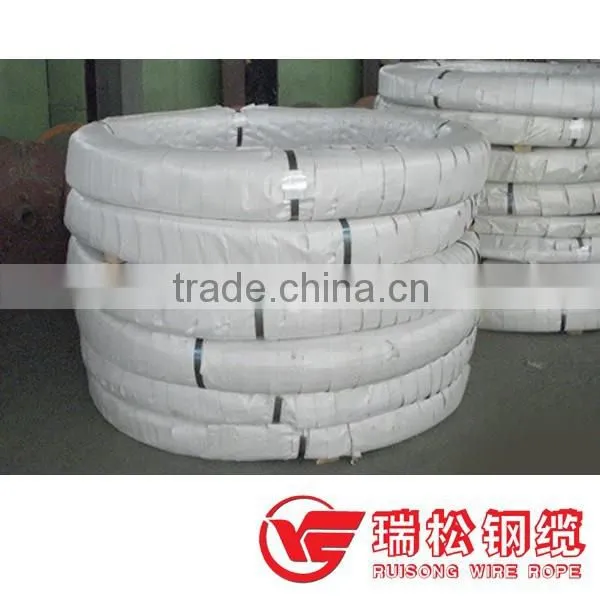

Package	Standard export packing. In coils, water-proof cloth. Or according to customer's needs.
Delivery Time	10 days after receiving the L/C or prepaid
Shipment	Load about 20 tons in one 20' container. Or according to customer's requirements.
Port of Loading	Qingdao,China
Origin	Qingdao, China
Application	Mattress, screen mesh, spring, pipe wire, etc.

PCCP Wire:

(1) Standard: GB/T5223-2014 and other national standards

(2) Raw Material: SWRH 77B, 82B high carbon steel wire rod

(3) High strength, good plasticity, smooth cold drawn steel wire

(4) 25-27 tons/20' container, according to customer's requirements

(5) Application: Main Used for PCCP, prestressed concrete cylinder pipe, pressure piping

PCCP WireTechnical Specifications:

Nominal diameter mm	Tensile strength Grade MPa	Minimum breaking strength kN ≥	0.2% yield strength kN ≥	Torsion times/ 210mm torque ≥	Reduction of section area %≥	Hydrogen embrittlement	Relaxation
Nominal diameter mm	Tensile strength Grade MPa	Minimum breaking strength kN ≥	0.2% yield strength kN ≥	Torsion times/ 210mm torque ≥	Reduction of section area %≥	Load is 70% max strength Fracture time h≥	Initial load is 70% max strength Relaxation rate 1000h %≤
4.00	1570	19.73	14.80	10	35	75	7.5
5.00		30.82	23.11	10	35
6.00		44.38	33.29	8	30
7.00		60.41	45.31	8	30
8.00		78.91	59.18	7	30
4.00	1670	20.99	15.74	10	35
5.00		32.78	24.59	10	35
6.00		47.21	35.41	8	30
7.00		64.26	48.20	8	30
8.00		83.93	62.95	6	30
