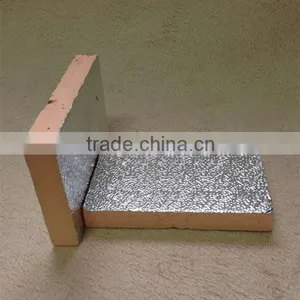

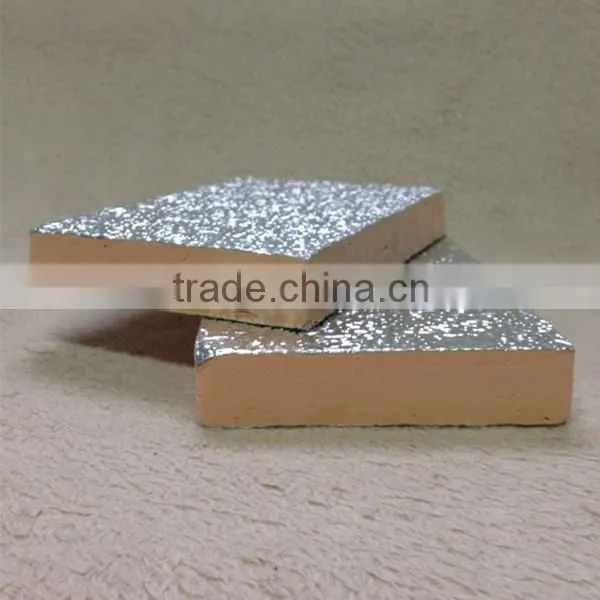

Aluminum foil phenolic foam air duct panel

Item

Aluminum foil phenolic foam air duct panel

Material

modified phenolic foam

Specification

1.     Thickness: 20mm – 100mm

2.     Width:600mm–1200mm

3.     Length:1000mm–6000mm

4.     Compressive Strength:vertical direction 110kPa(35kg/m³ ),horizontal direction 175kPa (35kg/m³ ),

5.     Flame Retardant:B1

Technical Data

Density

60-75kg/m³

Thermal conductivity

0.023-0.034W(m.k)

Compression strength

0.2-0.45Mpa

Bending strength

1.2-1.44Mpa

Dimensional Stability

≤1.5%

Water absorption

≤3%(v/v)

[SDR]Smokedensity rating

≤1

Working temperature

-50°C-125°C

Flame rating

GB8624-1997:Grade A

GB8624-2006:Grade B-s1,d0,t1

Formaldehyde emission

≤1.5ml/L

Maximum allowable wind speed

15M/S

Leakage volume,pressure and deformation

Qualified

Acid and alkali resistance

Soak at roomtemperature,no change

Anti-fungal

No plate

10 advantage of phenolic plastic insulation board

1. The brand GUIBAO is trustworthy
2. Professional research and development team focus on developing new products
3. Fireproofing level B1,safe and reliable
4. Less smoke,non-toxic,energy saving and environment protection
5. Large temperature resistance scale,good stability
6. Low coefficient heat conductivity,strong thermal insulation property
7. Widely applied,effectively matched
8. Strong sound absorption
9. Simple and easy for construction,saving the construction time
10. Quality after-sale services make consumers free of worry
