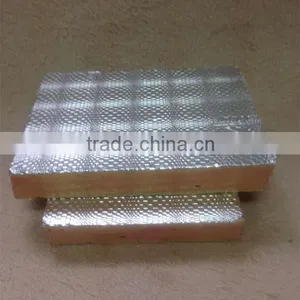

20mm Thickness Aluminum Foil Foam Duct Panel
Phenolic foam Insulation Board the only material that can provide this unique range of benefits and is used in a variety of applications: HVAC Ducting, Building and Construction(roofing,cavity board, external wall board,plasterboard dry lining systems,wall insulation, floor insulation and as a sarking board),Factory Engineered Composite Panels, fire doors, highly fire resistant panels.
Phenolic foam is a very versatile material suitable for a large range of applications where thermal performance, moisture resistance, fire performance and in certain cases structural strength are key performance criteria.
| Thickness | 20-100mm |
| Standard Width | 600/1200mm |
| Length | Any length |
| Foam Density | 45-60kg/m3 |
| Thermal Conductivity | 0.02W/m.K |
| Water Absorption(% by volume) | 0.2 |
| Compressive Strength | 137.7psi |
| Tensile Strength | 61.4psi |
| Dimension Change | 0.3 |
| CFCs and HCFCS | Free |
Greenfoam Phenolic Foam Insulation Board comprises premium performance rigid phenolic foam faced on both sides or one side with aluminum foil,glass tissue,kraft paper, or no facing,etc.
Applications:
1) Used in HVAC system as air duct insulation board or Pre-insulated Duct Board
2) Used in process/petrochemical applications for the insulation of pipework, tanks, vessel
3) Used in roofing, cavity board, external wall board, plasterboard dry lining systems, wall insulation, floor insulation and as a sarking board
4) Specialised applications including fire doors, highly fire resistant panels and for insulation in surface ships, off-shore installations and submarines.
