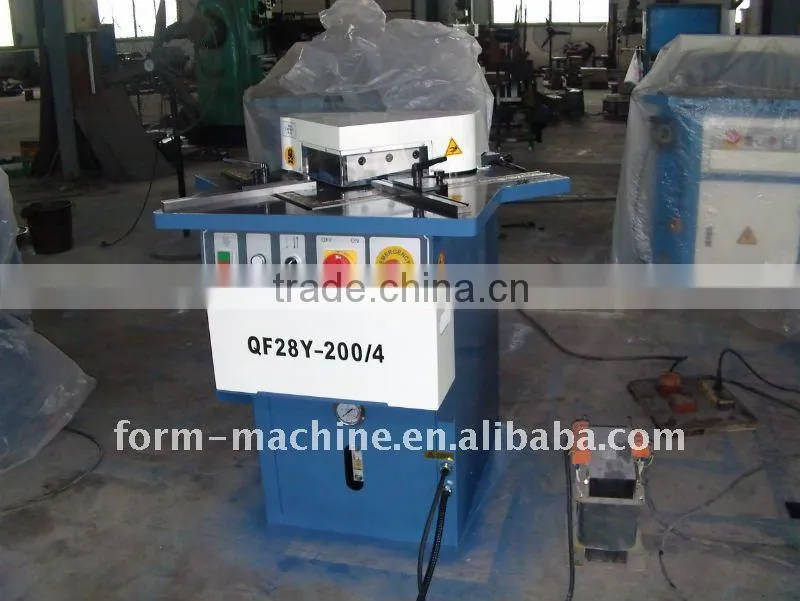

Discount promotional hydraulic angle notching machine
FEATURES:

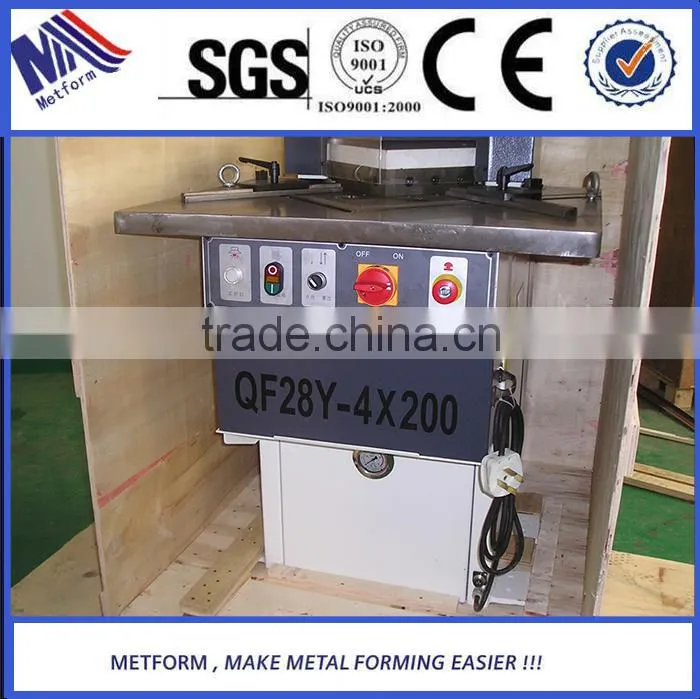

- If you are looking for a little more capacity from your corner notcher, try Metform QF28Y-6*200 sheet metal corner notcher fromMetform Machinery. Metform QF28Y-6*200 is the great for making perfect corners in metal that are impossible with hand tools. This corner notcher has a 6mm or 4 gauge mild steel capacity, so it can make quick work of most any job. Metform QF28Y-4*200 corner notcher has blades that are fixed at 90°, ensuring a perfect notch every time. A 31.4” x 25.5” oversized working table includes table guides, for even more accuracy.
- Metform QF28Y-6*200 sheet metal notcher has 7.8” long blades that can be flipped and resharpened many times for even more life and cost savings. The blades are also negatively raked to pull the material to the stops during the cut, for the most accuracy available. Metform QF28Y-6*200 sheet metal notcher comes with a powerful 220V 3 phase motor for years of notching and with a operator controlled foot pedal controls the QF28Y-6*200 is capable of 15 strokes per minute.
- MADE IN CHINA
- We offer a complete line of Angle notching machine
- The machine is delivered completely assembled.

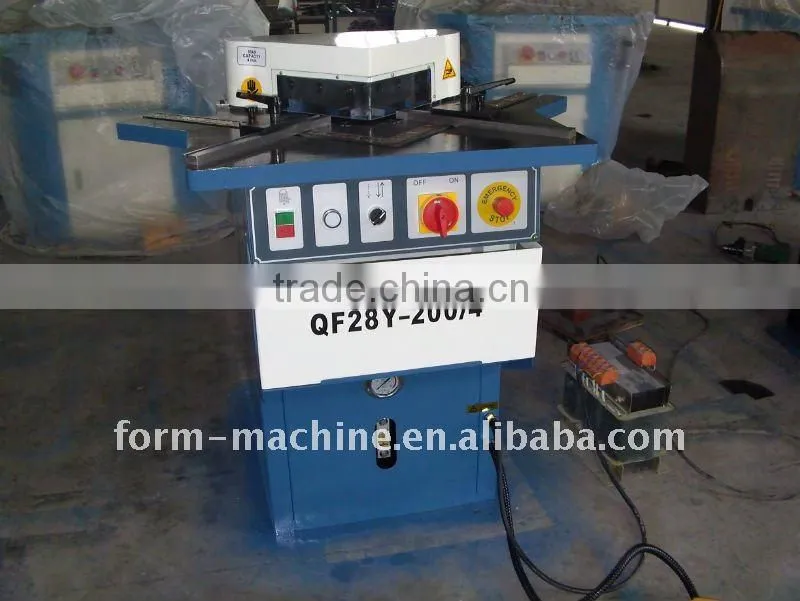

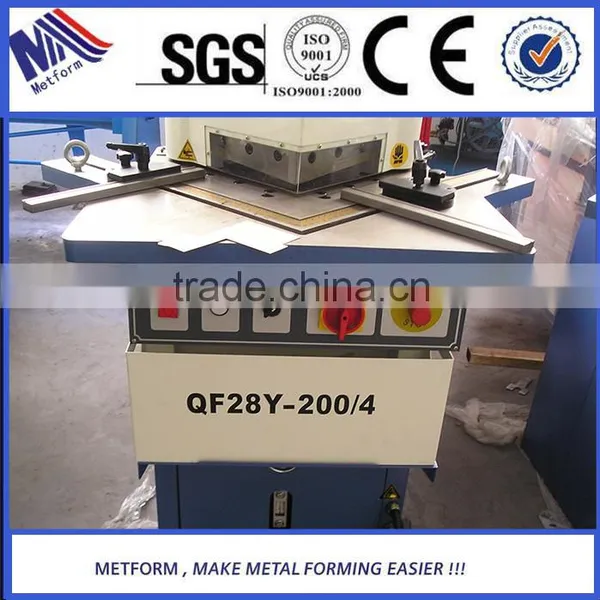

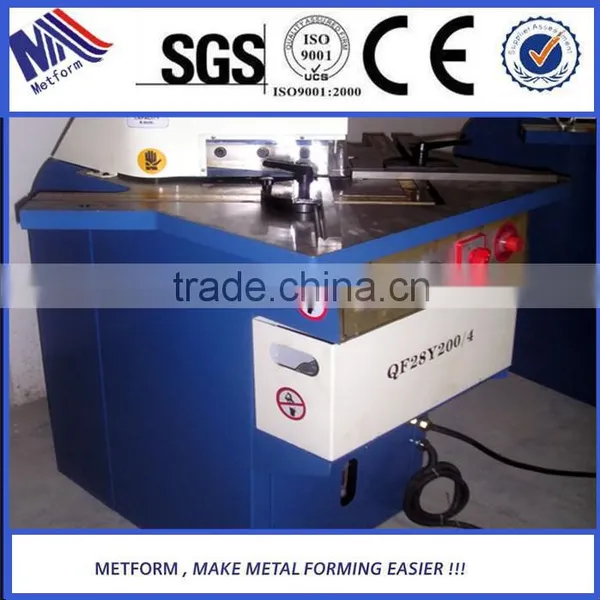

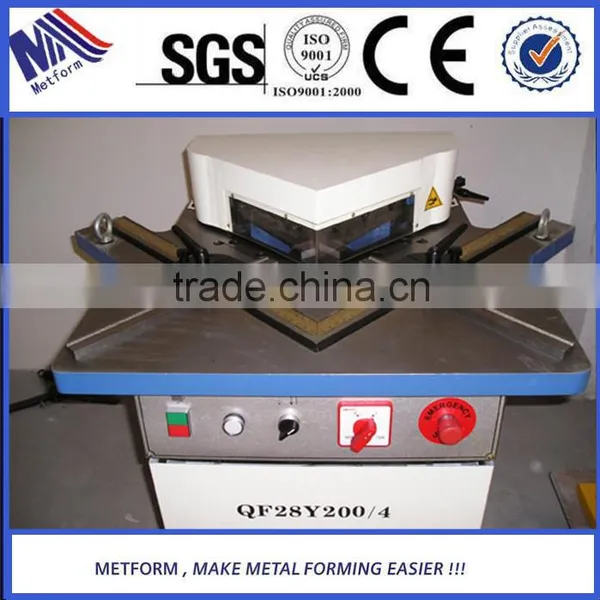

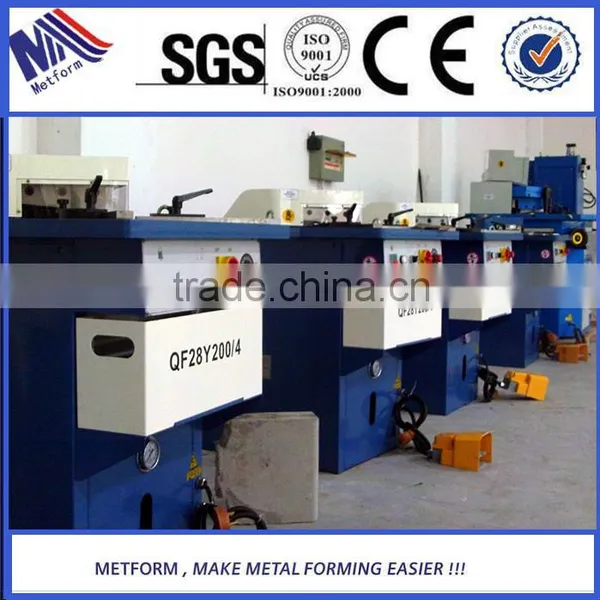

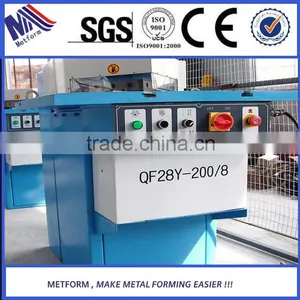

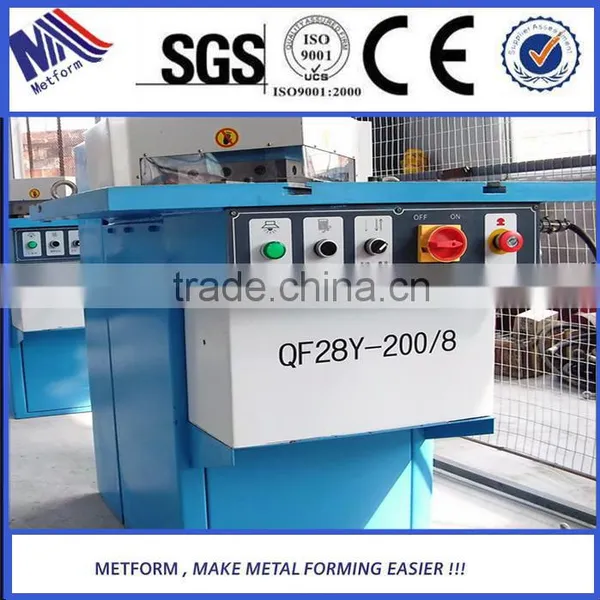

Discount promotional hydraulic angle notching machine

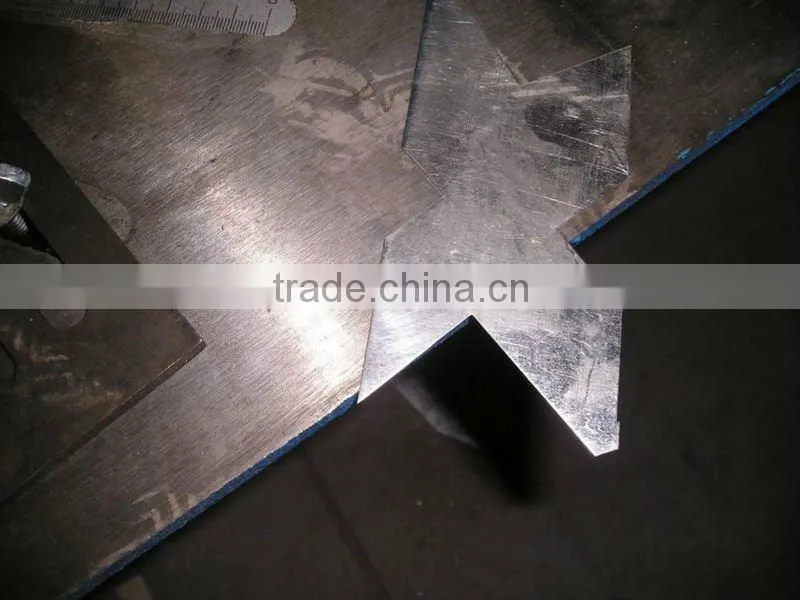

For cutting 90°Angle or V-notching on metal sheet
Hydraulic corner cutting machine with larger table, pump and guide pillar.
Standard features
1) Foot Switch control
2) Slug chute
3) Two protractor gauges
4) T-Slotted table with recessed measuring scales
5) Blade suitable for mild or stainless steel
6) Material hold downs
7) Easy maintenance

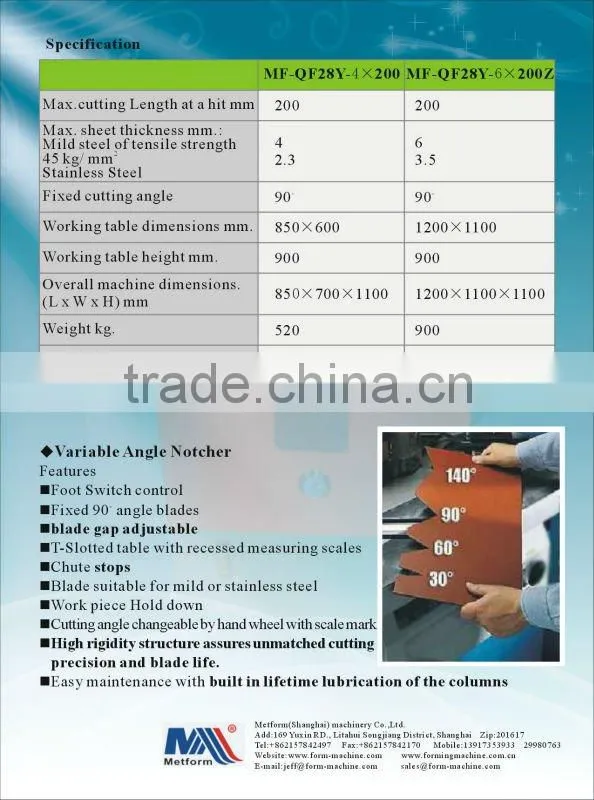

Specification
1) Max. Cutting thickness 6mm
2) Cutting length 200mm
3) Cutting angle 90°
4) Motor 3.2kw
5) Overall Dimension1000*1000*1200 mm
6) Net Weight: 980 kg
Type |
Min cutting thickness(mm) |
Max cutting thickness(mm) |
Min adjustable Angle |
Max adjustable Angle |
Weight(kg) |
Dimension(mm) |
|||
carbon steel |
Stainless steel |
carbon steel |
Stainless steel |
||||||
F-QF28Y-4*200 |
0.5 |
0.5 |
4 |
2 |
90 |
90 |
600 |
850*700*1100 |
|
F-QF28Y-6*200 |
0.5 |
0.5 |
6 |
3 |
90 |
90 |
980 |
850*700*1100 |
|
F-QX28X-4*200 |
0.5 |
0.5 |
4 |
2 |
45 |
135 |
1300 |
1000*800*1200 |
|
F-QF28X-6*200 |
0.5 |
0.5 |
6 |
3 |
45 |
135 |
1500 |
1000*800*1200 |
|

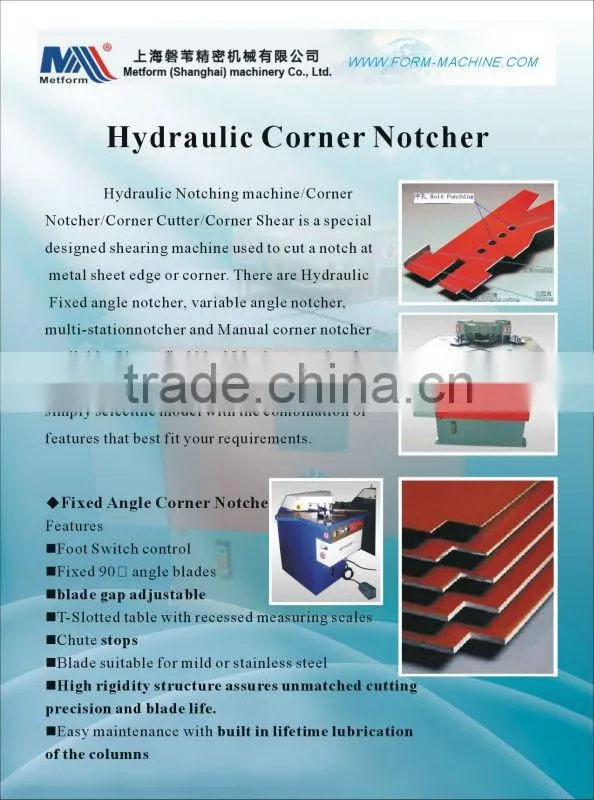

catalogues
Discount promotional hydraulic angle notching machine

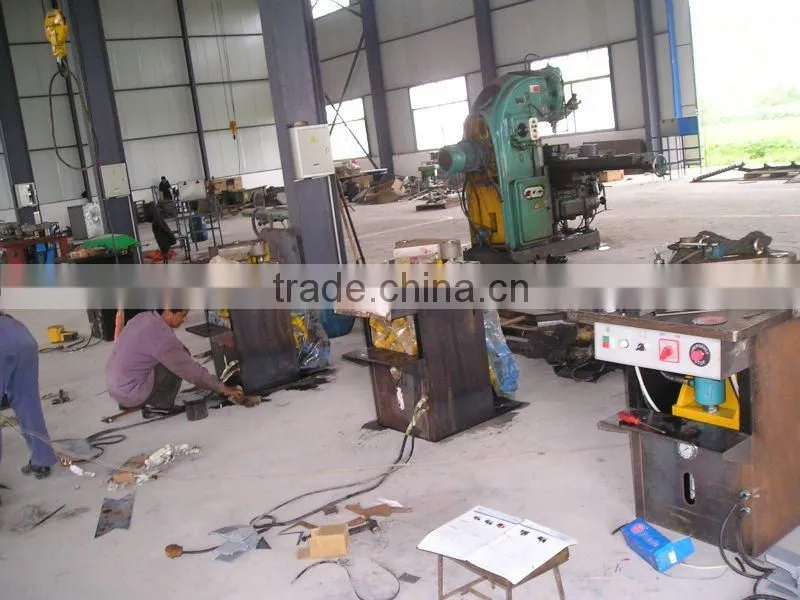

manufacturing
prototypes
processed samples

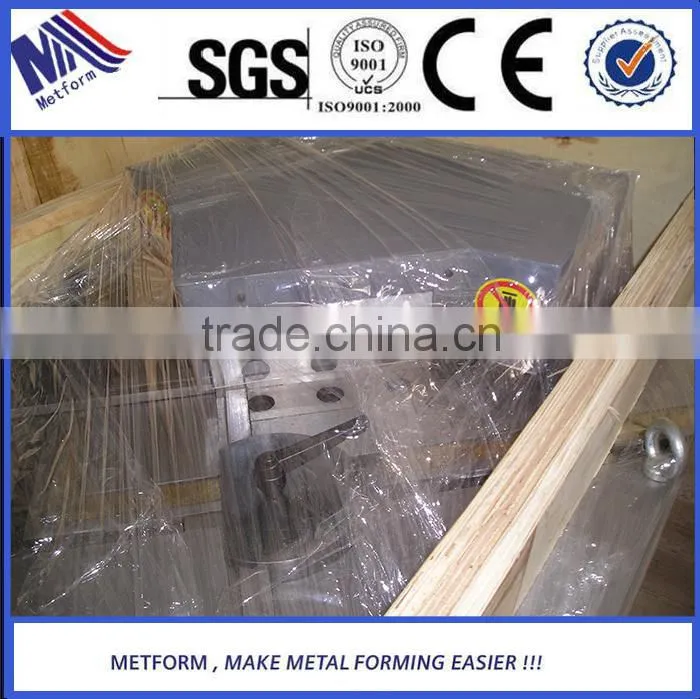

Packaging:
Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.

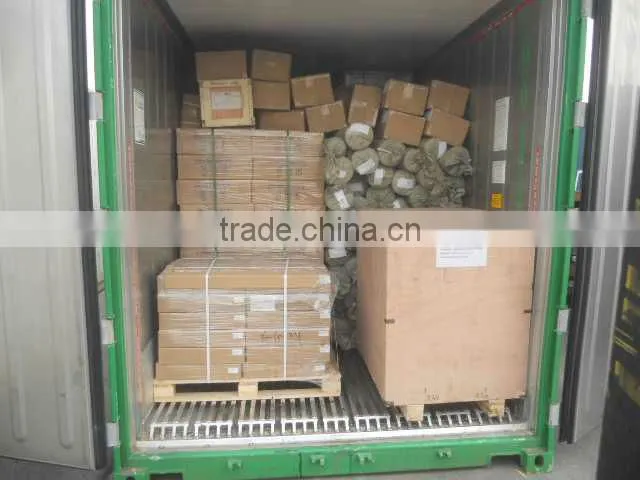

Shipping:
For LCL, we cooperated with reputable logistics team to send machine to sea port speedily and safely.
For FCL, we get machines to container loading by our skillful workers carefully.
For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like to have seamless cooperation with your forwarder at your convenience.
shipped to Tailand
Metform ( Shanghai) machinery Co., Ltd., located in Songjiang Shanghai, was established in 2004. Metform specializes in design and manufacture of special machine for metal sheet/strip manufacture and forming. We are designers and builders of high quality metal coil processing line. We supply machines with latest available technology, design and innovation in machinery engineering. The main product are spiral tube forming machine, folding machine, Lock forming machine and bending machine etc for air duct, as well as various specification of small 2 high/ 4 high mill, slitting and cut-to-length line. Metform deals and exports a wide variety of machines for metal sheet processing and used Construction equipment too. The promise of Metform is to produce machine with excellent quality, diligently satisfy the customer's need and create value for you by means of our products and service.
Main Products
machinery equipment- seam welding machines, spiral tube forming machines, elbow making machines, roll bending machines, angle steel flat steel volume circle machines, lock formers, hydraulic notching machines, hydraulic combined punching and shearing machine,CNC plasma/laser cutting machine,punch presses, metalworking machines,coil processing machinery, leveling machine,slitting line, cut-to-length lines, rolling mills.
Q:How to get a accurate quotation from us?
A:provide us the detail of the material such as metal thickness and width
Q: You are Manufacturer or trading company?
A: We are 100% manufacturer with 17 year's manufacturing experience
Q: Can you do OEM service?
A: Yes, we can. Your design is accepted. Your own logo can be used on the machine.
Q:what’s the shipping cost from China to your country?
A:We can send machine to your port or door address by sea or airplane. Please kindly tell us your nearest port or address with postcode.We have reliable shipping agent to insure the safe,convenient and timely delivery.
Q: How to check imported charges or tax ?
A:Call your l them machine HS code.
Spiral duct forming machine is 8455229090
Press brake and rolling machines are 84622990. shearing machine is 84623990.rolling machine is 8455229090,seam welding machine is 85152900
Q: Do you accept LC payment?
A: Yes. Normally, our payment is 30% +70% TT. LC payment is also acceptable.
Q: what’s the package?
A:fumigation-free plywood case or without package
Q:How to operate this machine ?
A:video link of our factory .......or we send you the movie directly
Q:what about commissioning service ?
A:we can offer commissioning service,the buyer need to afford plane tickets
Q:Do you offer teaching&training ?
A:Training at supplier’s plant
Q: what’s policy for guarantee and broken parts?
A:Warranty period of equipment lasts a year, during which the broken parts and spares caused by quality can be offered free.
