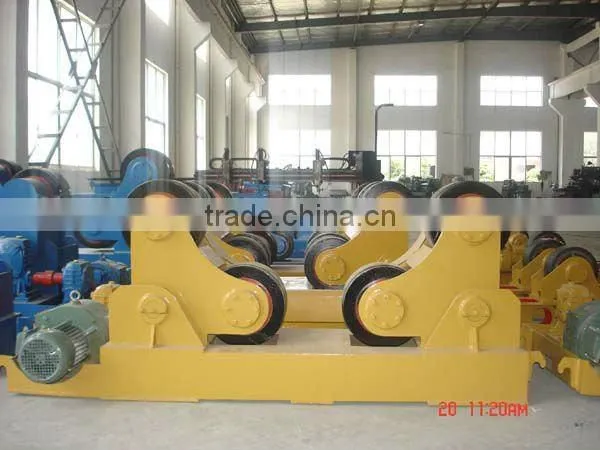

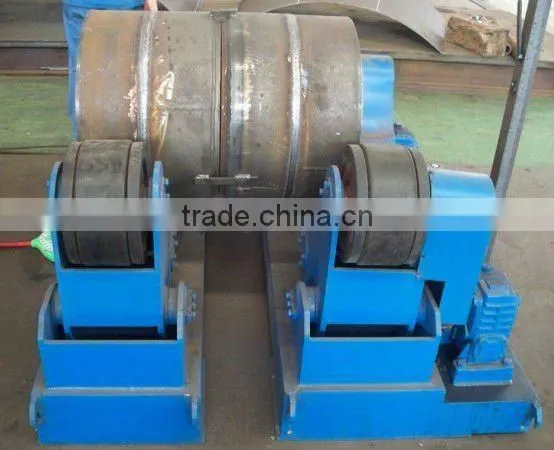

HGK-10 Welding Rotator by Lead Screw
US$ 3,600 - 3,600
MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
Metform
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Automatic Chain Welding MachineUS$ 8,800 - 10,000MOQ: 1 Unit -
Automatic Longitudinal Welding MachineUS$ 6,800 - 6,800MOQ: 1 Unit
-
H Beam Seam Welder ManufactureUS$ 8,800 - 8,800MOQ: 1 Unit
-
Shanghai H Beam Seam Welder ManufactureUS$ 8,800 - 8,800MOQ: 1 Unit
-
Shanghai H Beam Seam Welder ManufactureUS$ 8,800 - 8,800MOQ: 1 Unit
Condition
New
Place of Origin
Shanghai, China
Brand Name
Metform
Model Number
HGK-10
Usage
welding
Dimensions
2500*1459*800mm
Weight
1000kg
Specifications
HGK-10 welding rotator by lead screwExcellent speed reducing driven organ
Frequency conversion stepless speed regulation
HGK-10 welding rotator by lead screw
1. Performance and Structural Features
Use manual screw or bolt stepping for regulation, large ton adopts prepared screw to adjust central distance of roller, so as to adjust to the change of diameter of work piece.
Steel glue assembly roller, long ton adopts full steel roller, which features in large loading capacity and driven capacity.
Excellent speed reducing driven organ
Frequency conversion stepless speed regulation, which is simple ad reliable
Manual control box operation, which can be remote controlled.
2. Technical Parameters
HGK-10 welding rotator
- The Max. Loading Weight: 10T
- The applicable Cylindrical Diameter: Φ300-2800mm
- Roller diameter and width: rubber roller ofΦ300×120mm
- Roller Linear Velocity: 6-60m/h
- Power of Motor: 2×0.55KW
- Distance adjustment type: Manual bolt stepping adjustment
- Speed Regulation Mode: Frequency Conversion Stepless Speed Regulation
