Factory supply hydraulic press brake machine for plate bending
- 10 Set / Sets per Month
- shanghai
- T/T Credit Card
- 10mm hot press brake bending machine for brake pad
- Custom bending press brake and shearing machine
- Square steel tube press brake machine for making gutters
- CNC hydraulic press brake steel bar cutting and bending machine
- Crank type bending machine heavy duty press brake 125t 3200
- 6 axes cnc press brake machine hydraulic for making gutters ceramic
Product Details
Condition: | New | Place of Origin: | Shanghai, China | Brand Name: | Metform |
Model Number: | WC67Y-160/3200 | Machine Type: | Beading Machine | Raw Material: | Sheet / Plate Rolling |
Material / Metal Processed: | Carbon Steel | Power: | Hydraulic | Automation: | Automatic |
Extra Services: | Other | Certification: | ISO 9001:2000 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

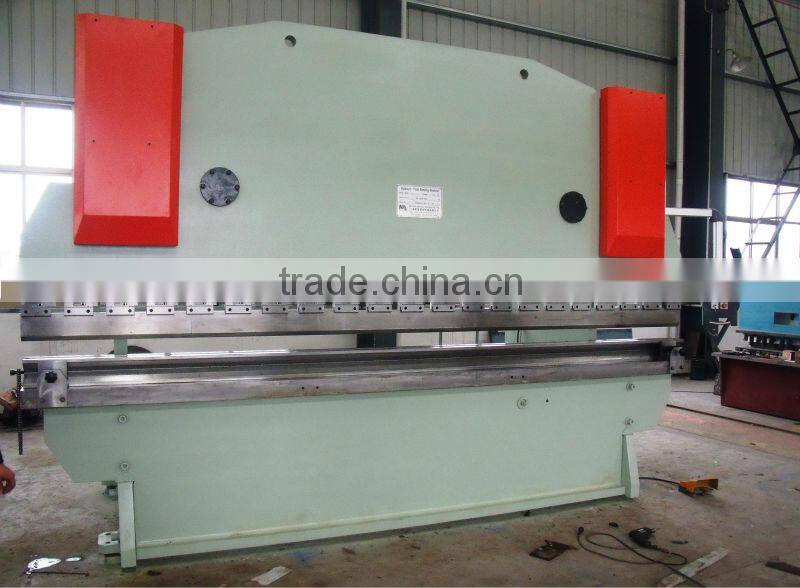

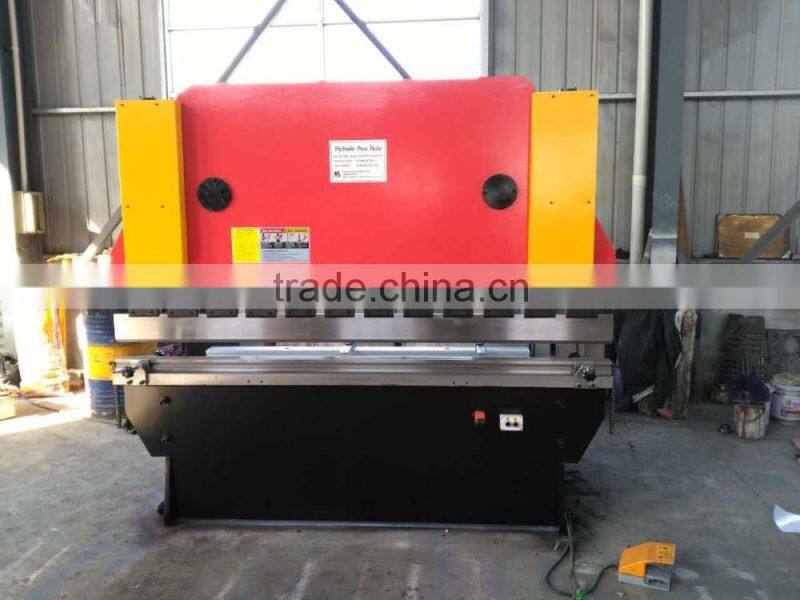

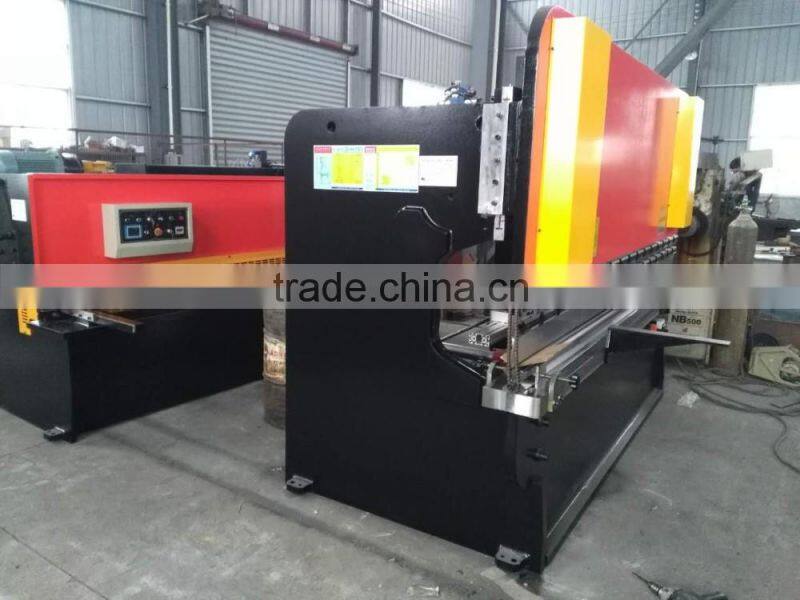

Factory supply hydraulic press brake machine for plate bending
Scope of Supply and Standard feature:
Utra-Heavy Frame Structure, High rigidity full welded box frame with stress eliminating by vibration.

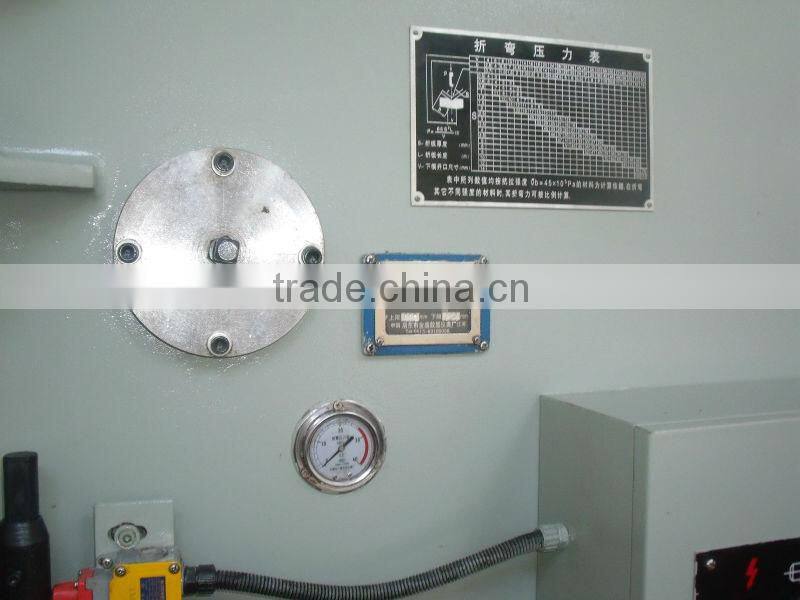

The machine is equipped with reliable hydraulic system. To ensure minimum maintenance, the integrated Mono-block hydraulic system and worldwide famous valves and seals are adopted, And the pipeline and connections are reduced to the minimum level. High efficiency pump with low level sound, temperature gauge on oil filter and double-acting cylinders ensure high reliability and safety.
With overload protection reliability.
The electrical components are selected in accordance with DIN or ISO standard, Which mainly are made by Siemens or other world famous brand.
Safety Guard.
Digital readout
Note: CNC could be equipped but not included.
2) Technical Specification
Pressing force: 1600 KN
Worktable Length: 3200mm
Distance between uprights: 2500
Ram stroke: 200mm
Opening height 400 mm
Throat depth 320mm
Amount of ram adjustment 160mm
Approach speed: 70 mm/sec.
Working speed: 10 mm/sec.
Return Speed: 35 mm/sec
Main Motor 11kw
Motor for back gauge 0.55kw
Motor for ram adjust 0.12kw
Overall Dimension 3300×1550×2580 mm
Weight: 131500 kg
some models
Model | Nominal Pressure (kN) | Length of table (mm) | Distance Between Housing (mm) | Throat Depth (mm) | Stroke (mm) | Open Hight (mm) | Main Motor (kW) | Dimensions | weight (T) |
40/2000 | 400 | 2000 | 1600 | 200 | 110 | 335 | 4 | 2545x1510x2050 | 3 |
40/2500 | 400 | 2500 | 2000 | 200 | 110 | 335 | 4 | 2950x1510x2080 | 3.5 |
63/2000 | 630 | 2000 | 1600 | 250 | 110 | 350 | 5.5 | 2555x1600x2130 | 3.8 |
63/2500 | 630 | 2500 | 2000 | 250 | 110 | 350 | 5.5 | 2960x1600x2180 | 4.2 |
63/3200 | 630 | 3200 | 2600 | 250 | 110 | 350 | 5.5 | 3740x1600x2230 | 5.2 |
100/2500 | 1000 | 2500 | 2000 | 350 | 150 | 400 | 7.5 | 2980x1650x2330 | 6.3 |
Factory supply hydraulic press brake machine for plate bending
Packaging:
Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.

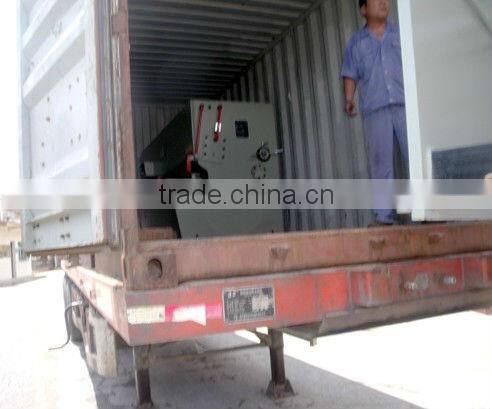

Shipping:
For LCL, we cooperated with reputable logistics team to send machine to sea port speedily and safely.
For FCL, we get machines to container loading by our skillful workers carefully.
For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like to have seamless cooperation with your forwarder at your convenience.
Factory supply hydraulic press brake machine for plate bending
A.Warranty : one year
B.Engineers available to serve machine overseas
C.Strict factory inspection
D.Complete equipment manual
E.Online instruction
F.Provide all components, spare parts and consumptive material
cost effective Spiral corrugated galvanized pipe forming machine with top quality
spiral duct tubeformers for producing high quality spiral ducts China Supplier spiral duct former machine Spiral Tube Forming Machine

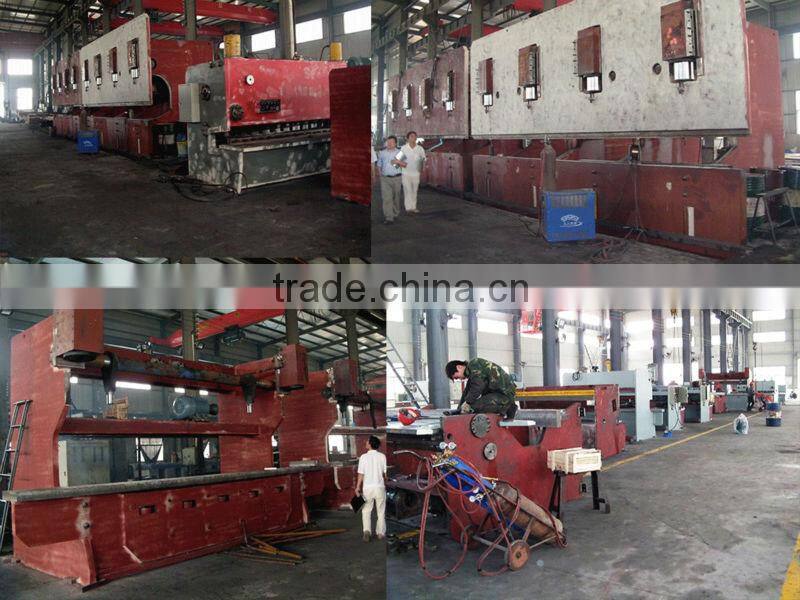

Metform ( Shanghai) machinery Co., Ltd., located in Songjiang Shanghai, was established in 2004. Metform specializes in design and manufacture of special machine for metal sheet/strip manufacture and forming. We are designers and builders of high quality metal coil processing line. We supply machines with latest available technology, design and innovation in machinery engineering. The main product are spiral tube forming machine, folding machine, Lock forming machine and bending machine etc for air duct, as well as various specification of small 2 high/ 4 high mill, slitting and cut-to-length line. Metform deals and exports a wide variety of machines for metal sheet processing and used Construction equipment too. The promise of Metform is to produce machine with excellent quality, diligently satisfy the customer's need and create value for you by means of our products and service.
Main Products
machinery equipment- seam welding machines, spiral tube forming machines, elbow making machines, roll bending machines, angle steel flat steel volume circle machines, lock formers, hydraulic notching machines, hydraulic combined punching and shearing machine,CNC plasma/laser cutting machine,punch presses, metalworking machines,coil processing machinery, leveling machine,slitting line, cut-to-length lines, rolling mills.
Q:How to get a accurate quotation from us?
A:provide us the detail of the material such as metal thickness and width
Q:what’s the shipping cost from China to your country?
A:We can send machine to your port or door address by sea or airplane. Please kindly tell us your nearest port or address with postcode.We have reliable shipping agent to insure the safe,convenient and timely delivery.
Q: How to check imported charges or tax ?
A:Call your l them machine HS code.
Spiral duct forming machine is 8455229090
Press brake and rolling machines are 84622990. shearing machine is 84623990.rolling machine is 8455229090,seam welding machine is 85152900
Q:Payment terms,MOQ,warranty,FOB...
A:payment terms 30% down payment with order by T/T,the balance of 70% to be paid on delivery
minimum order quantity:1 set,FOB Shanghai.
delivery time :20days after receipt of formal order and 30% deposit.
warranty:12 months following delivery. We offer online service 24 hours all day long, Skype, Email etc .You can contact us any time,if urgently,please call us.
Q: what’s the package?
A:fumigation-free plywood case or without package
Q:How to operate this machine ?
A:video link of our factory .......or we send you the movie directly
Q:what about commissioning service ?
A:we can offer commissioning service,the buyer need to afford plane tickets
Q:Do you offer teaching&training ?
A:Training at supplier’s plant
Q: what’s policy for guarantee and broken parts?
A:Warranty period of equipment lasts a year, during which the broken parts and spares caused by quality can be offered free.
Plate bending machine, Hydraulic Press Brake, ,Hydraulic bending machine WC67Y-160/3200
