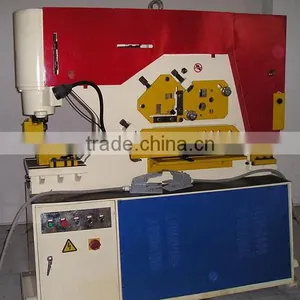

Q35Y-16 combined punching and shearing machine hydraulic iron worker
- 200 Set / Sets per Month
- Shanghai
- T/T Credit Card
-
4 axis CNC Milling Machine To Router 2d 3d Woodworking Craft
-
Double Platform Stainless Steel Kitchen Equipment Polishing Machine
-
Photovoltaic solar panels recycling plant
-
Solar panel recycling machine with high efficiency
-
Micro wire mesh weaving machine from LANYING wire mesh weaving machine
-
LANYING woven wire mesh machines - stainless steel wire mesh weaving machines
Product Details
| Place of Origin: | Shanghai, China | Brand Name: | Metform, metform Iron Worker | Model Number: | Q35Y-16, Q35Y-16 for Iron Worker |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

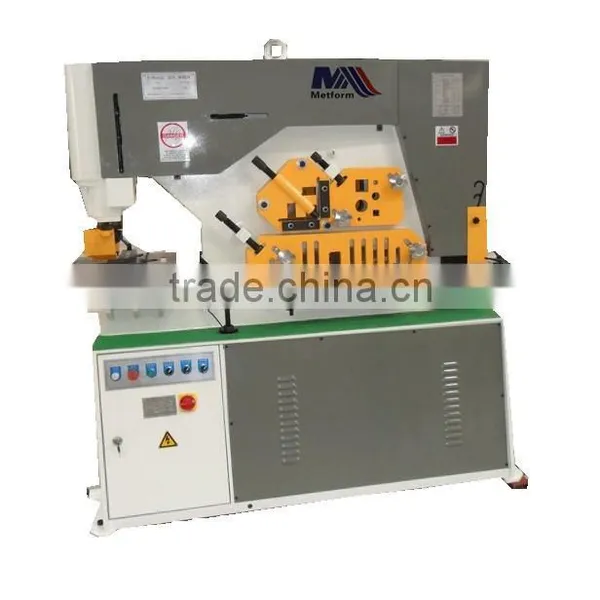

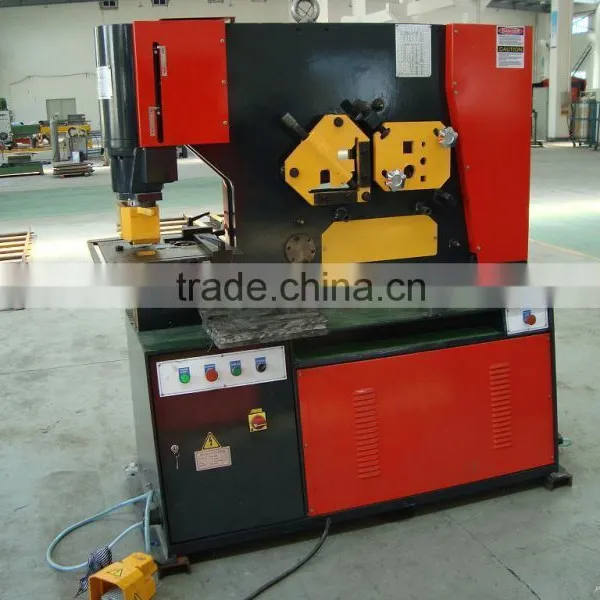

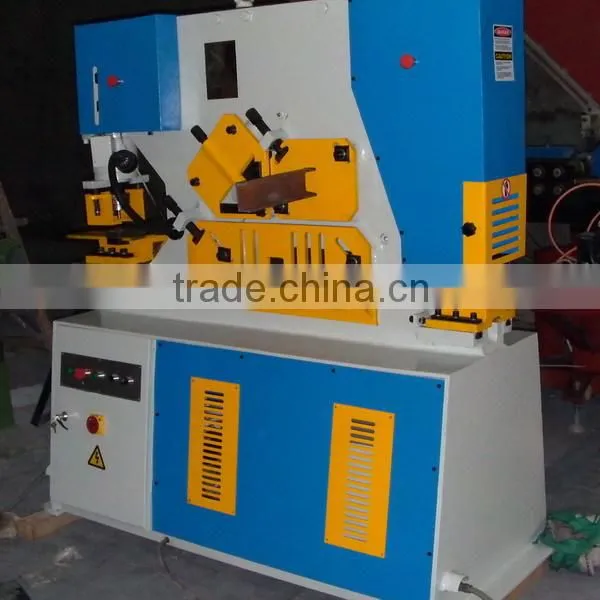

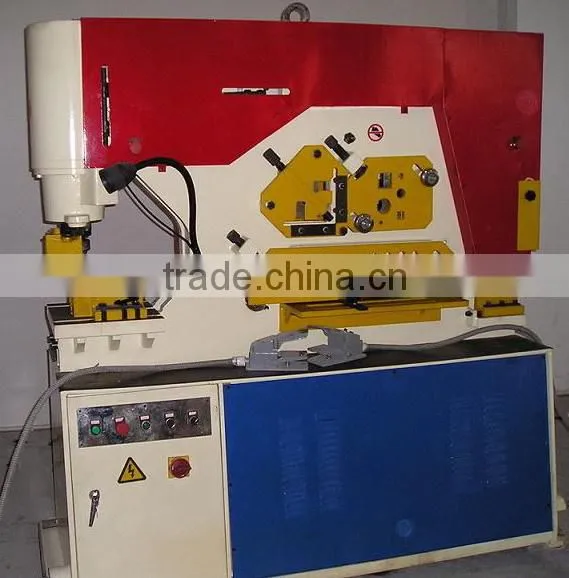

Metform Ironworker machine, so called universal shearing machine, is a versatile machine. The Metform’s Hydraulic Iron Worker machines have 5 working stations which are described as below.

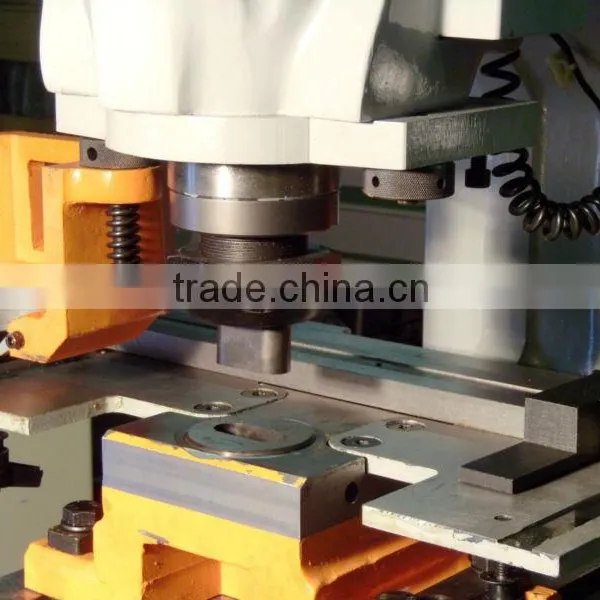

Punch Large punch bed area, removable front block and quick changing design for punching pin
Angle station
This station provides large capacity angle cutting at 90° and 45°. Angles between 45° and 90° can be achieved by first cutting at 90° and then flange in the shearing station.
Section cutting station
For round and square bars, channel, joist, T-sections and may other special profiles.
Shearing
The shearing unit is fitted with a simple robust hold-down which is adjustable to any thickness of material within the cutting capacity of the machine.
Feed table with adjustable guides.
Notching station
The notching station is fitted as standard with a rectangular notch table with adjustable stops, allowing repetitive positioning.
Metform machines are supplied with standard tooling including repetition support tables at punch, Comprehensive safety guards are fitted as standard on all work stations.
The hydraulic system is activated by two shielded foot controls for two operator utilization. one operating the punch end cylinder, the other operating the shear end cylinder.
The shear cylinder provides the power to the three shearing and the notch stations.
Easy for maintenance with centralized lubrication system.
Metform Model Q35Y-12, Q35Y-14, Q35Y-16, Q35Y-20, Q35Y-25 and Q35Y-30 are available for cutting different steel size.
Main Technical data
Q35Y-16 combined punching and shearing machine hydraulic iron worker
Specification Item | Q35Y-16 | Q35Y-20 | Q35Y-25 | Q35Y-30 | |
flat shearing | In max. thickness (mm) | 16*250 | 20*330 | 25*330 | 30*355 |
In max. width(mm) | 8*400 | 10*480 | 16*600 | 20*600 | |
Length of blade(mm) | 400 | 480 | 600 | 600 | |
|
|
|
|
| |
Section cutting | Square (mm) | 40*40 | 45*45 | 50*50 | 55*55 |
Round Dia. (mm) | 45 | 50 | 60 | 65 | |
Channel (mm) | 126*53*5.5 | 160*60*6.5 | 200*75*9 | 280*86*11.5 | |
I beam (mm) | 126*74*5 | 160*86*6 | 200*102*9 | 280*124*10.5 | |
Angle at 90°(mm) | 120*120*12 | 140*140*12 | 160*160*14 | 180*180*16 | |
Notching | Max. thickness (mm) | 10 | 13 | 14 | 16 |
Max. width (mm) | 57 | 57 | 57 | 57 | |
Depth (mm) | 100 | 100 | 100 | 100 | |
punching | Rated capacity KN | 600 | 750 | 1100 | 1400 |
Max. thickness (mm) | 16 | 20 | 25 | 28 | |
Diameter (mm) | 25 | 30 | 35 | 38 | |
Throat depth (mm) | 300 | 355 | 400 | 600 | |
Stroke length (mm) | 80 | 80 | 80 | 80 | |
Cycles Min-1 | 6 | 8 | 6 | 6 | |
|
|
|
|
| |
Motor power kw | 4 | 5.5 | 7.5 | 11 | |
Overall size | Width (mm) | 800 | 900 | 980 | 1060 |
height(mm) | 1780 | 1930 | 2100 | 2380 | |
length(mm) | 1650 | 1950 | 2350 | 2680 | |
weight | kg | 1800 | 2400 | 4800 | 6800 |
Q:How to get a accurate quotation from us?
A:provide us the detail of the material such as metal thickness and width
Q:what’s the shipping cost from China to your country?
A:We can send machine to your port or door address by sea or airplane. Please kindly tell us your
nearest port or address with postcode.We have reliable shipping agent to insure the safe,convenient
and timely delivery.
Q: How to check imported charges or tax ?
A:Call your l them machine HS code.
Spiral duct forming machine is 8455229090
Press brake and rolling machines are 84622990. shearing machine is 84623990.rolling machine is 8455229090
,seam welding machine is 85152900
Q:Payment terms,MOQ,warranty,FOB...
A:payment terms 30% down payment with order by T/T,the balance of 70% to be paid on delivery
minimum order quantity:1 set,FOB Shanghai.
delivery time :20days after receipt of formal order and 30% deposit.
warranty:12 months following delivery. We offer online service 24 hours all day long, Skype, Email etc .
You can contact us any time,if urgently,please call us.
Q: what’s the package?
A:fumigation-free plywood case or without package
Q:How to operate this machine ?
A:video link of our factory .......or we send you the movie directly
Q:what about commissioning service ?
A:we can offer commissioning service,the buyer need to afford plane tickets
Q:Do you offer teaching&training ?
A:Training at supplier’s plant
Q: what’s policy for guarantee and broken parts?
A:Warranty period of equipment lasts a year, during which the broken parts and spares caused by quality can be offered free.
