gantry copper sheet cnc v-grooving machine with best price
- 6 Set / Sets per Month
- Shanghai
- T/T L/C Credit Card
- Hydraulic Guillotine Type Metal Shear Used in Scrap Metal Recycling Industry
- Best price cnc table plasma cutting machine with water table
- High-power cnc plasma cutting machine 1530
- REBOUND CNC table plasma cutting machine for metal 1.5x3m
- REBOUND CNC new automatic plasma cutting machine with good price
- table cnc best price modern plasma cutting machine for stainless
Product Details
Condition: | New | Place of Origin: | Shanghai, China | Brand Name: | CTC |
Model Number: | CTL1260Y | Voltage: | 380V 220V Optional | Rated Power: | 8.5KW |
Dimension(L*W*H): | 6020*2354*1592 | Weight: | 16500kg | Certification: | ISO9001:2008 |
Warranty: | 12 Months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

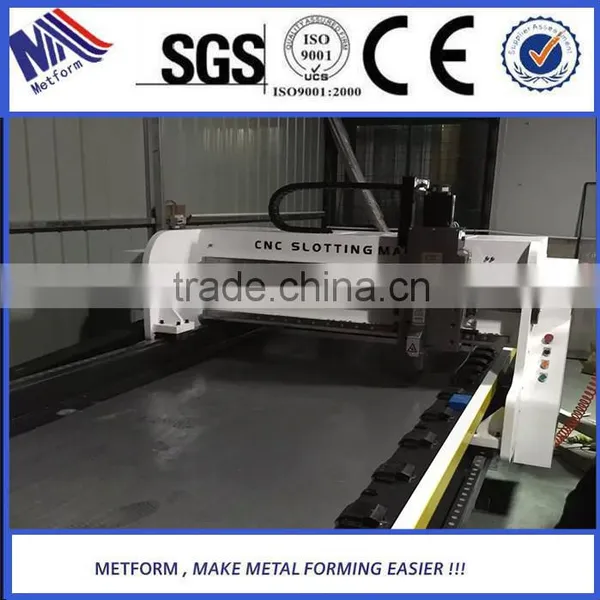

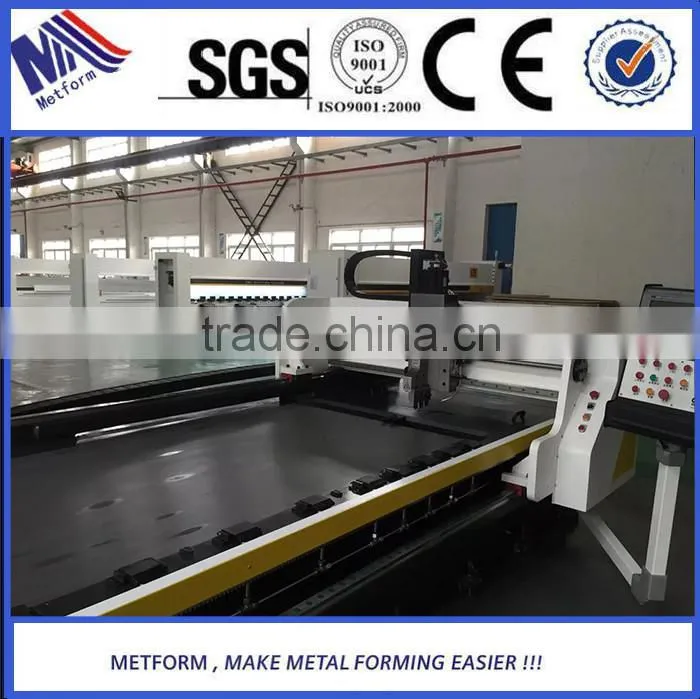

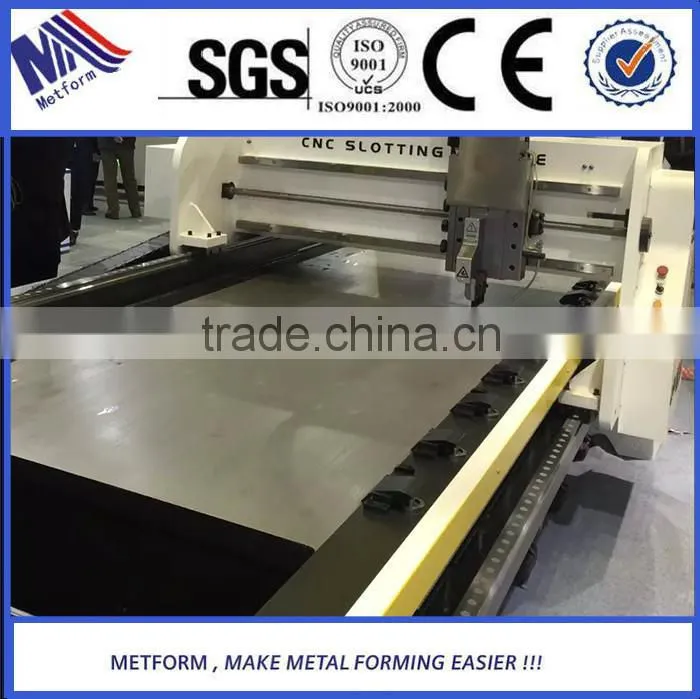

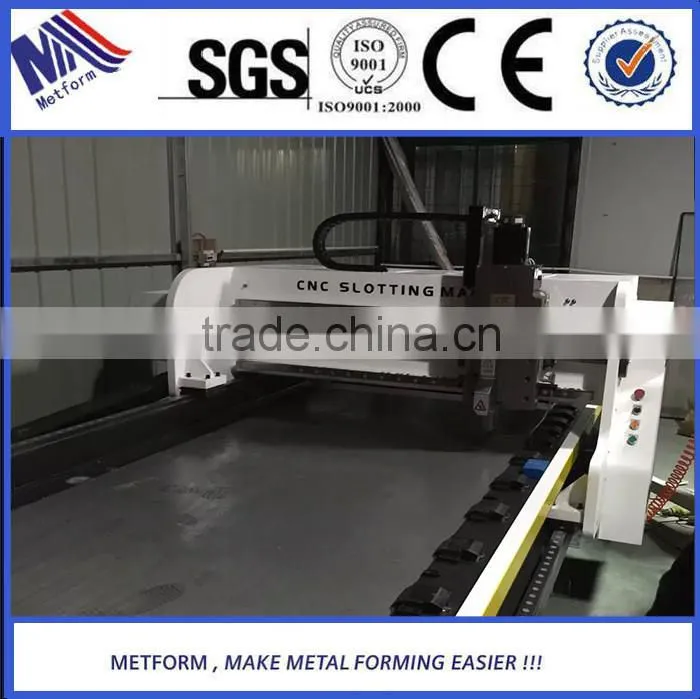

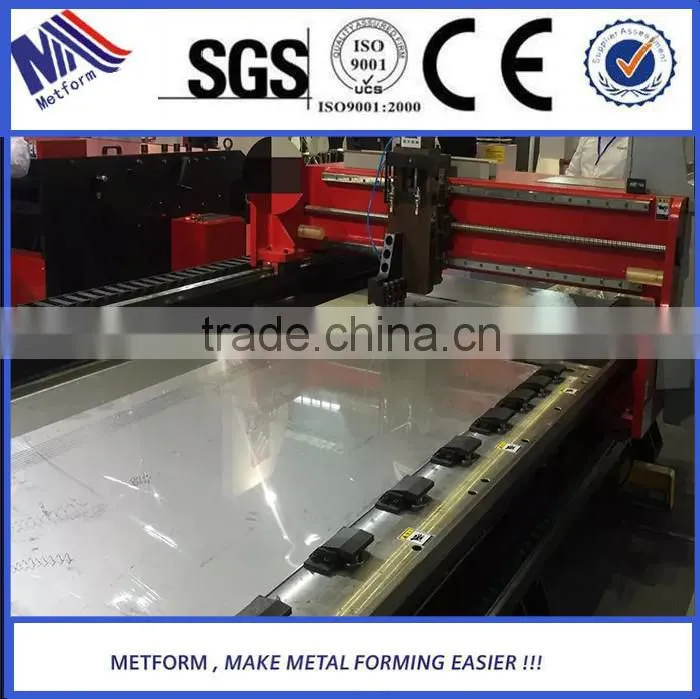

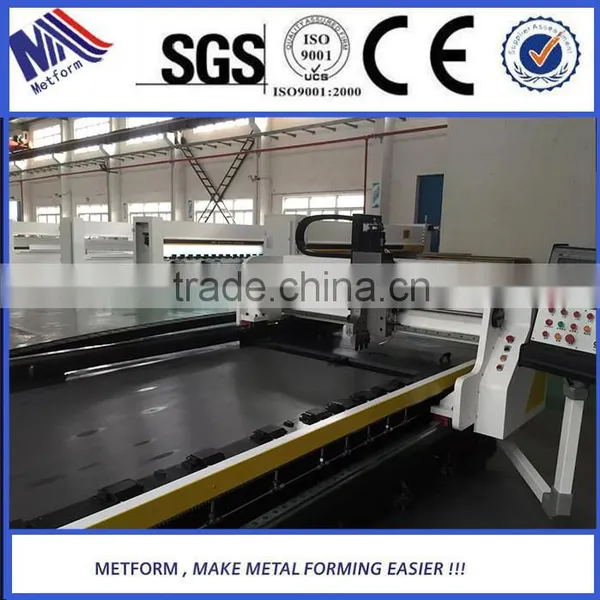

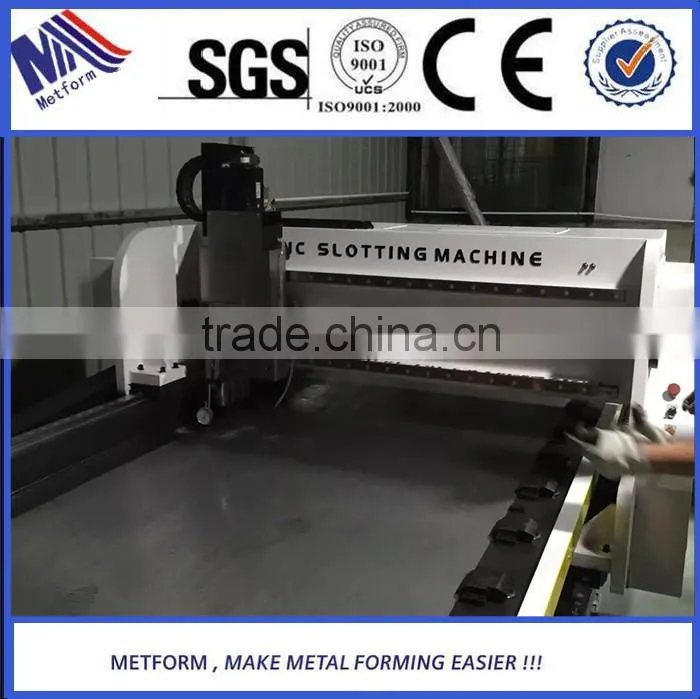

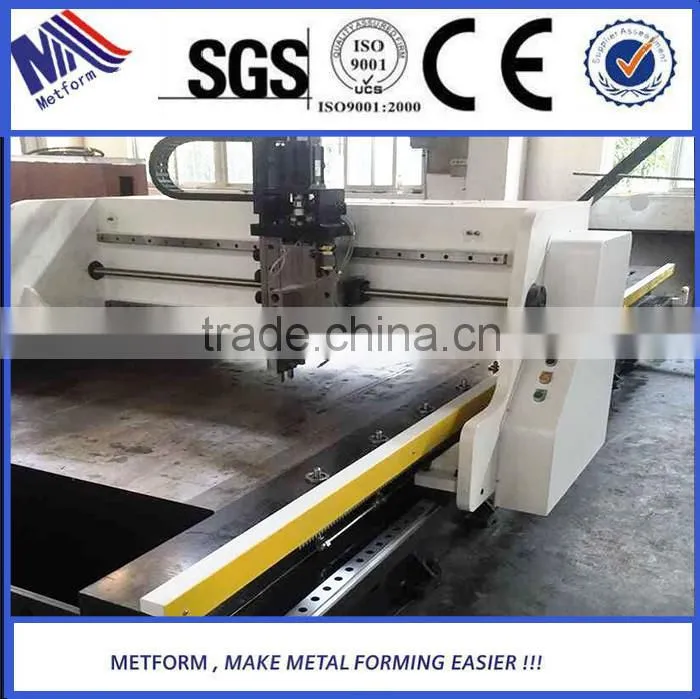

gantry copper sheet cnc v-grooving machine with best price
Gantry type machine, alloy steel welded structure, and whole frame stress annealed, having good rigidity and strength and durability.
Whole table planed in house with good flatness
Open-architecture CNC controller, extensible for new function
3-blade cutting head, working with high efficiency.
High speed sliding Blade Carrier, driven through Ball screw and Linear Guide rail, with high repeat positioning accuracy.
Hydraulic clamping pad unit
Spray Cooling system
Bought-in Parts and Components are world top class, Parker hydraulic piping and fittings, THK hydraulic and heavy duty Linear Guide Rail, Panasonic AC Servo Motor, Newcastle Planetary Reducer, Schneider Electric Components, NSK Bearings, IGUST Power cable and Cable Towline, YUKEN hydraulic Valves, HERG Lubricating system, R+W Coupling.
HUST H6DKL-4 CNC system from Taiwa
China Manufacture Lower Cost V-Cut Serial V-groove Manual Machine
Main technical data
Term | unit | CTL1240Y | CTL1260Y | |
Max. sheet length | mm | 4000 | 6000 | |
Sheet width | K12 | mm | 12-1250 | |
K15 | 12-1550 | |||
Thickness | mm | 0.5-6 | ||
Max. speed in X axis | m/min | 80 | ||
max. speed in Y axis | m/min | 96 | ||
max. speed in Z axis | m/min | 15 | ||
Y.Z repeat positioning accuracy | mm | ±0.01 | ||
Blade Carrier Stroke | mm | 100 | ||
X axis Motor Power | kw | 5 | ||
Y1,Y2 axis Motor power | kw | 1 | ||
Z axis Motor power | kw | 1.5 | ||
Net Weight | K12 | kg | 11,000 | 16,500 |
K15 | 13,700 | 20,600 | ||
Overall Size | K12 | mm | 6020×2354×1592 | 8020×2354×1592 |
K15 | 6020×2654×1592 | 8020×2654×1592 |
A.Warranty : one year
B.Engineers available to serve machine overseas
C.Strict factory inspection
D.Complete equipment manual
E.Online instruction
F.Provide all components, spare parts and consumptive material
gantry copper sheet cnc v-grooving machine with best price
Metform seam-welding machine adopts three-phase inverter driving, welding speed is uniform, convenient adjustment, stable.Longitudinal sewing machine have painted the welding and welding two forms Metform seam-welding machine is widely applied in hardware, electrical appliances, automobiles, tank and other manufacturing industries, the most suitable for welding low carbon steel, stainless steel bowl, barrel, and sealed containers of thin-walled box.
To cater to the demands of transmission industries, Metform Machinery offer a complete range of hydraulic presses such as notching machines,iron workers,hydraulic press brake and shears punching machines, roll bending machine and many more. Sturdily constructed to perfection, our hydraulic presses can be operated easily and used for a long time. These premium quality hydraulic presses are known in international markets for excellent functioning, time saving and cost efficiency. They are offered by us at industry leading prices.
4000mm to 6000mm Sheet Metal CNC Grooving Machine V scoring for stainless steel
Q:How to get a accurate quotation from us?
A:provide us the detail of the material such as metal thickness and width
Q: You are Manufacturer or trading company?
A: We are 100% manufacturer with 17 year's manufacturing experience
Q: Can you do OEM service?
A: Yes, we can. Your design is accepted. Your own logo can be used on the machine.
Q:what’s the shipping cost from China to your country?
A:We can send machine to your port or door address by sea or airplane.
Please kindly tell us your nearest port or address with postcode.We have
reliable shipping agent to insure the safe,convenient and timely delivery.
Q: How to check imported charges or tax ?
A:Call your l them machine HS code.
Spiral duct forming machine is 8455229090
Press brake and rolling machines are 84622990. shearing machine is 84623990.
rolling machine is 8455229090,seam welding machine is 85152900
Q: Do you accept LC payment?
A: Yes. Normally, our payment is 30% +70% TT. LC payment is also acceptable.
Q: what’s the package?
A:fumigation-free plywood case or without package
Q:How to operate this machine ?
A:video link of our factory .......or we send you the movie directly
Q:what about commissioning service ?
A:we can offer commissioning service,the buyer need to afford plane tickets
Q:Do you offer teaching&training ?
A:Training at supplier’s plant
Q: what’s policy for guarantee and broken parts?
A:Warranty period of equipment lasts a year, during which the broken parts
and spares caused by quality can be offered free.
gantry copper sheet cnc v-grooving machine with best price
