Metal Laser Cutting Machine/CNC YAG Laser Cutting Machine for Metal Sheet1.lower cost
2.high precision

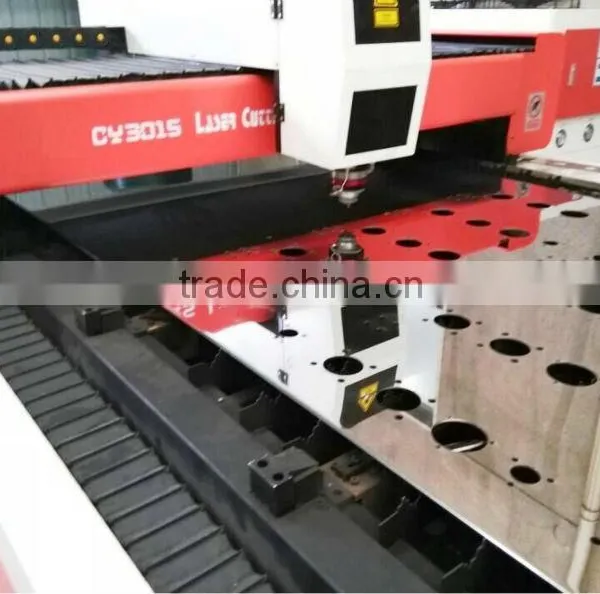

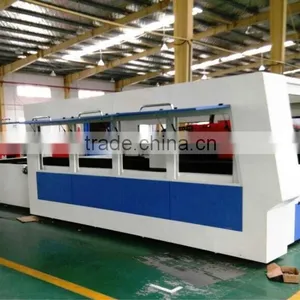

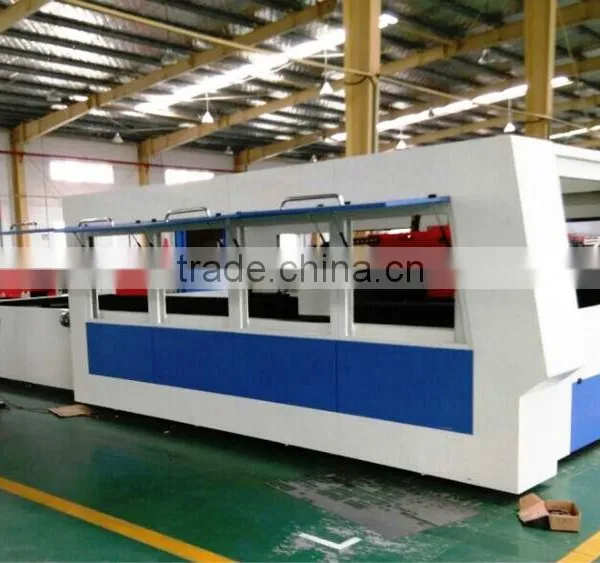

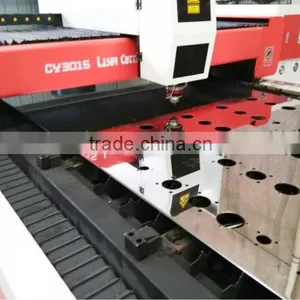

CNC YAG Laser Cutting Machine 3015-850W
1. DESCRIPTION AND FEATURE

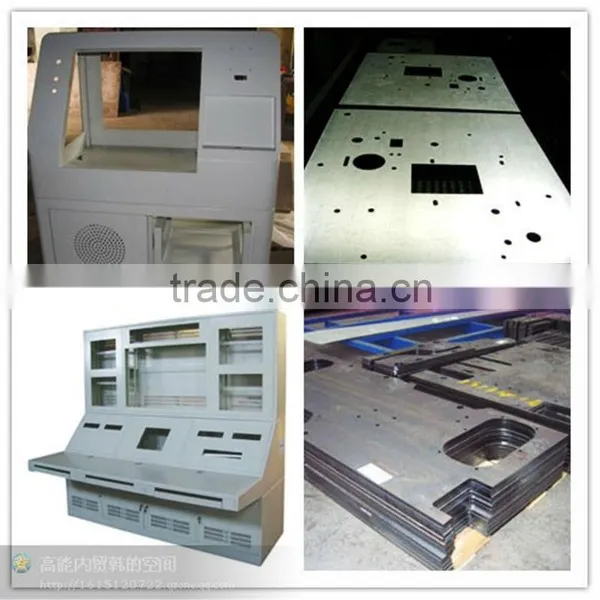

It is suitable for cutting of plate or pipe of Stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum alloy, galvanized sheet, cincalumzalutite, pickling plate, copper, silver, gold, titanium and other metal sheet, pipes and tubes, etc.
1) Technological Characteristics and Features
High Precision, High Speed and Extremely High Quality-Price Ratio
Low Operation Cost, Low Maintenance Cost and High Operation Stability.
Configured with auto tracking system, which makes it competent for cutting on both plain and uneven surfaces.
The cutting surface is extremely smooth under high level output.
It is capable of cutting all round and square pipes, which is difficult for CNC machine tool.
For slotting and grooving in formed case with thickness less than 0.5m, which could not be processed by CNC machine tool, could be realized by YAG Metal Laser Cutting Machine.
With The single-chamber structure ,power increased to 850w,stable performance.
Ejector scroll auxiliary loading and unloading, saving time and effort.
The pneumatic clamping work to eliminate the shake of material for sheet cutting .
Track receipt system to collect the finished product conveniently, saves equipment operating space.
Outer tens cutting head adapted to focus lens of various standards.
Enclosed duplex, inner/outer dust proof system to protect vital component ,that extends the service life of optical components.
Fully enclosed auto digital tracking system ,automatically saves equipment in case of sheet deletion or contact.
2) Details of Machine:
Configuration
Configuration |
Instruction |
Remark |
|
Pulsed laser power Supply system |
Exclusive high frequency pulsed laser cutting power supply. |
Stable capacity and performance |
YAG Laser source system |
YAG Laser Source developed by Germany technology is adopted. |
High reflection gilding, make the utmost of the power of laser reflection. |
Laser optical system |
Omni seal optical system adopted. |
Omni sealing ensures the longer life span of the lenses. |
Positioning and indicating system |
Red light indicating and positioning are adopted. |
The red light is accurate and straight with small light spot and high positioning precision. |
Auto tracking system |
Capacitance non-contact auto tracking system. |
Adjust the focus automatically to ensure the cutting quality. |
Cutting head system |
Unique magnetic impact-proof cutting head adopted |
Efficiently avoid workpiece to impact the cutting head. |

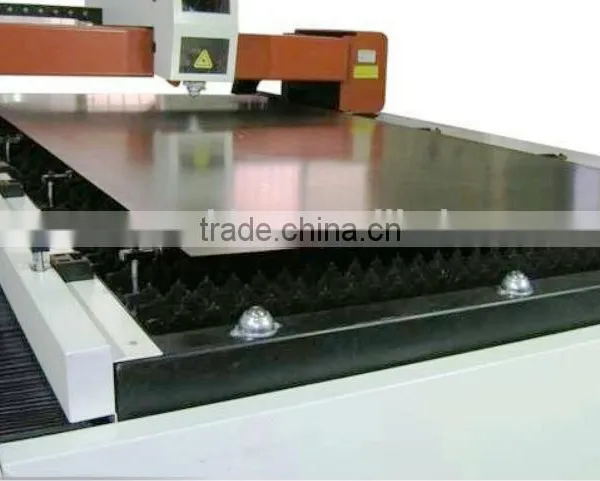

Precise CNC table system |
Highly precise ball screw CNC table adopted. |
Eliminating the stress by vibratory stress relief to prevent deformation effectively. |
Guide screw, guide track |
Hiwin, Taiwan |
High precision, easy for maintenance, long lifespan. |
Driving system |
All are Panasonic servo driving motors |
High rotation speed, Large torque, stable and reliable performance. |
Lubricating system |
Central lubricating system |
Ensuring high precision and long lifespan of all moving unit. |
CNC system |
PC controlling,softer ware exclusive for CNC laser cutting machine |
High speed DSP movement control chip for ensuring movement precision. |
Data
Laser Working Medium |
Nd+3:YAG |
Laser Wavelength |
1064nm |
Maximum Output Power |
850 W |
Pulse Width |
0.1~20 ms |
Pulse Frequency |
0~500 Hz |
Laser power stability |
≤±3 % |
Maximum cutting speed |
4500mm/min(1mm steel plate) |
Maximum cutting thickness |
≤12 mm(depend on material) |
Cutting area |
3000×1500mm |
Working table axial location accuracy |
≤±0.08 mm/m |
Working table repeating location accuracy |
≤±0.04 mm/m |
Power supply |
AC380V/±5%/50HZ |
Cutting gas |
Oxygen, Nitrogen or air |
Gas pressure |
>10kg |
