Specifications
Tianyu Brand lignite rotary dryerCE and ISO certificate
Drawing offered
One year free maintenance
Engineer di

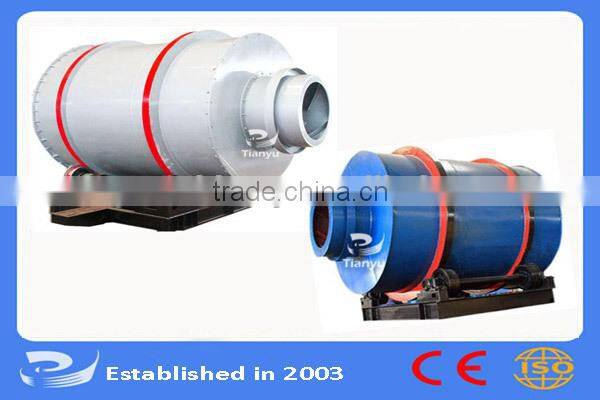

Tianyu Brand lignite rotary dryer
Let’s start the journey of exploring our product.
Tianyu Brand lignite rotary dryer
Introduction:
lignite rotary dryer is one of the mainly preparation equipments at present. According to different moisture requirement for dried material in various industries, the finished product water content could be able to below 1-0.5%.The materials that will be fed into this drier should be not sticky.
Working principle:
In the input system there are fan and burner devices. In the discharge system, there are discharge devices and dust collector and other devices, which will be designed according to the customers’ requirement. The material first go into inside drum, because there are the spiral shape boards fixed in the drum, when the dryer makes rotary work, the spiral shape board will stir the material and make the material do longitudinal movement. When the materials reach the right side of the drum, under gravity effect, the materials go into the second drum, because of director plate device, the materials go into the second drum, and the same work principle, the materials go into outside drum, in the drying working process, the materials make three times drying, so the material can be dried completely.
Applied field:
lignite rotary dryer for sale for fertilizers is widely used in drying granule material in fixed moisture range such as yellow ground in dry mortar industry, all kinds of molding sand in casting industry and blast fumes slag in building material, cement industry, small granule resistance.
Feature:
lignite rotary dryer for sale for fertilizers applies telescope-feed structure, dries the material quickly.
It is self-insulation, and simple designed, which can improve the heat efficiency to exceed 80%.
Refined experience, stable operation.
Good drying performance (The coal consumption can be under 8kg when drying 1 ton materials.).
The fuel can be coal, oil, natural gas, etc. Dry variety of mass, granule and powder materials.
Reduce the space about 60% compared with single drum rotary dryer, so construction investment and power consumption can be saved 50% and 60% respectively.
The material’s moisture can be adjusted depends on clients’ requirement.
The discharging-temperature is low. And the dust removal owns a long service time.
Technical parameter:
Model |
Productivity (m3/h) |
Moisture index |
Coke-burning capacity(kg/h) |
Power (kw) |
YHS623 |
3 |
<0.5% |
7 |
3 |
YHS625 |
5 |
<0.5% |
7 |
5.5 |
YHS6210 |
10 |
<0.5% |
7 |
7.5 |

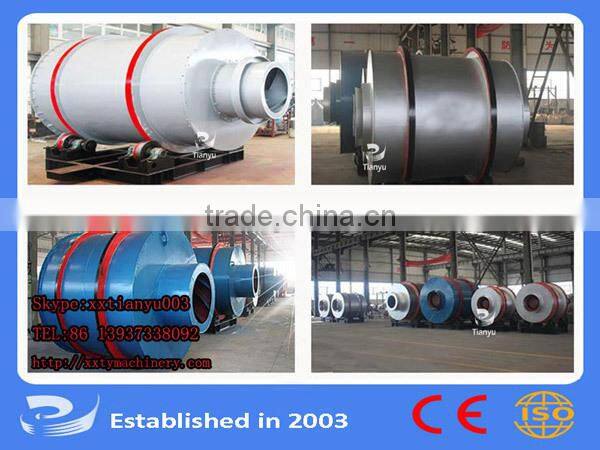

Product show case:
For export,we usually use different packs for different products according to its size.
For small size,crate case is adopted.
For big size and heavy good,fumigation-free wooden case or pallet is offered for 20’ or 40’ container or bulk shipment.
Five years export experience guarantees you to get your goods safely and quickly.
A: Pls tell me your material to be dried, its particle size, input materials moisture degree and the output materials degree , the capacity per hour, the heating system you like,coal,electricity or fuel, then I will select suitable model for you.
2.Q:I need a dryer with special needs, could your company design one for me?
A:Yes, we can. Our company has a strong researching team, and they can design machine according to your requirements.
3.Q:Can you use our specify components?
A: Yes, we can. We can produce crusher according to your specify components.
For more , please contact us!
Our Company:

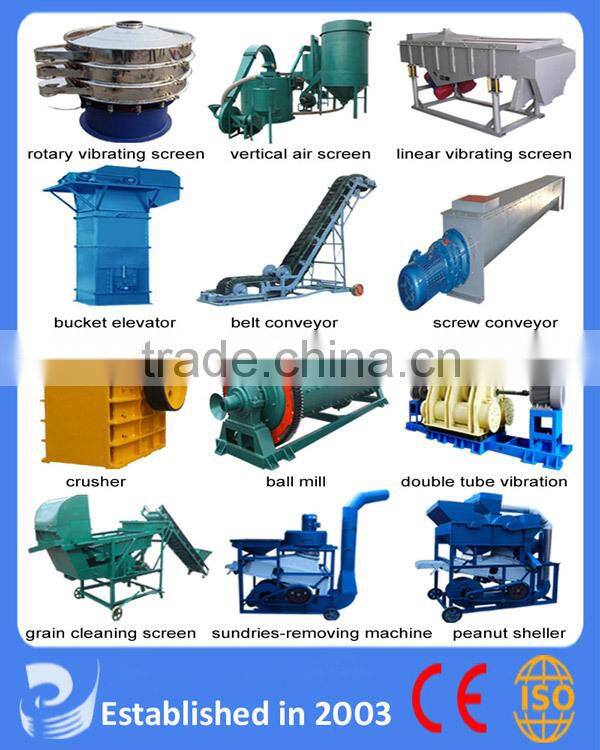

We also have other product series:
