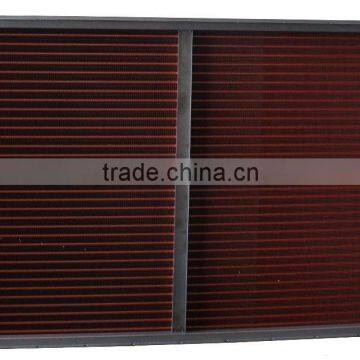

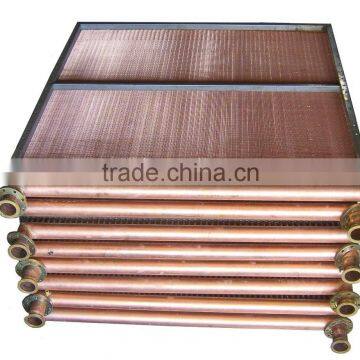

Copper Fin Tube Air Heater Exchanger
- Shanghai
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | Quanbang | Model Number | ZCTT | |
| Structure | Tube Heat Exchanger | Liquid Flow Rate | customized | |
| Maximum Working Pressure | customized | |||
| Weight | customized | Dimension(L*W*H) | customized | |
| Certification | Other, TUV | |||
| Warranty | 1 year | After-sales Service Provided | No overseas service provided |
Customized Packaging
Product Description
Type: High Conductive Compact Heat Exchanger
Heat Source: hot water
Pressure-bearing: media level
Heat transfer Function: excellent, high heat transfer coefficient
Material Feature: copper tube with copper fins

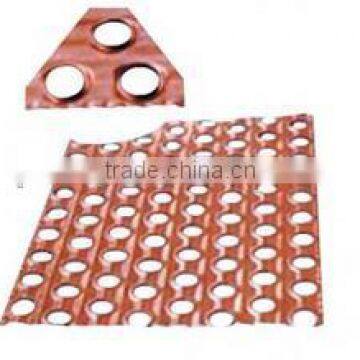

Fin and Tube:

Performance Parameter
Model | Air Flow(m3/h) | Windward Tubes | Effective Height | Heat Exchange Area (m2) | Header Tube Diameter | Total Heat Load | Water Flow(m3/h) | L×W×H (mm) |
(kw) | ||||||||
ZCTT-4 | 208 | 4 | 152 | 4 | φ48×3.5 | 0.72 | 0.12 | 252×228×260 |
ZCTT-6 | 468 | 6 | 228 | 8 | φ48×3.5 | 1.62 | 0.28 | 328×304×260 |
ZCTT-8 | 832 | 8 | 304 | 15 | φ48×3.5 | 2.88 | 0.50 | 404×380×260 |
ZCTT-10 | 1300 | 10 | 380 | 23 | φ48×3.5 | 4.50 | 0.77 | 480×456×260 |
ZCTT-12 | 1871 | 12 | 456 | 33 | φ48×3.5 | 6.48 | 1.11 | 556×532×260 |
ZCTT-14 | 2547 | 14 | 532 | 45 | φ61×4 | 8.82 | 1.52 | 632×608×260 |
ZCTT-16 | 3327 | 16 | 608 | 58 | φ61×4 | 11.52 | 1.98 | 708×684×260 |
ZCTT-18 | 4211 | 18 | 684 | 74 | φ76×4 | 14.58 | 2.51 | 784×760×260 |
ZCTT-20 | 5198 | 20 | 760 | 91 | φ76×4 | 18.00 | 3.09 | 860×836×260 |
ZCTT-22 | 6290 | 22 | 836 | 110 | φ76×4 | 21.77 | 3.74 | 936×912×260 |
ZCTT-24 | 7486 | 24 | 912 | 131 | φ76×4 | 25.91 | 4.46 | 1012×988×260 |
ZCTT-26 | 8785 | 26 | 988 | 154 | φ76×4 | 30.41 | 5.23 | 1088×1064×260 |
ZCTT-28 | 10189 | 28 | 1064 | 179 | φ76×4 | 35.27 | 6.07 | 1164×1140×260 |
ZCTT-30 | 11696 | 30 | 1140 | 205 | φ89×4.5 | 40.49 | 6.96 | 1240×1216×280 |
ZCTT-32 | 13308 | 32 | 1216 | 234 | φ89×4.5 | 46.07 | 7.92 | 1316×1292×280 |
ZCTT-34 | 15023 | 34 | 1292 | 264 | φ89×4.5 | 52.01 | 8.94 | 1392×1368×280 |
ZCTT-36 | 16843 | 36 | 1368 | 296 | φ89×4.5 | 58.30 | 10.03 | 1468×1444×280 |
ZCTT-38 | 18766 | 38 | 1444 | 330 | φ108×4.5 | 64.96 | 11.17 | 1544×1520×280 |
ZCTT-40 | 20794 | 40 | 1520 | 365 | φ108×4.5 | 71.98 | 12.38 | 1620×1596×280 |
ZCTT-42 | 22925 | 42 | 1596 | 403 | φ108×4.5 | 79.36 | 13.65 | 1696×1672×280 |
ZCTT-44 | 25160 | 44 | 1672 | 442 | φ108×4.5 | 87.10 | 14.98 | 1772×1748×280 |
ZCTT-46 | 27500 | 46 | 1748 | 483 | φ108×4.5 | 95.19 | 16.37 | 1848×1824×280 |
Company Profile
Wuxi Quanbang Energy Technology CO.,LTD is a technology enterprise dedicated in heat exchanges industry which has many years professional experience of design and manufacture. Our products are wildly applied in cereals and oil processing, chemical production and boiler etc. We have risen steadily as one of the pioneers and leaders in this industry in china.
