Type: High Conductive Compact Finned Tube Heat Exchanger
Heating Source: low/medium pressure steam (0.3-2.5MPa); conduction oil
Pressure-bearing: High
Heat transfer Function: good heat transfer; a large surface area in a small volume; low wind resistance

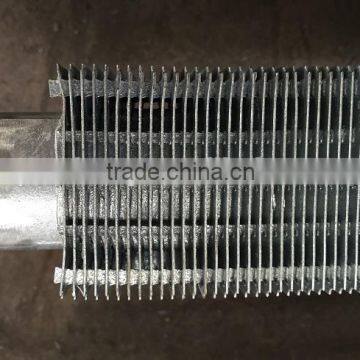

Tube
Material: carbon steel
Type: ellipse
External Diameter: 36*14 mm
Tube Thickness: 2 mm

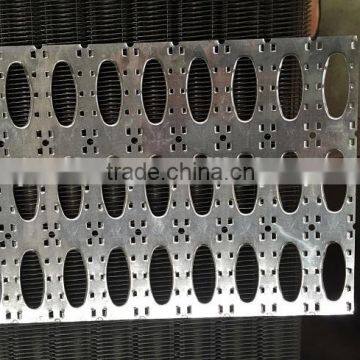

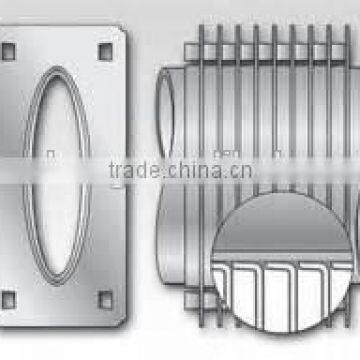

Fin
Materal: galvanized carbon steel ( full sheet )
Casing: painted carbon steel
Performance Parameter
Model | Air Flow (m3/h) | Windward Tubes | Effective Height | Heat Exchanging Area | Header Tube Diameter | Total Heat Load(kw) | L×W×H (mm) | |
Steam | Conduction Oil | |||||||
TcSCC-25×4×0.5 | 6000 | 25 | 520 | 47 | φ61×4 | 208 | 125 | 740*300*930 |
TcSCC-25×4×1 | 12000 | 25 | 1040 | 94 | φ61×4 | 415 | 249 | 740*300*1450 |
TcSCC-50×4×0.8 | 18000 | 50 | 770 | 139 | φ76×4 | 623 | 374 | 1390*300*1180 |
TcSCC-50×4×1 | 24000 | 50 | 1025 | 185 | φ76×4 | 831 | 498 | 1390*300*1435 |
TcSCC-50×4×1.3 | 30000 | 50 | 1282 | 231 | φ76×4 | 1039 | 623 | 1390*300*1692 |
TcSCC-65×4×1.2 | 36000 | 65 | 1184 | 277 | φ76×4 | 1246 | 748 | 1780*300*1594 |
TcSCC-65×4×1.4 | 42000 | 65 | 1380 | 323 | φ89×4.5 | 1454 | 872 | 1780*300*1790 |
TcSCC-65×4×1.6 | 50000 | 65 | 1643 | 384 | φ89×4.5 | 1731 | 1039 | 1780*300*2052 |
TcSCC-65×4×1.8 | 60000 | 65 | 1793 | 420 | φ89×4.5 | 2077 | 1246 | 1780×300×2203 |
TcSCC-75×4×1.8 | 70000 | 75 | 1813 | 490 | φ114×6 | 2423 | 1454 | 2040*300*2223 |
TcSCC-75×4×2.1 | 80000 | 75 | 2072 | 559 | φ114×6 | 2769 | 1662 | 2040*300*2482 |
TcSCC-82×4×2.1 | 90000 | 82 | 2132 | 629 | φ114×6 | 3116 | 1869 | 2222*300*2542 |

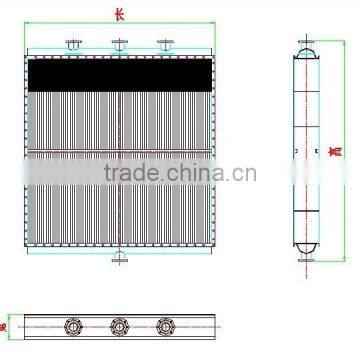

Drawing
Packaging according to custmer's requirement
Shipping Port: Shanghai
Applied in Drying Installations, Food Processing and Chemical Industry etc.
