Industrial Finned Tube Air Cooler, Air Fin Cooler

Industrial Finned Tube Air Cooler, Air Fin Cooler thumbnail-1
Industrial Finned Tube Air Cooler, Air Fin Cooler thumbnail-2
Industrial Finned Tube Air Cooler, Air Fin Cooler thumbnail-3
Industrial Finned Tube Air Cooler, Air Fin Cooler thumbnail-4
Industrial Finned Tube Air Cooler, Air Fin Cooler photo-1
Industrial Finned Tube Air Cooler, Air Fin Cooler photo-2
Industrial Finned Tube Air Cooler, Air Fin Cooler photo-3
Industrial Finned Tube Air Cooler, Air Fin Cooler photo-4
US$ 5,000 - 100,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
Quanbang
Contact Supplier Request Quote Chat Now
Wuxi Quanbang Energy Technology Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Jiangsu, China
Brand Name Quanbang
Model Number GP
Structure Tube Heat Exchanger
Liquid Flow Rate customized
Maximum Working Pressure customized
Weight customized
Dimension(L*W*H) customized
Certification Other, TUV
Warranty 1year
After-sales Service Provided No overseas service provided
  Industrial finned tube air cooler, air fin cooler

Intergrated air coolers with automatic control is to cool the media as requirement in the production process. Mainly replace water cooler in thermoelectric industry for energy-saving goal and also cool waste hot air, coolant oil, waste hot water, liquid in chemical process and heat-producing equipments etc.

Product Description

Feature: good cooling performance, low noise, small vibration, easy instalment and maintenance and energy-saving.

Cooling media: natural air

To be cooled: waste hot air, coolant oil, waste hot water, liquid in chemical process and heating equipment.

Structure: different usage matching different designs of cooling structure, heat exchanger type and raw materials

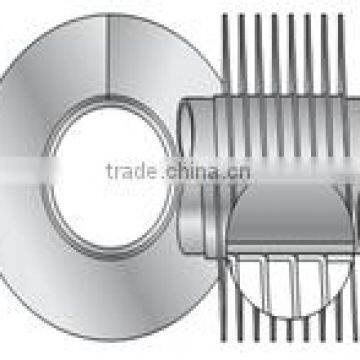

Fin shape:

Industrial finned tube air cooler, air fin cooler

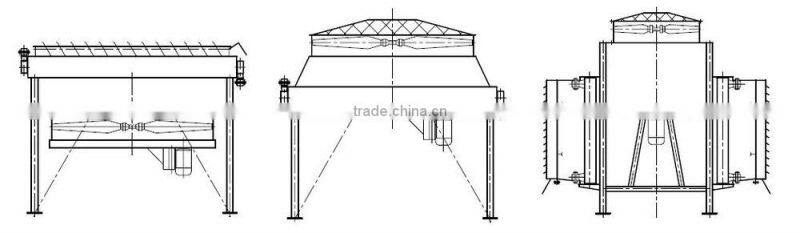

Configurations
 Industrial finned tube air cooler, air fin coolerIndustrial finned tube air cooler, air fin cooler

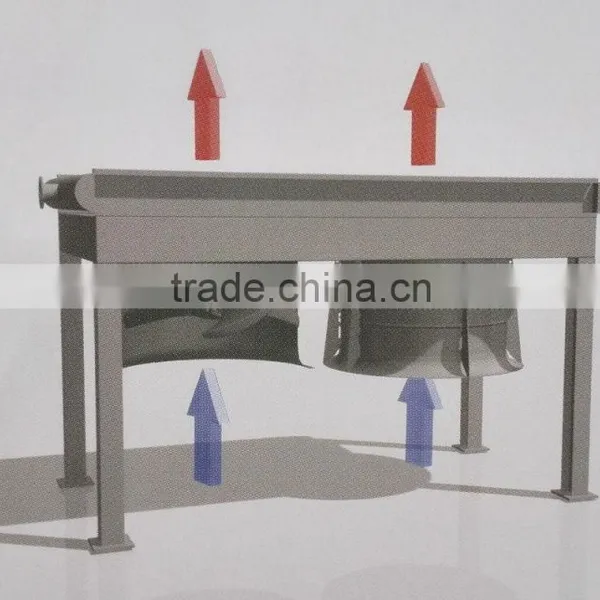

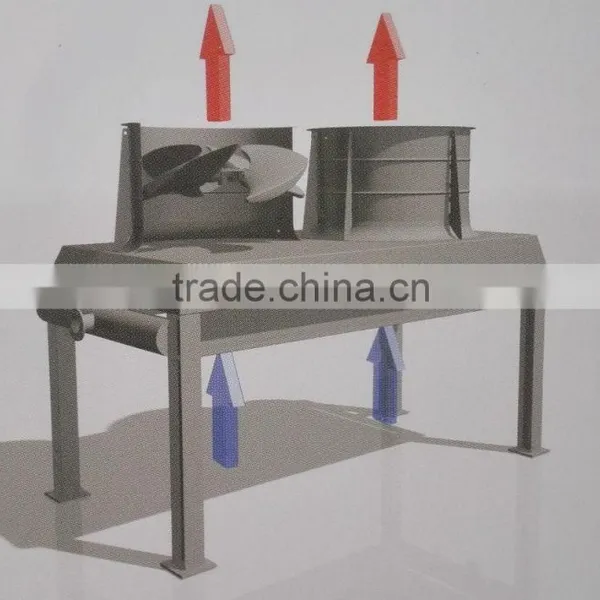

       Horizontal Forced Draft               Horizontal Induced Draft                      Vertical Draft                                A Frame Draft


Performance Parameter


Model









Tubes

Pressure

(MPa)







Tube Rows

Tube Area

(m2)



   Fin Area(m2)

 Equipment

   Net Weight (kg)

Water Weight

(kg)

L Type Fin

DR Type Fin

GP12×3-4-174-1.6S-23.4/L(DR)-I RF-D

186

1.6

4

173



       4067

8500

9068

830

GP12×3-4-174-2.5S-23.4/L(DR)-I RF-D

2.5

8582

9082

GP12×3-4-174-4.0S-23.4/L(DR)-I RF-D

4.0

8835

9325

GP12×3-6-260-1.6S-23.4/L(DR)-I RF-D

279

1.6

6

259



       6060

12210

12880

1240

GP12×3-6-260-2.5S-23.4/L(DR)-I RF-D

2.5

12210

12910

GP12×3-6-260-4.0S-23.4/L(DR)-I RF-D

4.0

12560

13310

GP12×3-8-346-1.6S-23.4/L(DR)-I RF-D

372

1.6





8

346



       8096

15650

16600

1650

GP12×3-8-346-2.5S-23.4/L(DR)-I RF-D

2.5

15740

16664

GP12×3-8-346-4.0S-23.4/L(DR)-I RF-D

4.0

16080

16940

GP12×2.5-4-142-1.6S-23.4/L(DR)-I RF-D

152

1.6

4

142



       3322

7362

7762

680

GP12×2.5-4-142-2.5S-23.4/L(DR)-I RF-D

2.5

7396

7730

GP12×2.5-4-142-4.0S-23.4/L(DR)-I RF-D

4.0

7574

7945

GP12×2.5-6-214-1.6S-23.4/L(DR)-I RF-D

228

1.6

6

214



       5008

10415

11015

1020

GP12×2.5-6-214-2.5S-23.4/L(DR)-I RF-D

2.5

10426

10945

GP12×2.5-6-214-4.0S-23.4/L(DR)-I RF-D

4.0

10660

11218

GP12×2.5-8-285-1.6S-23.4/L(DR)-I RF-D

304

1.6

8

285



       6669

13199

14000

1360

GP12×2.5-8-285-2.5S-23.4/L(DR)-I RF-D

2.5

13352

14100

GP12×2.5-8-285-4.0S-23.4/L(DR)-I RF-D

4.0

13660

14356

GP12×2-4-114-1.6S-23.4/L(DR)-I RF-D

122

1.6

4

114



       2668

6090

6390

550

GP12×2-4-114-2.5S-23.4/L(DR)-I RF-D

2.5

6155

6410

GP12×2-4-114-4.0S-23.4/L(DR)-I RF-D

4.0

6305

6637

GP12×2-6-170-1.6S-23.4/L(DR)-I RF-D

183

1.6

6

170



       2668

8620

9060

820

GP12×2-6-170-2.5S-23.4/L(DR)-I RF-D

2.5

8630

9076

GP12×2-6-170-4.0S-23.4/L(DR)-I RF-D

4.0

8849

9286

GP12×2-8-228-1.6S-23.4/L(DR)-I RF-D

244

1.6

8

228



                    5335

10920

11510

1080

GP12×2-8-228-2.5S-23.4/L(DR)-I RF-D

2.5

10990

11580

GP12×2-8-228-4.0S-23.4/L(DR)-I RF-D

4.0

11220

11850

GP12×1.5-4-84-1.6S-23.4/L(DR)-I RF-D

88

1.6

4

84



1966

4850

5150

400

GP12×1.5-4-84-2.5S-23.4/L(DR)-I RF-D

2.5

4906

5160

GP12×1.5-4-84-4.0S-23.4/L(DR)-I RF-D

4.0

5070

5259

GP12×1.5-6-125-1.6S-23.4/L(DR)-I RF-D

132

1.6

6

125



2925

6836

7210

590

GP12×1.5-6-125-2.5S-23.4/L(DR)-I RF-D

2.5

6812

7346

GP12×1.5-6-125-4.0S-23.4/L(DR)-I RF-D

4.0

7025

7385

GP12×1.5-8-168-1.6S-23.4/L(DR)-I RF-D

176

1.6

8

168



3931

8550

9080

790

GP12×1.5-8-168-2.5S-23.4/L(DR)-I RF-D

2.5

8608

9095

GP12×1.5-8-168-4.0S-23.4/L(DR)-I RF-D

4.0

8814

9253




Packaging & Shipping

Payment Terms: 30% T/T payment in advance, 70% T/T payment before delivery
Packing Condition: standard export packing (wooden packing) or customized packaging



Industrial finned tube air cooler, air fin cooler

ISO Certificate

 Industrial finned tube air cooler, air fin cooler
