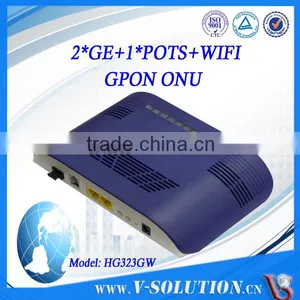

Help CenterOEM Blue Case FTTH 2 Gigabit 1POTS Port 2T2R WiFi GPON ONU Modem
Related Products
-
CE Certificated Blue Case FTTH 2 Gigabit 1FXS Port 2T2R WiFi GPON ONU Mall Compatible With Fiberhome/ZTE/Huawei OLT Quality ChoiceUS$ 1 - 50MOQ: 1 Unit -
Blue Case FTTB 2GE 1FXS Ports 2T2R WiFi GPON Optical Network Unit Compatible With ZTE OLTNegotiableMOQ: 1 Unit
-
CE Certification! Blue Case FTTH 2GE 1POTS Port 2T2R WiFi GPON Optic Network Unit Compatible With Huawei OLTNegotiableMOQ: 1 Unit
-
CE Certificated Blue Case FTTH 2GE 1FXS Ports 2T2R WiFi GPON ONU Compatible With Fiberhome OLTNegotiableMOQ: 1 Unit
-
FTTH 4GE+WiFi GPON ONU Wireless Router FTTH WiFi Modem Compatible With Huawei/ZTE/Fiberhome OLT Made in ChinaNegotiableMOQ: 1 Piece
VS Let More Partners Adopt V-S' Solution
FTTH 2GE + 1FXS + 2T2R WiFi GPON ONU
Parameter Name |
Hardware Parameter |
Chipset |
BCM68385F Series |
PON |
SC single-mode/single fiber, Downstream rate 2.5Gbps, Upstream rate 1.25Gbps |
Wavelength |
Tx 1310nm, Rx 1490nm |
Sensitivity |
<-28dBm(CLASS B+) |
|
Wireless
|
Compliant with IEEE802.11b/g/n, 300Mbps, 2T2R 2 internal antennas
|
Optical Type |
SC/PC |

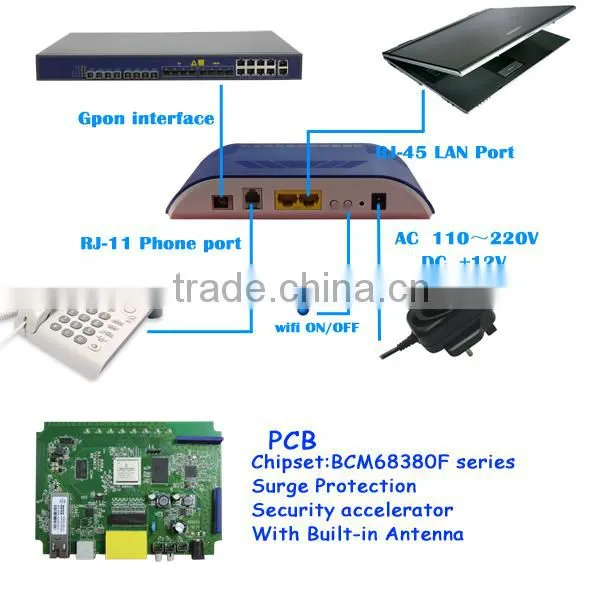

Interface Type |
2*10/100/1000Mbps
Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connector
1 POTS, RJ11 connector |
|
Indicators |
2*10/100/1000Mbps Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connector 1 POTS, RJ11 connector |
Parameter Name |
Hardware Parameter |
|
|
EPON |
GPON |
LAN |
Support Port rate limiting Support Loop detection |
|
VLAN |
Support VLAN tag mode Support VLAN transparent mode Support VLAN trunk mode Support VLAN translation mode Support VLAN QinQ mode |
|
Multicast |
Support IGMPv1/v2/v3 Support IGMP Proxy and MLD Proxy Support IGMP Snooping and MLD Snooping |
|
QoS |
Support 4 queues Support SP and WRR Support 802.1P Support DSCP |
|
L3 |
Support IPv4,IPv6 and IPv4/IPv6 dual stack Support DHCP/PPPOE/Statics Support Static route Support NAT Support Bridge, Route ,Route and Bridge mixed mode Support DMZ Support DNS Support ALG Support UPnP Support Virtual Server |
|
DHCP |
Support DHCP Server Support DHCP Relay |
|
VOIP |
Support SIP protocol Support Voice coding: ITU-T G.711/G.723/G.726/G.729, auto-negotiate with call agent Support Echo cancellation exceeding ITU-T G.165/G.168-2002, up to 128ms tail length Support high/low speed fax/Modem, bypass fax, and T38 fax Support InBand / RFC2833/SIP INFO, MD5 authentication, call forward, call waiting, hot-line call, and all kinds of value-added voice service. Multi-party conferencing Support Line testing according to GR-909 |
|
Performance |
Data loss: <1*10E-12 Call loss: <0.01% |
|
Security |
Support Firewall Support Mac filter Support ACL Support URL filter |
|
|
Wireless
|
Support 802.11b/g/n and Mixed mode
Support 4 SSID
Support No-auth,WEP,WPA-PSK and WPA2-PSK function with AES,TKIP encryption
|
|
Management |
Support CTC OAM 2.0 and 2.1 |
Support OMCI(ITU-T G.984.x) |
|
Support WEB Support TR069 Support TELNET Support CLI |
|
Compatibility
Manufacturers |
Model |
Compatibility |
HuaWei |
M5680T(M5600T Oversea) |
Fully compatible |
ZTE |
C300/C220 |
|
FiberHome |
AN5516 Series |
|
Gcom(New GreenNet) |
EL5600-04P/08P |
