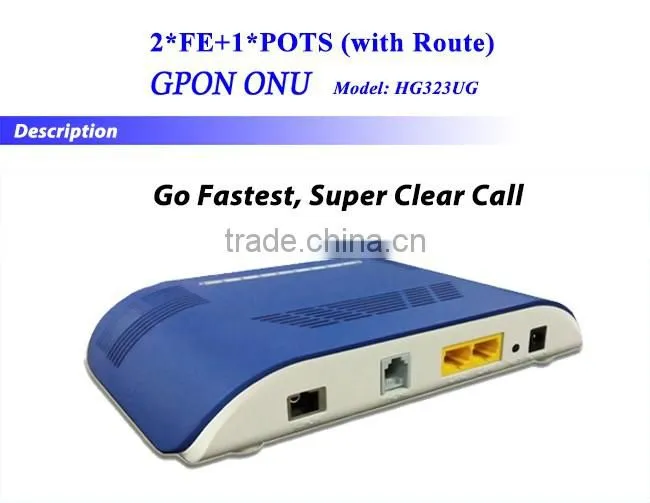

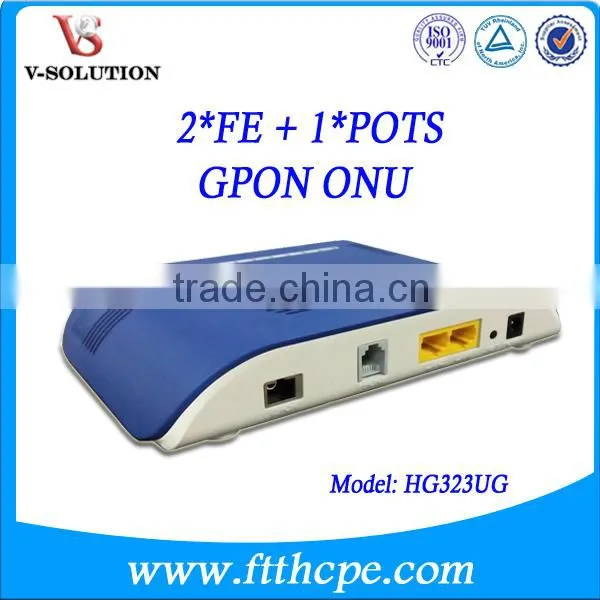

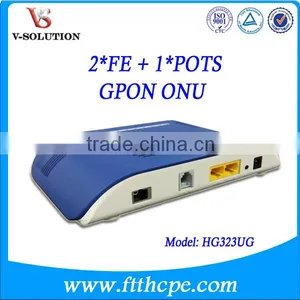

Introduction
GPON ONT/HGU is designed for fulfilling FTTH (Fiber To The Home) and triple play service demand of fixed network operators. It is developed wholly by Guangzhou V-Solution. The box is based on the mature Gigabit GPON technology, which has high ratio of performance to price, Layer 2&3 and high quality VoIP as well. It is highly reliable and easy to maintain, with guaranteed QOS for different service. And It is fully compliant with technical regulations such as ITU-T G.984.x and technical requirement of GPON Equipment (V2.1 and above version) from China Telecom.
Special features
* Plug and play, integrated auto detecting, auto configuration, and auto firmware upgrade technology.
* Integrated OMCI and TR069 remote configuration and maintenance function.
* Support rich QinQ VLAN, DHCP Server/Relay and IGMP/MLD snooping multicast feature.
* Support fiber transceiver diagnostic monitoring, fiber transmitter disable remotely.
* Fully compatibility with OLT based on Broadcom chipset etc.
* Support NAT, Firewall function.
* Support IPv4 and IPv6 dual stack.
* Integrated line testing compliant with GR-909 on POTS.
* The WAN port supports bridge, router and bridge/router mixed mode.
Technical items |
Description |
|
HG323UG |
HG323UGG |
|

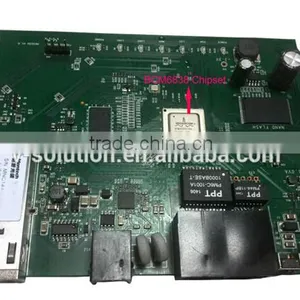

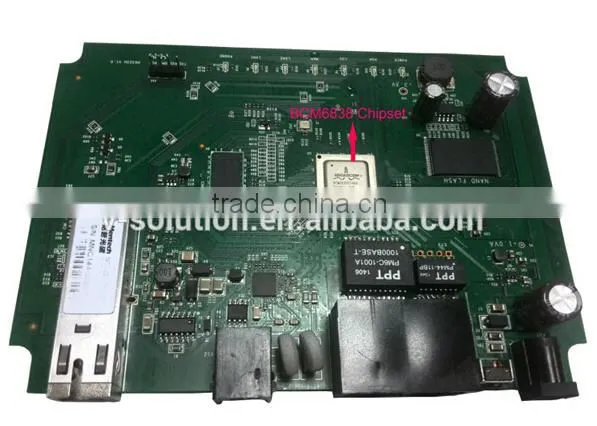

| Chipsets | BCM68385 | |
| Optical interface | 1 GPON interface, SC single-mode/single-fiber, Downstream rate 2.5Gbps, Upstream rate 1.25Gbps | |
| Wavelength | EPON Tx 1310nm, EPON Rx 1490nm | |
| Optical interface | SC/APC connector | |
| RX sensitivity | < -25dBm @ 1490nm | |

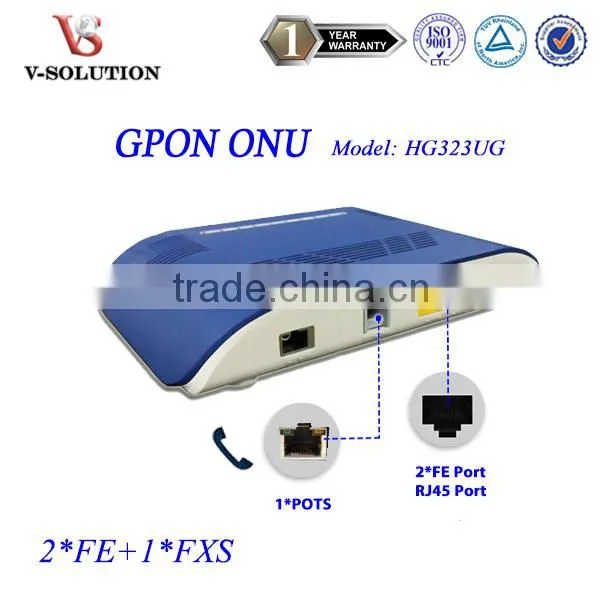

| LAN interface | 2 10/100Mbps auto adaptive Ethernet interfaces,RJ45 | 1 10/100/1000Mbps + 1 10/100Mbps auto adaptive Ethernet interfaces,RJ45 |
| Downstream POTS interface | 1 FXS, RJ11 connectors | |
| Indicators | 7 indicators, for status of power supply, PON, LAN and POTS . | |
| DC power supply | +12V, external AC-DC power adaptor | |
| Power consumption | ≤10W | |
| Operating condition | Operating temp: -5~+55℃ Operating humidity:10~90%(non-condensed) |
|
| Storing condition | Storing temp: -30~+60℃ Storing humidity:10~90%(non-condensed) |
|
| Dimension | 160mm*32mm*115mm(W*H*D) | |
| Net weight | 0.3Kg | |
Data Service Functions
1) Full speed non-blocking switching.
2) 2048 MAC address table.
3) 64 full range 4095 VLAN ID
4) Support VLAN QinQ, transparent, tag, translation, trunk, etc.
5) Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc.
6) Support auto polarity detection of Ethernet ports (AUTO MDIX).
7) Integrated IEEE802.1p QoS with four level priority queues.
8) Support IPv4 IGMP snooping and IPv6 MLD snooping.
9) Support bridging, router and bridging/router mixed mode.
POTS Service Functions
1) Call protocol: SIP (IMS compatible), seamless compatible with all popular call agent.
2) Integrate heartbeat function and support active/standby call agent.
3) Voice coding: ITU-T G.711/G.723.1(5.3K/6.3Kbit/s)/G.729, auto-negotiate with call agent.
4) Echo cancellation exceeding ITU-T G.165/G.168-2002, up to 128ms tail length.
5) Support high/low speed fax/Modem, bypass fax, and T38 fax.
6) Support RFC2833 and redundant RFC2833, difference rings, MD5 authentication, call forward, call waiting, hot-line call, alarm clock, and all kinds of value-added voice service.
7) Multi-party conferencing.
8) Line testing according to GR-909.
9) IP address assignment: dynamic PPPoE/DHCP Client and static IP.
10) Support WEB, CLI, TR069.
11) Integrated OAM, XML, DHCP option 66 & 67 for auto configuration and firmware upgrade.
12) Call loss is less than 0.01%.
