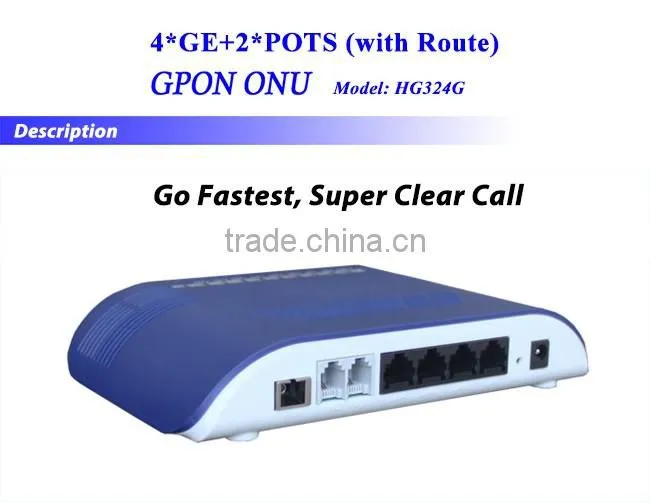

4GE+2FXS GPON ONT Fiber Optical VoIP Home Gateway

Parameter

Hardware Parameter

GPON

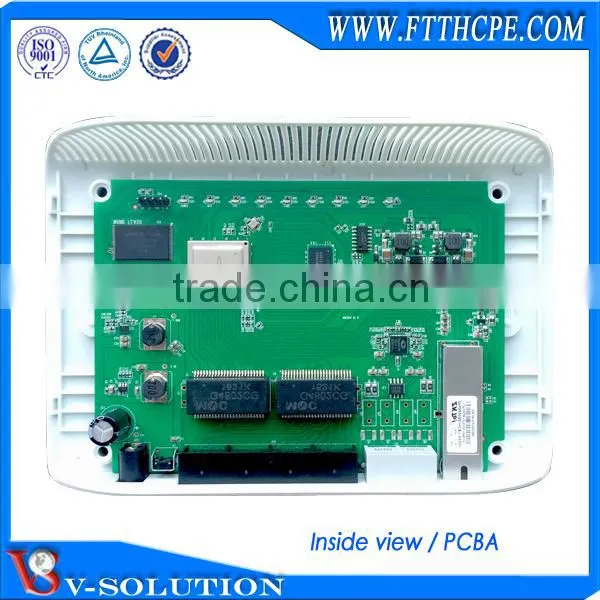

Chipset

BCM68380 Series

PON

SC single-mode/single-fiber, symmetric 1.25Gbps

SC single-mode/single-fiber, Downstream rate 2.5Gbps, Upstream rate 1.25Gbps

Wavelength

Tx 1310nm, Rx 1490nm

Sensitivity

<-27dBm(PX20+)

<-27dBm(CLASS B+)

Optical Type

SC/PC

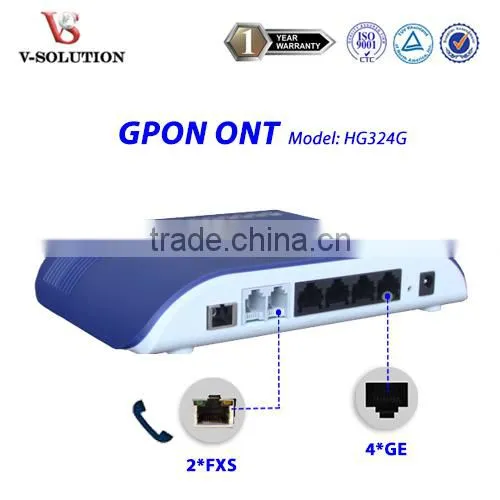

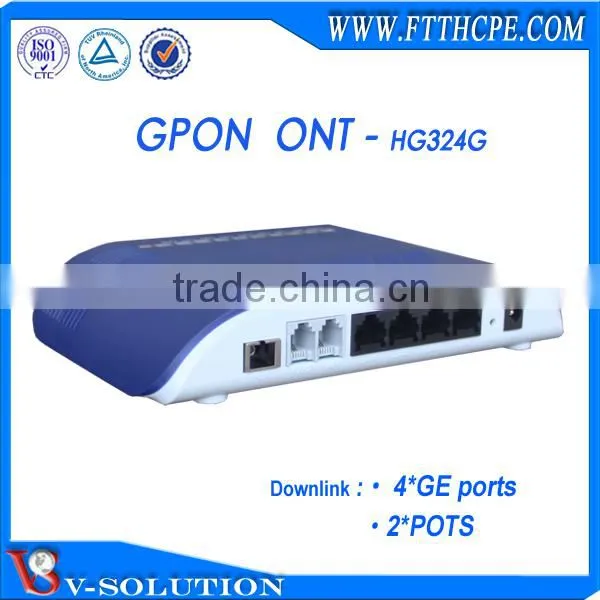

Interface Type

4*10/100/1000Mbps

Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connector

2 POTS, RJ11 connector

Indicators

9, For POWER,PON ,LOS,WAN,Lan,Phone

Parameter

Software Parameter

GPON

LAN

Support Port rate limiting

Support Loop detection

VLAN

Support VLAN tag mode

Support VLAN transparent mode

Support VLAN trunk mode

Support VLAN translation mode

Support VLAN QinQ mode

Multicast

Support IGMPv1/v2/v3

Support IGMP Proxy and MLD Proxy

Support IGMP Snooping and MLD Snooping

QoS

Support 4 queues

Support SP and WRR

Support 802.1P

Support DSCP

L3

Support IPv4,IPv6 and IPv4/IPv6 dual stack

Support DHCP/PPPOE/Statics

Support Static route

Support NAT

Support Bridge, Route ,Route and Bridge mixed mode

Support DMZ

Support DNS

Support ALG

Support UPnP

Support Virtual Server

DHCP

Support DHCP Server

VOIP

Support SIP protocol

Support Voice coding: ITU-T G.711/G.723/G.726/G.729, auto-negotiate with call agent

Support Echo cancellation exceeding ITU-T G.165/G.168-2002, up to 128ms tail length

Support high/low speed fax/Modem, bypass fax, and T38 fax

Support InBand / RFC2833/SIP INFO, MD5 authentication, call forward, call waiting, hot-line call, and all kinds of value-added voice service. Multi-party conferencing

Support Line testing according to GR-909

Performance

Data loss: <1*10E-12

Call loss: <0.01%

Security

Support Firewall

Support Mac filter

Support ACL

Support URL filter

Management

Support CTC OAM 2.0 and 2.1

Support OMCI(ITU-T G.984.x)

Support WEB

Support TR069

Support TELNET

Support CLI

Manufacturers

Model

Compatibility

HuaWei

M5680T(M5600T Oversea)

Fully compatible

ZTE

C300/C220

FiberHome

AN5516 Series

Gcom(New GreenNet)

EL5600-04P/08P
