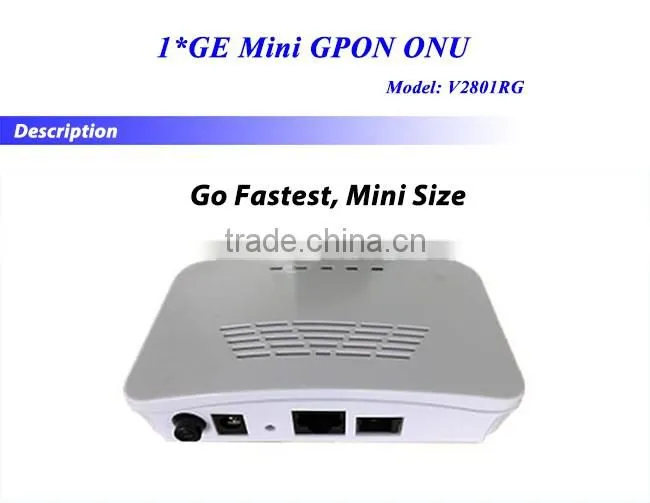

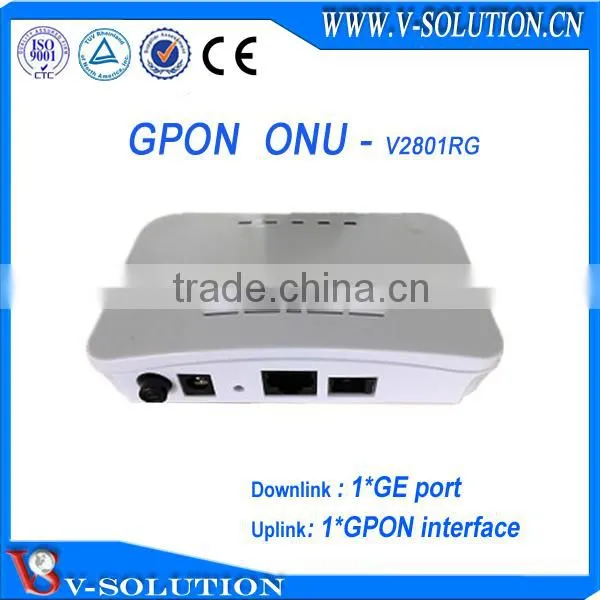

CE Certification Mini White Case Realtek Chipset High Speed 1GE GPON ONU

Name: CE Certification Mini White Case Realtek Chipset High Speed 1GE GPON ONU
Brand: V-Solution
SKU: 124919669

CE Certification Mini White Case Realtek Chipset High Speed 1GE GPON ONU thumbnail-1

CE Certification Mini White Case Realtek Chipset High Speed 1GE GPON ONU thumbnail-2

CE Certification Mini White Case Realtek Chipset High Speed 1GE GPON ONU thumbnail-3

CE Certification Mini White Case Realtek Chipset High Speed 1GE GPON ONU photo-1

CE Certification Mini White Case Realtek Chipset High Speed 1GE GPON ONU photo-2

CE Certification Mini White Case Realtek Chipset High Speed 1GE GPON ONU photo-3

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

V-Solution

Model Number:

V2801RG

Contact Supplier Request Quote Chat Now

Guangzhou V-Solution Telecommunication Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name V-Solution

Model Number V2801RG

V2801RG is GPON ONT designed for fulfilling FTTH ultra-broadband access request of home and SOHO users. It is based on the stable and mature GPON technology, which has high performance/price ratio, and the technology of layer 2 Ethernet switch as well. It is highly reliable and easy to maintain, with guaranteed QoS, and fully compliant to ITU-T G.984 GPON standards.

Parameter Name	Hardware Parameter
Parameter Name	GPON
Chipset	RealTek RTL9601B Series
PON	SC single-mode/single-fiber, Upstream 1.244Gbps, Downstream 2.488Gbps.
Wavelength	Tx 1310nm, Rx 1490nm
Sensitivity	<-28dBm
Overload	>-8dBm
Optical Type	SC/PC
Interface Type	1*10/100/1000Mbps Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connector
Indicators	5, For POWER,LOS,PON ,Link,System

Parameter Name	Hardware Parameter
Parameter Name	GPON
Basic	Support auto-detecting, auto-configuration, and auto firmware upgrade Support authentication SN/Psw/Loid/Loid+Psw Support Triple Churning Support DBA bandwidth
Alarm	Support Dying Gasp Support PortLoopDetect Support Eth Port Los
LAN	Support Port rate limiting Support Loop detection Support Flow control Support Storm control
VLAN	Support VLAN tag mode Support VLAN transparent mode Support VLAN trunk mode(max 8 vlans) Support VLAN 1:1 translation mode(max 8 vlans)
Multicast	Support IGMPv1/v2 Support IGMP Snooping Max Multicast vlan 8 Max Multicast Group 64
QoS	Support 4 queues Support SP and WRR Support 802.1P Classification: D-MAC/S-MAC/D-IP/S-IP/L4-S-Port/L4-D-Port/Vlan/Cos/Ether Type/DSCP

Management	Support ITUT984.x OMCI Support WEB Support CLI
Throughput	Upstream >900Mbps Downstream >960Mbps
Packet lost	14Hours /Lost 0

* Plug and play, integrated auto-detecting, auto-configuration, and auto firmware upgrade, etc.
* Integrated OMCI remote configuration and maintenance function.
* Functions like transceiver diagnostic monitoring, transmitter disable, etc.
* Fully compatibility with OLT based on Broadlight/Broadcom chipset.
* Support port monitoring, port mirroring, port rate limiting, port SLA, etc.
* Support auto polarity detection of Ethernet ports (AUTO MDIX).

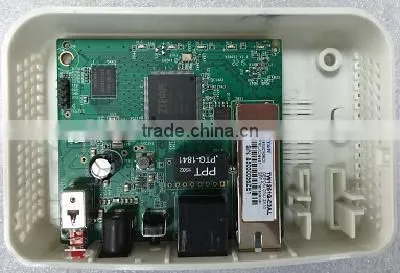

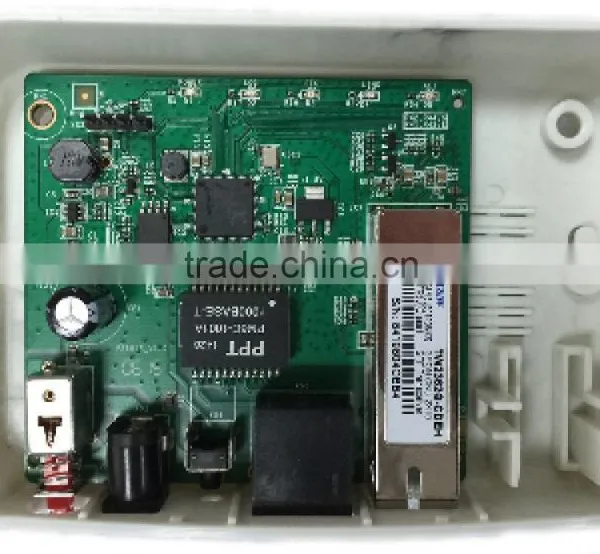

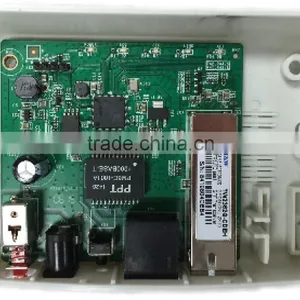

Inside View
