Application of EL wire
1.Indoor advertisement: can be made into various types of dynamic text patterns ,applicated on store family showcase, door decoration, furniture edges, wall design, roof design, Trees ,grass and so on,
2. Transport decoration: internal and external decoration of Travel and ship, the functional profile identification of cage door instrument instruction, digital patterns show halted security automatic shape sign, interior logo of bulletin automotive, bicycles, etc.
3. Security marking and instructions: street fence, stair handrail and ground instruction, continuous channel logos, exit signs, outdoor temporary night warning lines, Police line of sight of subway, stations, pier, construction sites and equipment etc.
4. Electronics and appliance product applications: industrial machinery and equipment which provide electronic display mark, electric toys, arts and crafts,
Sports equipment, sports venues, security clothing, hats, bags, household appliances display instructions, military equipment, etc.
5. Innovation and fashionable glowing application.
1. Main performance of High Brightness EL wire
1.1 Working voltage:50-120V,optimum operating voltage: 110V.
1.2 Working frequency:800MHZ-1200HZ,optimal frequency:1000Hz.
1.3 Static capacitance:6.5nf/m(20°C RH<80%).
1.4 Luminance intensity:200cd/m2(110V 1000HZ).
1.5 Power consumption:43mW/M (110V 1000HZ).
1.6 Life span(normal temperature and moisture): 6000-7000 hours(100V 1KHz).
1.7 Continuous working temperature/relative humidity:-20°C ~ +70°C/RH<90%.
1.8 Storage temperature/relative humidity:-10°C ~ +40°C/RH<65%.
2.Round Shape Basic Specifications of diameter:1.3mm,2.3mm,3.2mm,5.0mm
2.1 EL wire Max Length: 100M/Roll
2.2 EL wire Basic color: Red/Yellow/Blue/Green/White/Pink/Purple/Orange/Lemon/Grass Green/Sky Blue/Fluorescent Red/Transparent Blue
2.3 Notice: I can make it according to the customer need Diameter. But Diameter need within 1.3mm - 5.0mm (MOQ: 500M)

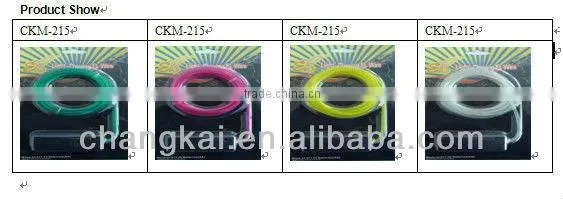

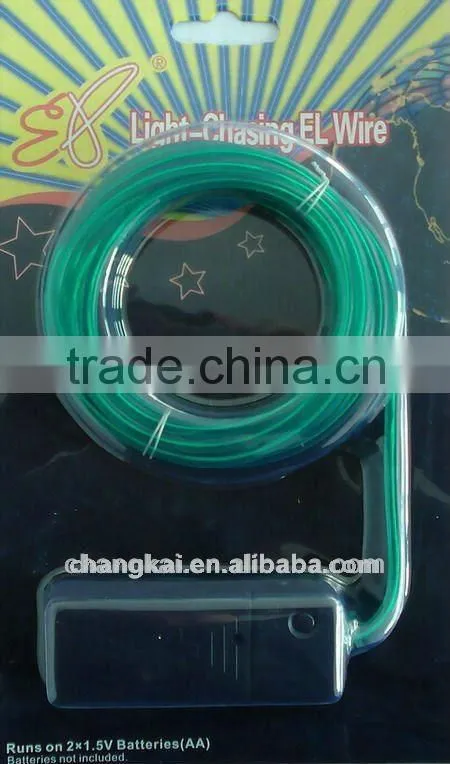

3. Picture show:
4. Characters:
1. Engergy saving ,high brightness
2. Colouful with soft light
3. light weight ,water proof
4. flexbile and can be easily bent ,curved ,cut ,knotted
5. High brightness ,polar wire
6. CE/ROHS/UL/EMC standards
7. Waterproof
8. Protect the end of wire
5. Our advantages:
(1) Huangshi Changkai Electrical Co.,ltd has specialized in EL products above 10 years and has enjoyed a high reputation in the field.
(2) EL chasing wire have USA Invention Patent .USA Patent NO: US 7,671,279.
(3) Powerful production capacity:Our factory can manufacture 10000 meters EL chasing wire of different diameters everyday.
(4) Enthusiastic service and fast delivery.
