Specifications
factory sell max. lift 5.5m reach forklift new reach stacker priceDuarble material
Europe part
Competitive price
With CE

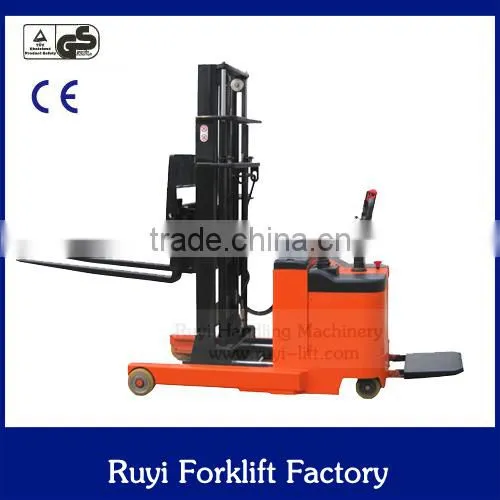

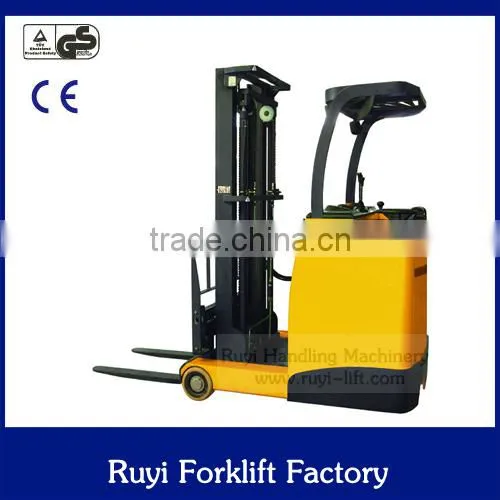

factory sell max. lift 5.5m reach forklift new reach stacker price
Basic Information
| Factory | Ruyi Handling Machinery Factory |
| Factory Location | Taizhou |
| Product Name | factory sell max. lift 5.5m reach forklift new reach stacker price |
| Model | CDD(RT) |
| Lifting Height | 1mts~5.5mts |
| Load Capacity | 500kg~2000kg |
| MOQ | 1 PC |
| Warranty |
12 months (not include the easy-worn parts) Extended Warranty for optional |
| Battery |
Lead acid battery, can full charge-discharge 750 times; maintenance-free battery for optional |
| Payment | T/T,L/C,Western Union |
| Delivery Time | 20 workdays |

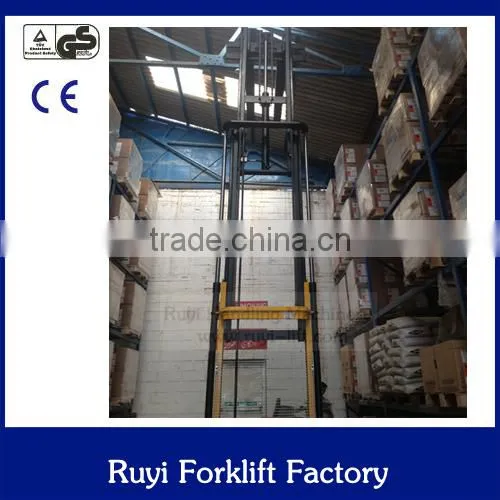

Pictures
Technical Data
We accept any custom-made specification of heavy duty 5.5m electric reach truck
Hereinafter the parameters are only for reference.
| Reach Forklift Power Lift, Power Move | Unit | CDD1530(RT) | CDD1545(RT) | CDD2030 (RT) | CDD2045 (RT) |
| Operator type | - | Standing Type | |||
| Rated load capacity | Kg | 1500 | 1500 | 2000 | 2000 |
| Lifting height | mm | 3000 | 4500 | 3000 | 4500 |
| Traveling speed | Km/h | 8.8 | 8.8 | 8.5 | 8.5 |
| Load center | mm | 500 | 500 | 500 | 500 |
| Forward distance | mm | 600 | 600 | 600 | 600 |
| Overall length | mm | 2100 | 2100 | 2100 | 2100 |
| Overall width | mm | 1220 | 1220 | 1220 | 1220 |
| Mast lowered height | mm | 2120 | 2200 | 2120 | 2200 |
| Free lift height | mm | 330 | 1550 | 330 | 1550 |
| Mast extended height | mm | 3950 | 5500 | 3950 | 5500 |
| Standard fork L*W | mm | 900×100×35 | 900×100×35 | 900×120×40 | 900×120×40 |
| Fork Overall width range | mm | 230 ~ 610 | 230 ~ 610 | 270 ~ 610 | 270~ 610 |
| Fork min. height | mm | 75 | 75 | 80 | 80 |
| Fork angle (Forward/Backward) | mm | 3/5 | 3/5 | 3/5 | 3/5 |
| Driving motor | kW | 3.7 | 3.7 | 3.7 | 3.7 |
| Lifting motor | kW | 8.2 | 8.2 | 8.2 | 8.2 |
| Battery(Voltage/Capacity) | V/Ah | 48/390 | 48/390 | 48/420 | 48/420 |
| Steering system | - | Hydraulic / Electronic power steering | |||
| Controling type | - | AC/DC | |||
| Weight | Kg | 2500 | 2750 | 2600 | 2850 |
Small Electric Forklift (Hot sell new model !!!)
Small Electric Forklift (Old model, perfect performance, best price!!!)
| Operator type | Unit | Walkie/Standing Type | |||||||
| Traveling speed | km/h | 6/5 | |||||||
| Lifting speed | mm/s | 90/125 | |||||||
| Load center | mm | 500 | |||||||
| Standard fork L*W | mm | 900×100 | |||||||
| Fork overall width | mm | 230~600 | |||||||
| Fork min. height | mm | 75 | |||||||
| Braking type | - | Electromagnetic braking | |||||||
| Controling type | - | AC/DC | |||||||

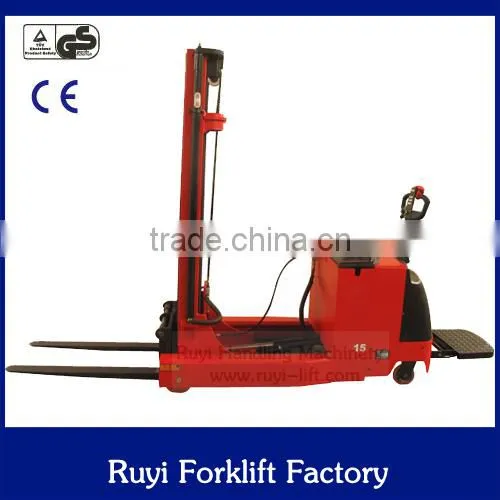

| Electric Reach Stacker | Unit | CDD10RT30 | CDD10RT45 | CDD13RT30 | CDD13RT45 |
| Rated load capacity | Kg | 1000 | 1000 | 1300 | 1300 |
| Lifting height | mm | 3000 | 4500 | 3000 | 4500 |
| Forward distance | mm | 550 | 550 | 550 | 550 |
| Mast lowered height | mm | 2120 | 2150 | 2120 | 2150 |
| Free lift height | mm | - | 1550 | - | 1550 |
| Mast extended height | mm | 3950 | 5400 | 3950 | 5400 |
| Overall length | mm | 2150 | 2150 | 2150 | 2150 |
| Overall width | mm | 1100 | 1100 | 1100 | 1100 |
| Turning radius | mm | 1500 | 1500 | 1500 | 1500 |
| Fork angle (Forward/Backward) | mm | 3/5 | 3/5 | 3/5 | 3/5 |
| Driving motor | kw | 1.5 | 1.5 | 1.5 | 1.5 |
| Lifting motor | kw | 3 | 3 | 3 | 3 |
| Weight | kg | 1580 | 1780 | 1780 | 1980 |

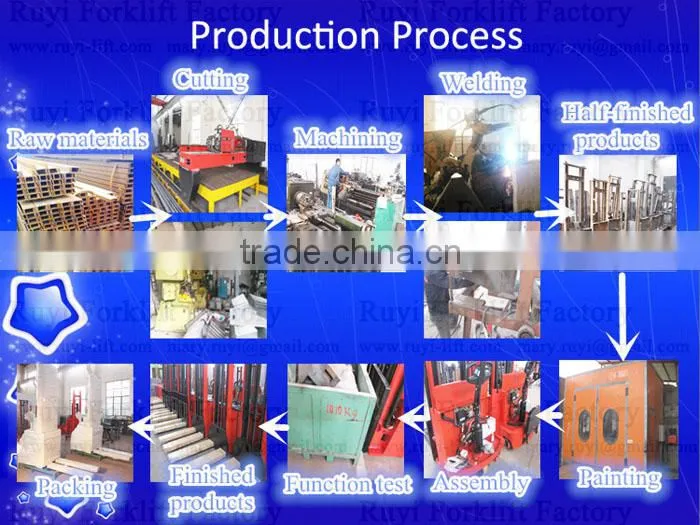

Production Process
Services
1. We supply spare parts free for one year, and supply the technical supporting all the time.
2. As a factory, we provide good after service,we can arrange spare parts in 24 hours.
3. All emails will be replied in 24 hours.
4. OEM service provide, print your own design and pattern on the product
5. Protection of your sales area, ideas of design and all your private information.
6: Price-lists are available,welcome to ask.

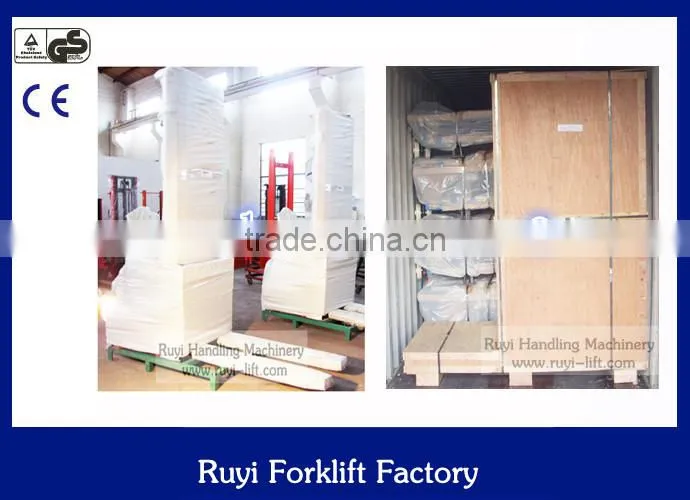

Packaging
1)Normal Packing.
Inner Pack: Bubble Film + PP Knitted Band
Outer Pack: Wrapping Film + Iron Pallet
2)Plywood case packing for optional
Shipping
The transportation depends on client's choice, usually by sea, by train ,by air etc.You also can choose other shipping method and inform us before shipment.

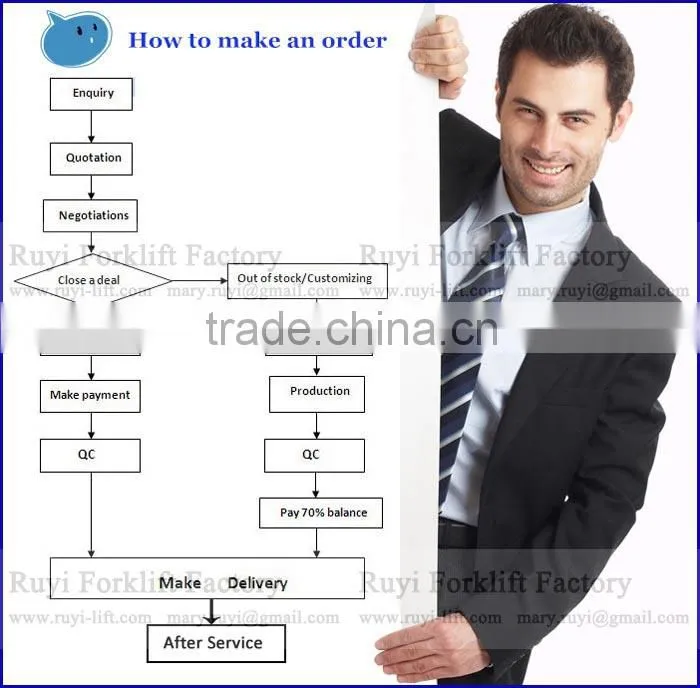

How to make an order
To get the Prompt & Accurate Quotation , please tell us:
Product Name?
Hand Type? Semi Electric Type or Full Electric Type?
Load Capacity?
Lifting height?
Have other special demands?
Brief introduction
Ruyi Factory is professional in producing material handling machinery and material lifting machinery ,such as Electric Stacker, Electric Pallet Truck, Electric Order Picker, Hand Stacker, Hand Pallet Truck, Scissor Lift,Work Platform etc.
1.The lifting height of Electric Stacker is 1m ,1.6m, 2.5m,3m ,3.5m,4.5m,5m,5.5m and so on. Max lifting height can reach 5.8m.
2.The load capacity of Electric Stacker is 500kg,1000kg,1500kg,2000kg and so on. Max load capacity can reach 3000kg. Electric Pallet Truck max load capacity can reach 10000kg.
3.The Electric Stacker is easy to control. Even the an femal worker can drive it easily.
4.Power supply : 110v, 220V,240v, 400v etc. We will customize the charger to meet clients' local power.
