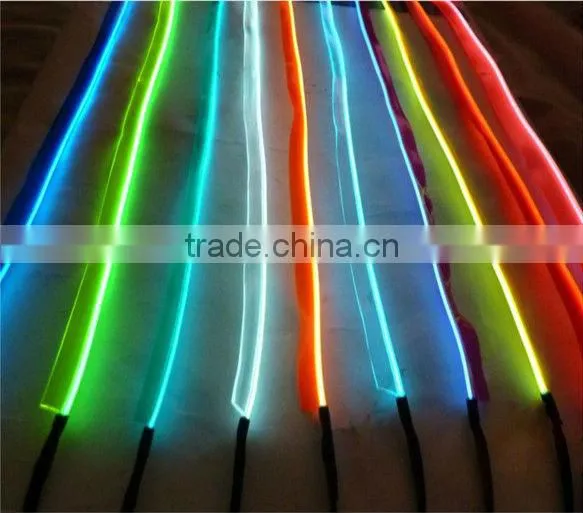

Long Lifetime EL Welted Single Core Wire in EL Products
1.Technical parameters of our High brightness EL wire:
(1) Working voltage:50-120V; Optimal operating voltage:110V.
(2) Working frequency: 800MHZ-1200HZ; Optimal frequency:1000Hz.
(3) Static capacitance: 6.5nf/m(20°C RH<80%).
(4) illumination intensity: 200cd/m2(110V 1000HZ).
(5) Power consumption: 43mW/M (110V 1000HZ).
(6) Lifetime: 6000-7000 hours(100V ,1KHz)
(7) Working temperature: -20°C~+70°C.
(8) Relative humidity: RH<90%.
(9) Storage temperature:-10°C~+40°C
(10) Storage relative humidity:RH<65%.
2.Basic specification of High Brightness EL wire with single welted.
(1)Basic diameter:2.3mm
(2)Mainly color: Red, Lemon, Aqua, Orange, Grass green, Blue, Purple, Pink, Gold Yellow , Fluorescent Red, White.
(3) Max Length: 100M/Roll
(4)Notice: We can make it according to the customer need Diameter and Size, But MOQ: 500M
3.Our advantages:
(1) Huangshi Changkai Electrical Co.,ltd has specialized in EL products above 10 years and has enjoyed a high reputation in the field.
(2) Our company produced EL wire have US Invention Patent and China Invention Patent.
US Invention Patent No.: US 6.960,725 B2
China Invention Patent No.: ZL 03 1 40836.2
(3) Diversified diameters and colors.
Basic diameter:2.3mm
Main colors:Red, Lemon, Aqua, Orange, Grass green, Blue, Purple, Pink, Gold Yellow , Fluorescent Red, White.
(4) Powerful production capacity:Our factory can manufacture 2000 meters EL wire of different colors everyday.
(5) Enthusiastic service.
