LZ0101 Tungsten Carbide Twist Drill Bit

LZ0101 Tungsten Carbide Twist Drill Bit thumbnail-1
LZ0101 Tungsten Carbide Twist Drill Bit photo-1
US$ 7 - 100 MOQ: 20 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
KW
Model Number:
LZ0121
Contact Supplier Request Quote Chat Now
Shenzhen Lizuan Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name KW
Model Number LZ0121
Type Twist Drill Bit
Material Tungsten Carbide

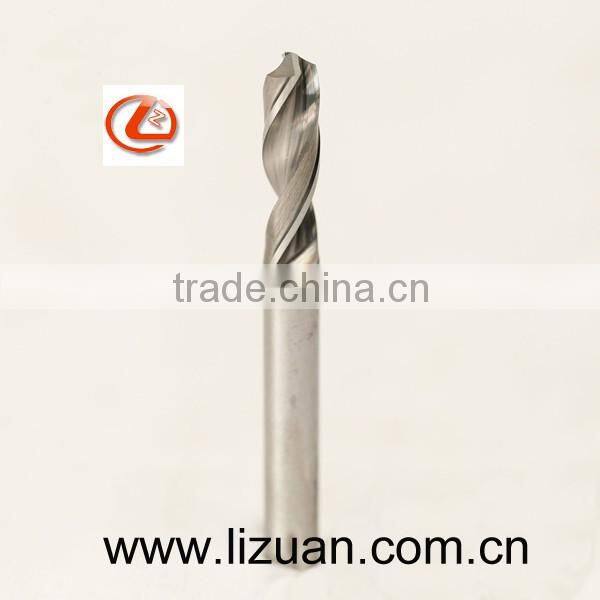

LZ0101 Tungsten carbide Twist drill bit



This tool is designed for forming clocks, glasses frames and other materials drilling with good finishing. The parameters are our standard size. Welcome to customize.



 LZ0101 Tungsten carbide Twist drill bit LZ0101 Tungsten carbide Twist drill bit

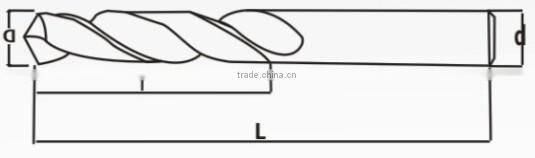

Size / Specification
Description Item no. θ Flute diameter Shank diameter Flute length Overall length
(mm) (mm) (mm) (mm)
Carbide Twist drill bit LZ0101 15 30° 1.5 1.5 10 30
LZ0101 16 30° 1.6 1.6 10 30
LZ0101 20 30° 2 2 12 38
LZ0101 25 30° 2.5 2.5 14 38
LZ0101 30 30° 3 3 16 46
Raw materialfrom Kennametal or Sumitomo LZ0101 35 30° 3.5 3.5 16 46
LZ0101 40 30° 4 4 22 55
Designed for processing superhard materials LZ0101 45 30° 4.5 4.5 22 55
LZ0101 50 30° 5 5 26 62
LZ0101 55 30° 5.5 5.5 26 62
LZ0101 60 30° 6 6 28 66
LZ0101 65 30° 6.5 6.5 28 66
LZ0101 70 30° 7 7 34 74
LZ0101 80 30° 8 8 37 79
LZ0101 90 30° 9 9 40 84
LZ0101 100 30° 10 10 43 89
LZ0101 110 30° 11 11 47 95
LZ0101 120 30° 12 12 51 100



We make custom cutting tools to customer's drawings or specifications.



Our engineers provide detailed tool sizes and speci Custom Customized Non Standard Cutting Tools fications according to customers' product type, machine and processing requirements.





Advantages

Professional Design

The Company has its special drafting and designing department. On the premises of guaranteed quality and service life, the tools are designed to target good cutting performance, proper structure, repeated usage, minimized use cost and better support for customers’ production.



Project Development

Besides designing non-standard tools, the Company, depending upon its epitomized experience, is also able to provide complete metal processing plans for domestic and international customers on the basis of just one supplied part or drawing. Its efficient elite team of project development can efficiently organize, consolidate and reasonably allocate resources as required by a customer, thinking on the customer’s side and making the best project plan (cost performance, processing efficiency and precision) for the customer.



Product R&D

With its start in manufacture of usual non-standard precision tools, the Company is constantly improving itself in the production process, which can be proven by that it has developed businesses of PCD artificial diamond tools, combined-type non-standard tools, natural diamond tools. Now the Company is further exerting itself to work on equipment development, attempting at developing a brand-new market.



Efficient Production

The Company has always been proud of its advantage in the delivery period. Through continuously-improved site management and process reengineering, the Company has always maintained its delivery period 70% faster than the industrial average level. Customers’ long-term favour and praise is the best interpretation of the Company’s value.



Excellent Equipment

A complete set of top processing equipments which the Company has imported from Japan, Germany, and Taiwan can meet the peak demand for precision and complexity in processing and production in a complete way. The Company has also introduced the high-precision detecting instruments like the laser measuring instrument and the dynamic balance detector from Germany, to ensure high-precision and quality detecting means and satisfy customers’ demands for high-precision processing.



To further achieve the objective “Fuller, Exacter, Faster, Better”, the Company has built its own processing sample center so as to provide the customers with better efficient cutting tools.







FAQ



1. Are you a manufacturer? Do you own any factories?

We are Professional manufacturer, with more than 15 years experience in this field. Yes we work in our own factory.

2. What machine you use?

TTB & ANCA &Michael Deckel& Rollomatic, Zoller detection machine &PG1000 Checking machine.



3. Do you make OEM?

Yes, we do. We have laser machine, can laser your logo and sizes on the body of milling cutter, also can print labels.

4. Will you attend International Exhibition?

Yes, we had attended exhibitions in Germany(EMO), Indonesia, Malaysia .Russia. India, Thailand, Vietnam, Taiwan, etc.



5. Can you produce carbide Special Tool?

Yes We can. In fact we have our advantages in making non-standard cutting tools according to customers' drawing and sample.



6. Have any certificate of your factory?

Our factory management has been accredited with ISO9001:2008 version management system.
