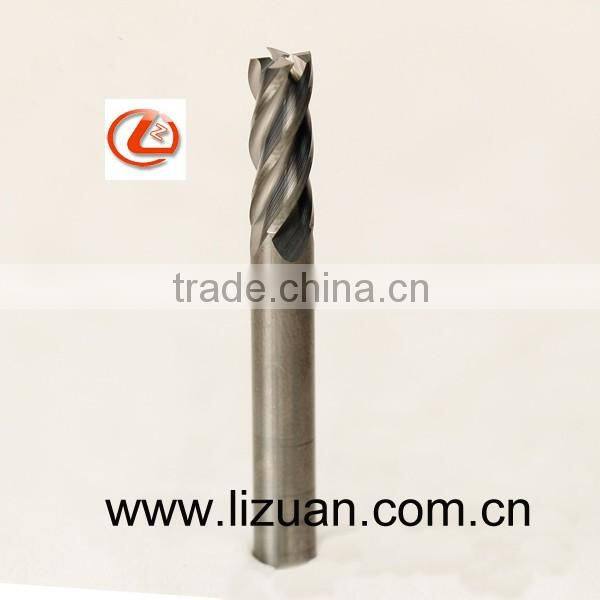

LZ0131 Solid carbide square end mills
We design and manufacturing Non-standard Cutting Tools.
Tip Customization
We designs the most suitable tip structure (covering the tip type, the cooling method, the geometric shape, the processing parameter, etc.) specially for each type of a customer’s tool based on the material of the processed and the customer’s real processing conditions whether it is drilling, milling, reaming, boring or any other machining, so as to meet different customers’ diversified demands for machining precision, smooth finish, processing efficiency and tool service life.

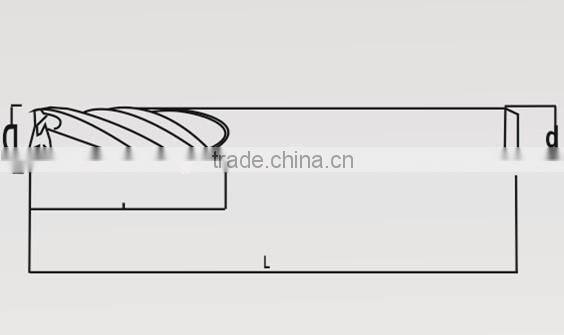

| Size / specification | ||||||||
| Item no. | ||||||||
| Description | 2-flutes | 3-flutes | 4-flutes | Flute diameter mm | Shank diameter mm | Flute length mm | Overall length mm | |
| Solid carbide square end mills | LZ0131Z2- 030 | LZ0131Z3-030 | LZ0131Z4-030 | 3 | 3 | 8 | 38 | |
| LZ0131Z2- 040 | LZ0131Z3-040 | LZ0131Z4-040 | 4 | 4 | 11 | 43 | ||
| LZ0131Z2- 050 | LZ0131Z3-050 | LZ0131Z4-050 | 5 | 5 | 13 | 47 | ||
| LZ0131Z2- 060 | LZ0131Z3-060 | LZ0131Z4-060 | 6 | 6 | 13 | 57 | ||
| LZ0131Z2- 080 | LZ0131Z3-080 | LZ0131Z4-080 | 8 | 8 | 19 | 63 | ||
| LZ0131Z2- 100 | LZ0131Z3-100 | LZ0131Z4-100 | 10 | 10 | 22 | 72 | ||
| LZ0131Z2-120 | LZ0131Z3-120 | LZ0131Z4-120 | 12 | 12 | 22 | 76 | ||
| LZ0131Z2- 140 | LZ0131Z3-140 | LZ0131Z4-140 | 14 | 14 | 26 | 83 | ||
| LZ0131Z2- 160 | LZ0131Z3- 160 | LZ0131Z4- 160 | 16 | 16 | 32 | 89 | ||
1 . Good Surface finish, increased feed rate
2 . Layers with high heat resistance , can be high-speed processing
3 . Grain size carbon tungsten has high toughness, ALTINcoating, high wear-resistance, special use for high speed cutting of CNC milling machine, also can increase the smoothness , reduce the rubbing coefficient and improve the lathe efficiency to save more production time
4 . Tool Rigidity and good chip discharge, the most suitable for high-precision three- dimensional mold machining
1. Are you a manufacturer? Do you own any factories?
We are Professional manufacturer, with more than 15 years experience in this field. Yes we work in our own factory.
2. What machine you use?
TTB & ANCA &Michael Deckel& Rollomatic, Zoller detection machine &PG1000 Checking machine.
3. Do you make OEM?
Yes, we do. We have laser machine, can laser your logo and sizes on the body of milling cutter, also can print labels.
4. Will you attend International Exhibition?
Yes, we had attended exhibitions in Germany(EMO), Indonesia, Malaysia .Russia. India, Thailand, Vietnam, Taiwan, etc.
5. Can you produce carbide Special Tool?
Yes We can. In fact we have our advantages in making non-standard cutting tools according to customers' drawing and sample.
6. Have any certificate of your factory?
Our factory management has been accredited with ISO9001:2008 version management system.
