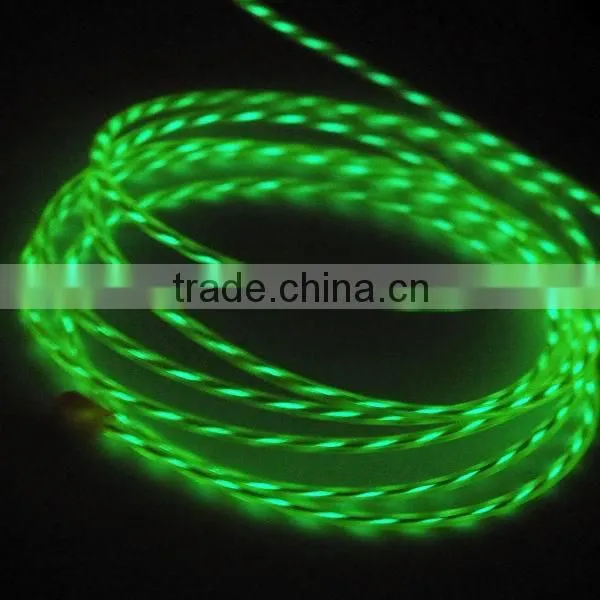

New Technology EL Light Chasing Wire
EL chasing wire Introduction EL chasing wire is our new extended product that made based on the EL wire, and it’s work principle is the same as the EL wire which is a physical change principle of a high-efficiency luminescence emitted through the bound, change, and compound of the electronic energy level that is caused by the fluorescent substance (ZnS) striking with the electron inspired at the AC electric field which is generated through the AC voltage from the attached two poles. EL chasing wire is a kind of spot flowing status which remedies the EL wire’s defect(constantly and flashing) in the aspect of light source singularity and accordingly reach due to the single light source limit. And it’s more saving and durable .Therefore, the Light-Chasing EL wire can be long-distantly applied more reasonable and more securely than that of the EL wire.
1.Technical parameters of our High brightness EL Chasing Wire:
(1) Working voltage: 80-110V; optimum operating voltage: 110V.
(2) Working frequency: 800Hz-1200Hz; optimal frequency: 800Hz.
(3) Static capacitance: 6.5nf/m(20°C RH<80%)
(4) Illumination intensity: 150cd/m2(110V 800KHz).
(5) Power consumption: 14mW/m ~ 90mW/m(110V 800-1200KHz).
(6) Lifetime:8000 hours(110V,800Hz)
(7) Continuous working temperature/relative humidity: -20°C ~ +70°C/RH<90%.
(8) Storage temperature/relative humidity:-10°C ~ +40°C/RH<65%.
2.Basic specification of EL chasing wire
(1) Main diameters:1.4mm,2.3mm,3.2mm,5.0mm.
(2) Main colors:Red, Lemon, Blue, Aqua,Orange,Red,Transparent White, Transparent Green, Transparent Blue
(3) Roll Max Length: 50M/Roll.
3.EL wire Applied Range
1.Indoor advertisement: can be made into various types of dynamic text
patterns ,applicated on store family showcase, door decoration, furniture edges, wall
design, roof design, Trees ,grass and so on,
2.Transport decoration: internal and external decoration of Travel and ship, the functional
profile identification of cage door instrument instruction, digital patterns show halted
security automatic shape sign, interior logo of bulletin automotive, bicycles, etc.
3.Security marking and instructions: street fence, stair handrail and ground instruction,
continuous channel logos, exit signs, outdoor temporary night warning lines, Police line
of sight of subway, stations, pier, construction sites and equipment etc.
4.Electronics and appliance product applications: industrial machinery and equipment
which provide electronic display mark, electric toys, arts and crafts,
Sports equipment, sports venues, security clothing, hats, bags, household appliances
4.Our advantages:
(1) Huangshi Changkai Electrical Co.,ltd has specialized in EL products above 10 years and has enjoyed a high reputation in the field.
(2) EL chasing wire have USA Invention Patent .USA Patent NO: US 7,671,279.
(3) Powerful production capacity:Our factory can manufacture 5000 meters EL chasing wire of different diamters everyday.
(4) Enthusiastic service and fast delivery.
