Specifications
1.10 years production experience2. USA patent and China patent production technology
3. competitive price
Company Introduction
Huangshi Changkai Electrical Co. ,Ltd was set up in 2000, is located at high-tech development zone of Huangshi, Hubei province. It is a professional el products manufacturer, which specializes in R&D, manufacturing and sales of all kinds of special el wire. We changkai owns advanced equipment and gathers a number of el products talents, which possess the rich experience of R&D and a strong capabilty of technology innovation which has developed el wire, el chasing wire and el visible charger ,ect. we own the invention patent of the products in China, America and Europe.
EL chasing wire Patent Introduction
EL chasing wire USA Invention Patent NO: US 7,671,279B2
EL chasing wire China Invention Patent NO: ZL 2005 1 0019714.8

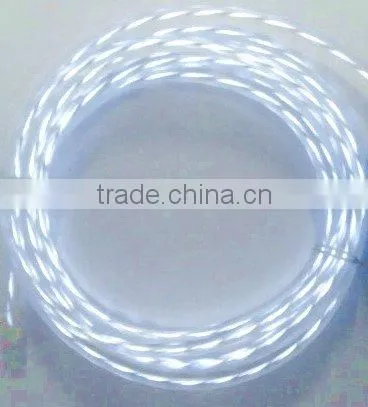

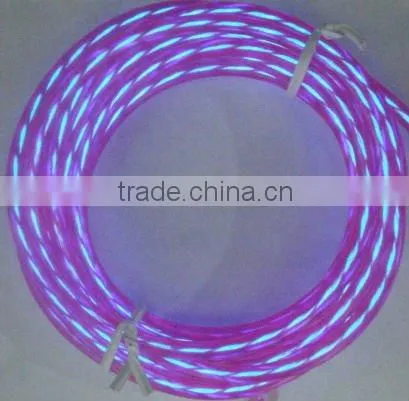

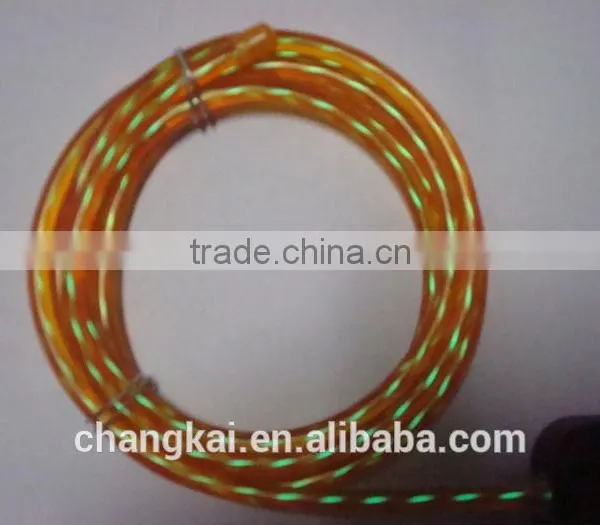

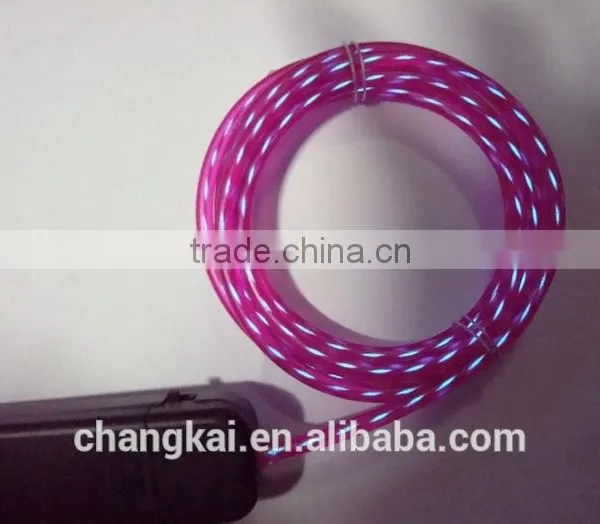

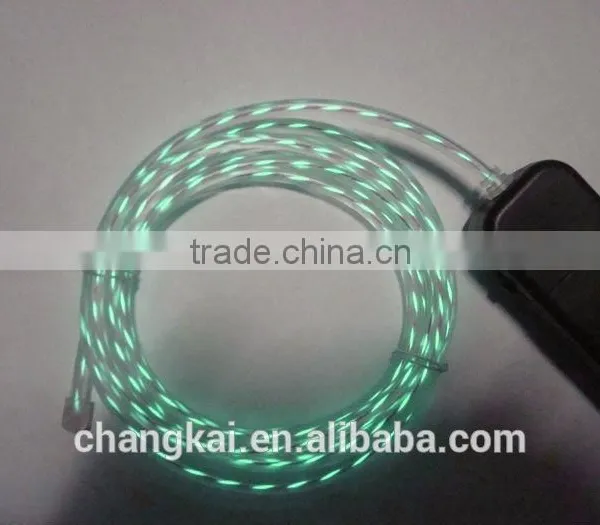

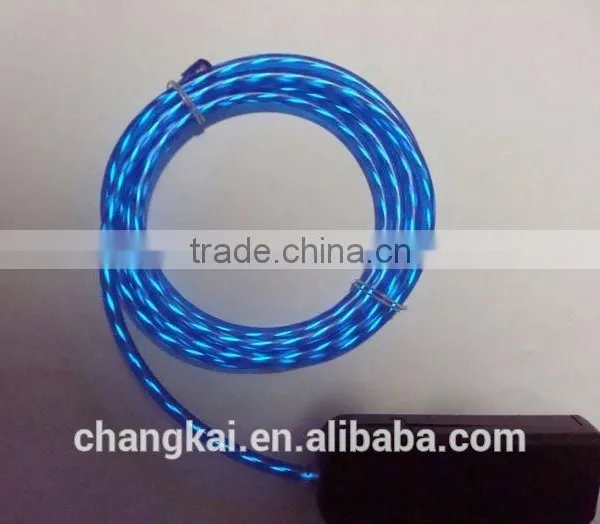

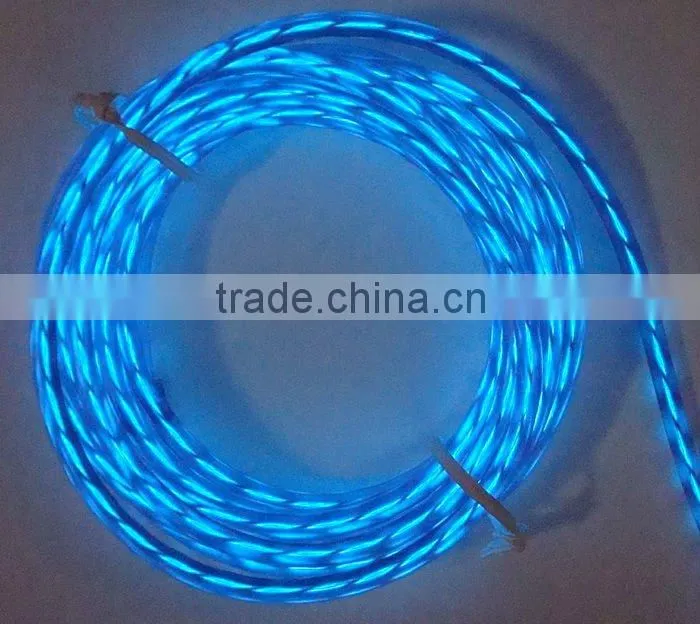

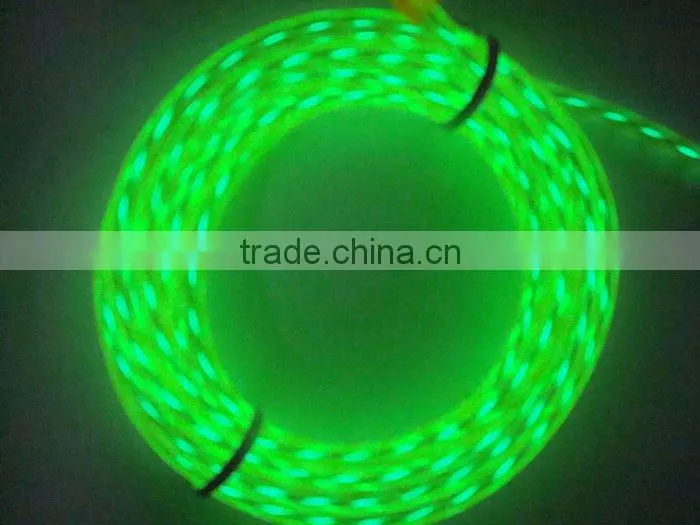

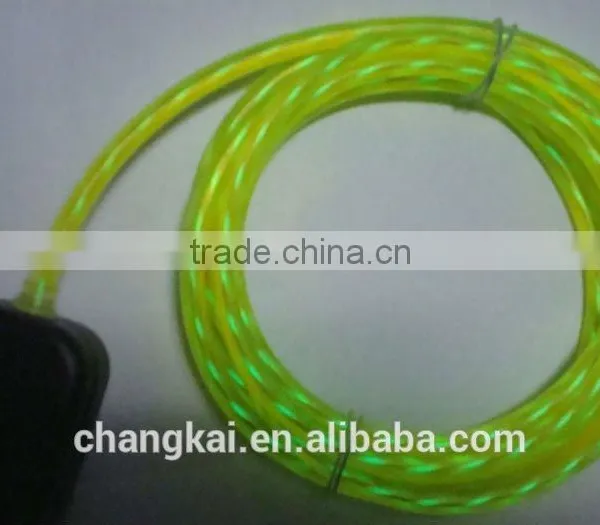

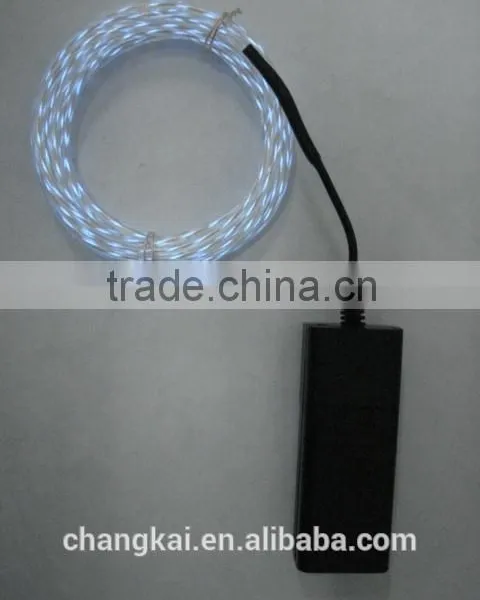

EL chasing wire Introduction
EL chasing wire is our new extended product that made based on the EL wire, and it’s work principle is the same as the EL wire which is a physical change principle of a high-efficiency luminescence emitted through the bound, change, and compound of the electronic energy level that is caused by the fluorescent substance (ZnS) striking with the electron inspired at the AC electric field which is generated through the AC voltage from the attached two poles.
EL chasing wire is a kind of spot flowing status which remedies the EL wire’s defect(constantly and flashing) in the aspect of light source singularity and accordingly reach due to the single light source limit. And it’s more saving and durable .Therefore, the Light-Chasing EL wire can be long-distantly applied more reasonable and more securely than that of the EL wire.
EL chasing wire Main performance
1 Working voltage:80-110V,optimum operating voltage: 110V.
2 Working frequency:800Hz-1200Hz,optimal frequency: 800Hz.
3 Static capacitance:6.5nf/m (20°C RH<80%).
4 Illumination intensity:150cd/m2 (110V 800Hz).
5 Power consumption:14mW/m ~ 90mW/m(110V 800Hz-1200Hz).
6 Life span(normal temperature and moisture): 8000 hours(110V 800Hz).
7 Continuous working temperature/relative humidity:-20°C ~ +70°C/RH<90%.
8 Storage temperature/relative humidity:-10°C ~ +40°C/RH<65%.
