High quality 1.6m,2.4m,3.2m S/SS pp nonwoven fabric making machine
- 4 Set / Sets per Month
- Shanghai
- T/T
Product Details
Condition: | New | Automatic Grade: | Automatic | Place of Origin: | Jiangsu, China |
Brand Name: | Sanyang | Model Number: | SY-1600,SY-2400,SY-3200 | Voltage: | 380V |
Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
-nonwoven fabric making machine-Absorb the advanced technology from abroad
-Reasonable design.
-1 year warranty
This machinery use polypropylene (PP) as it's raw material, take the principle of spinning man-made fibers, finished by mechanical hot pressing.the whole process from material feeding to cloth output is automatic control, short production flow, high working efficiency.
Description of pp nonwoven fabric making machine
The raw material of this machine is Polypropylene, spec as following:
Item | Unit | Technical index |
Melting Index | g/10min | 27~35 |
Melting point | °C | 162~165 |
Density | G/cm3 | 0.90~0.91 |
Molecular Weight distribution | Mw/Mn | <=4 |
Content of grey | PPm | <=250 |
No equal normality | % | <=3.5 |
Content of water | % | <0.05 |
Stretch strength | Mpa | >=31 |
General informatoin for various machines of different effective breadth:
Type | Output | total capacity(kw) | Operating capacity | Power consumption | Transformers required | Size of machine (W*L*H) | Container required |
1.6m S | 1500 ton/year | 360 | 130kw | 800kw*h/ton | 250KVA | 9m*17m*10.5m | 5 containers of 40HQ |
1.6m SS | 3000 ton/year | 720 | 260kw | 800kw*h/ton | 315KVA | 10m*25m*10.5m | 10 containers of 40HQ |
2.4m S | 2200 ton/year | 540 | 220kw | 800kw*h/ton | 250KVA | 12m*17m*10.5m | 6 containers of 40HQ |
2.4m SS | 4400 ton/year | 1080 | 440kw | 800kw*h/ton | 630KVA | 14m*25m*10.5m | 12 containers of 40HQ |
3.2m S | 3000 ton/year | 720 | 300kw | 800kw*h/ton | 315KVA | 13m*22m*10.5m | 7 containers of 40HQ |
3.2m SS | 6000 ton/year | 1440 | 600kw | 800kw*h/ton | 800KVA | 17m*30m*10.5m | 14 containers of 40HQ |
Spun-laid process and technical flow chart:
Additive(recycling waste edge)--->Raw material -->Melting--> Filtering--> Measuring-->Spinning-->Cooling-->Stretching-->Web forming--> Calendering -->Rounding-->Final products
Flow of PP non woven machine:
Single beam:
double beam:

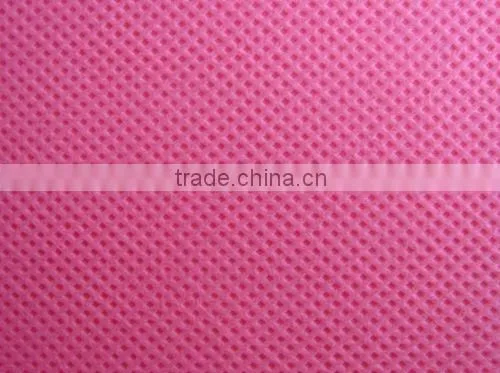

Final fabric:
Application fields:
Medical usage: operation suit, exposure suit, cap, sauna clothes face mask, shopping bag, disposable clothes and so on;
Agricultural usage: Cover for plant to anti-forst, packing bags for crops, etc;
Packing and lining: Bags for business,shopping and parents packet, dust cover, sleeping bag for children, leather shoes, sofa lining and so on.

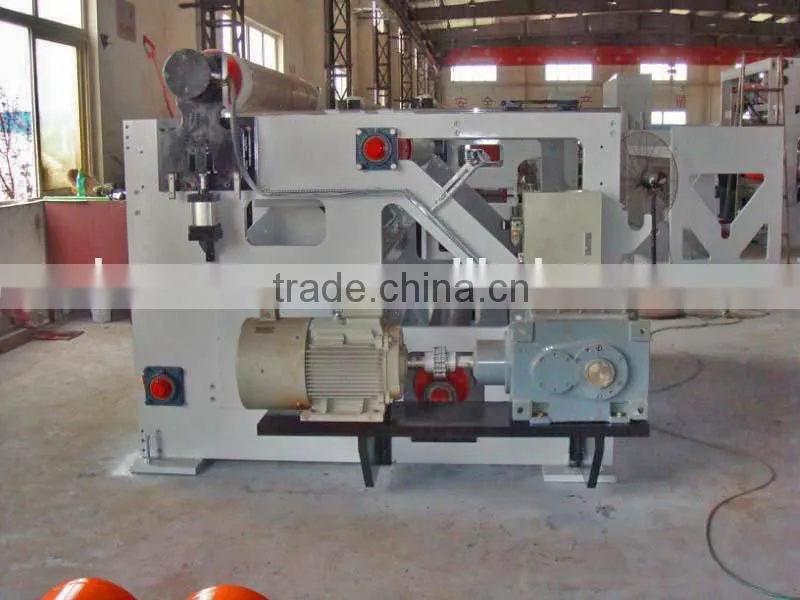

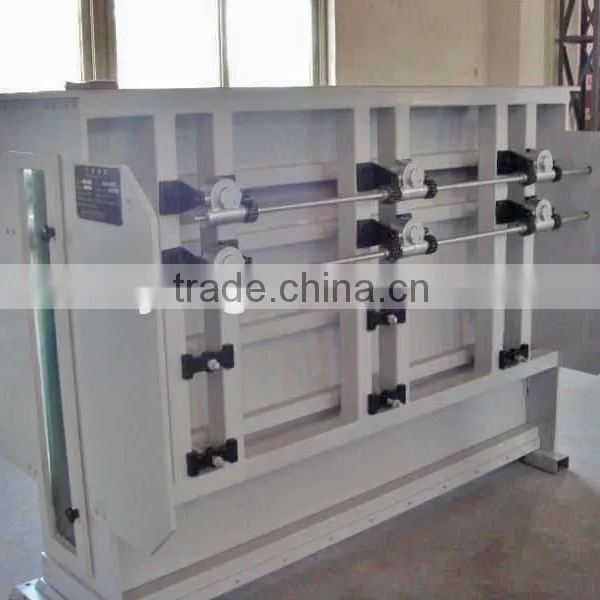

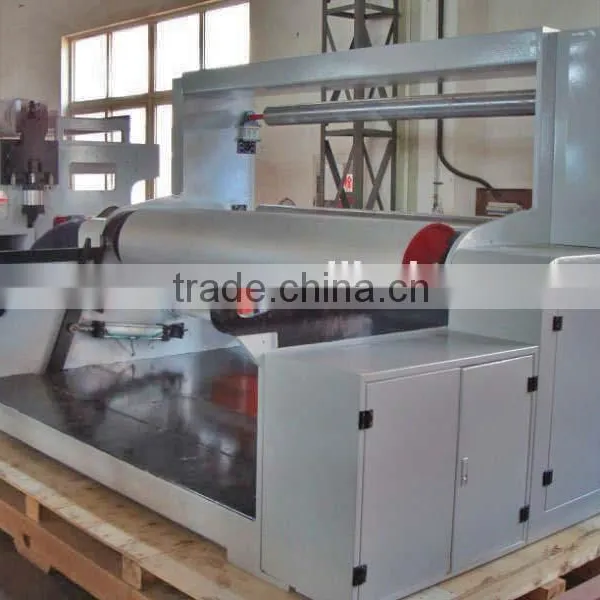

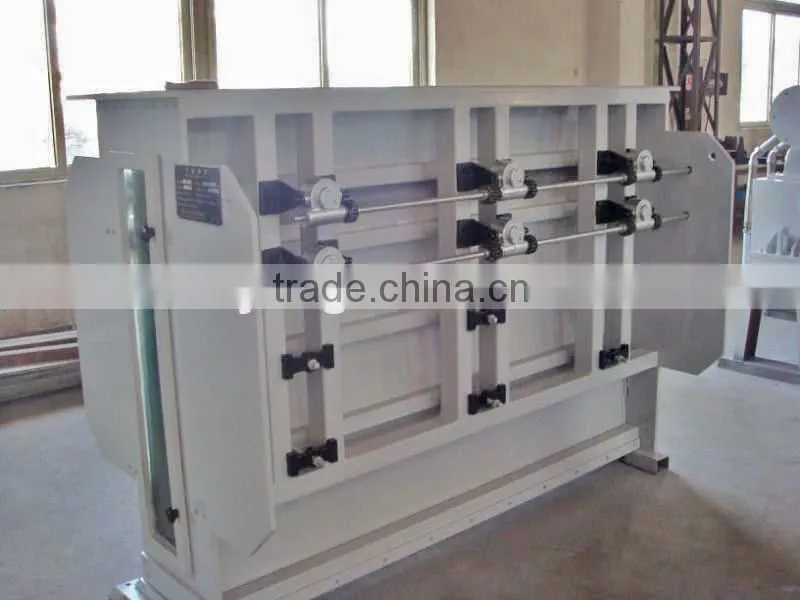

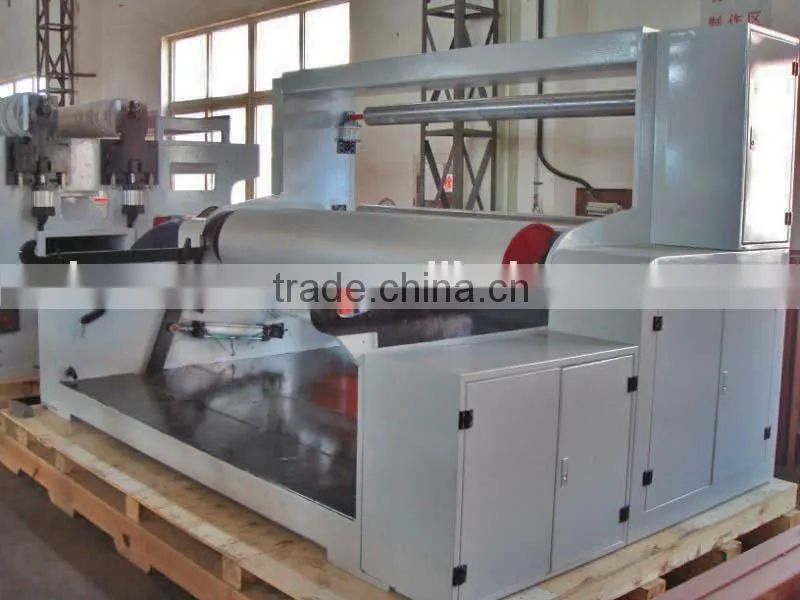

Parts of the machine:

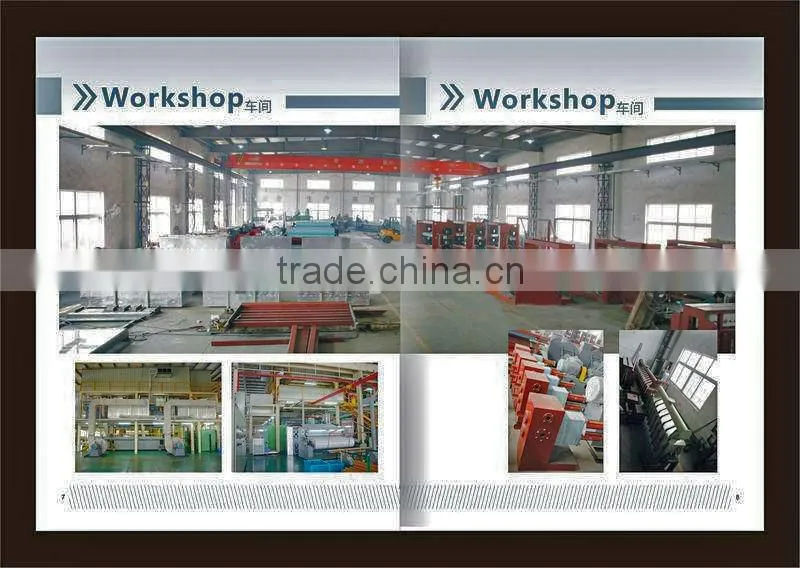

The view of our workshop:
Pakaging:
We can also change the effective fabric width to fit clients' special requests.
Contact Us
- Kunshan Sanyang Textile Machinery Co., Ltd.
- Contact nameAaron Han
- Phone086-0512-55179898
- AddressNo. 18, Xinxing Road, Dianshanhu Town
