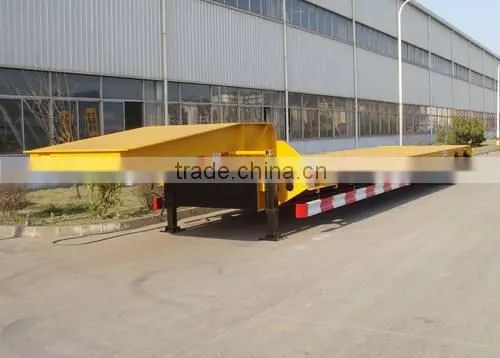

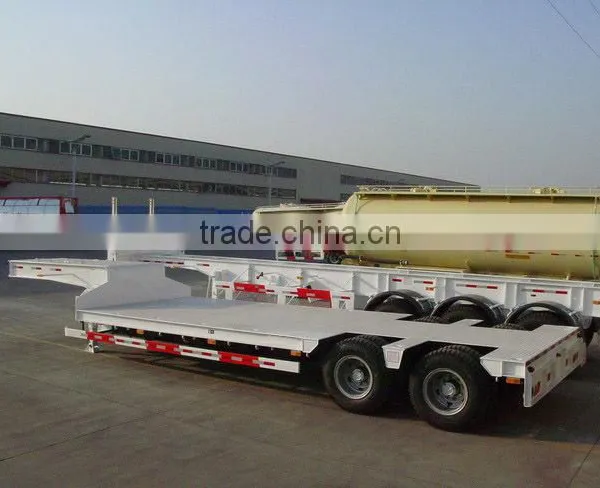

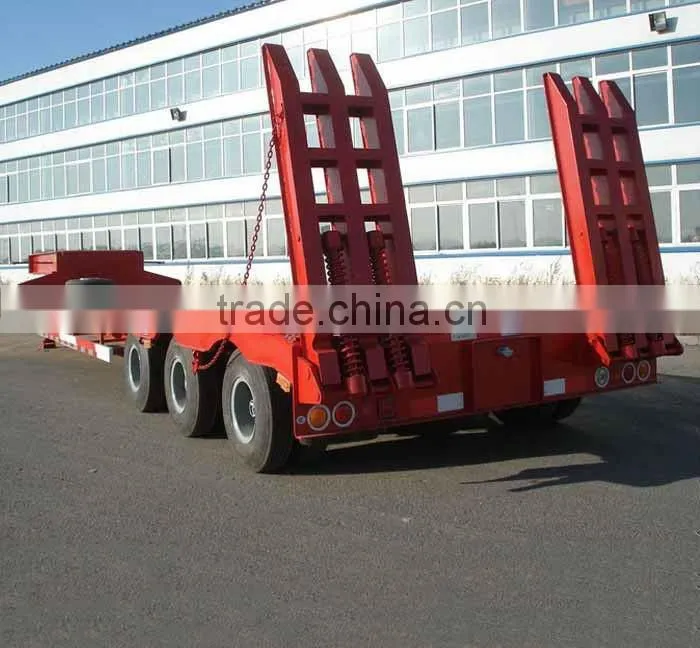

CSAC brand direct supplier lower price LOW BED semi trailer
The specification of LOW BED semi trailer
Tare Weight |
About 8.5-13T |
Dimension |
13000mm*3000mm-3500mm*1650mm |
Loading Capacity (T) |
40T-100T |
Axle |
13 T/16T, FUWA /BPW /Huajing Brand |
Rim |
6.5-20/7.5-20/8.00-20/8.5-20 |
Tire |
8.25R20/10.00R20/11.00R20/12.00R20 |
Suspension |
Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand ) |
Spring leaf |
90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 |
King pin |
JOST brand 2.0 or 3.5inch bolts type or Welding type |
Support leg |
JOST brand D200T or China brand 28Tons (Double speed) |
Main beam |
Height: 450mm-520mm, upper plate is 14mm-25mm, middle plate is 8mm-12mm, down plate is 16mm-25mm ; Material is Q345B Steel . |
Side beam |
16mm -25mm channel steel ( Material is Q235steel ). |
Ladder |
Manual or Hydraulic type |
Gooseneck |
For choose |
Brake chamber |
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; Two pieces of 45L air tanks |
ABS |
Optional |
Twist Locks |
Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type) |
Valve |
WABCO valve |
Light |
LED light |
Voltage |
24V |
Receptacle |
7 ways (7 wire harness) |
Tool box |
One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
Painting |
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
Shipping Terms: |
By bulk cargo carrier, RORO or 40HQ container. |

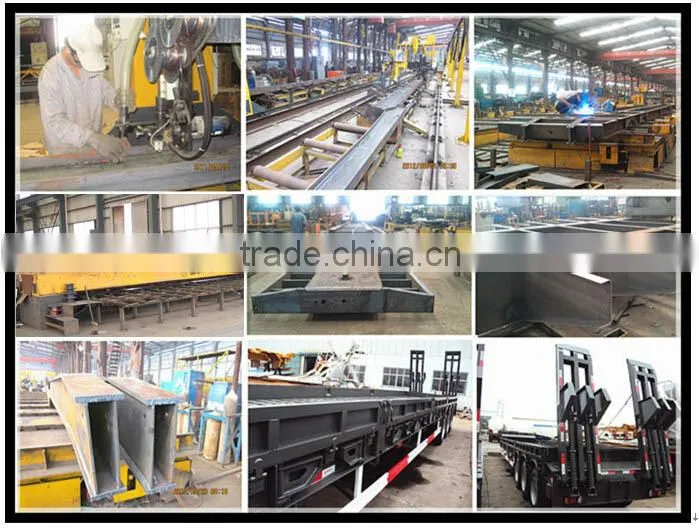

Our factory of LOW BED semi trailer

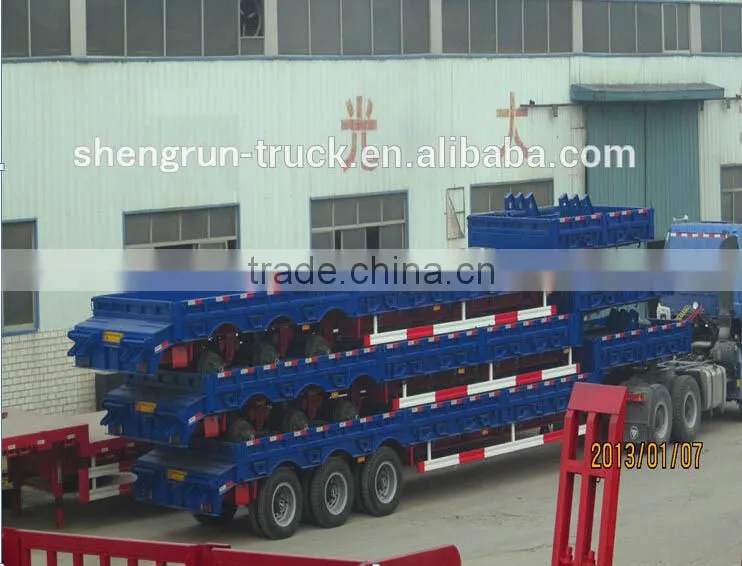

The usual shipping method of the LOW BED semi trailer is by bulk cargo.
our warranty of LOW BED truck trailer is one year, so if there is any problem with the quality tell us without hesitation,
our technician will serve for you.
We are sincerely hope to cooperate with you and establish a long term relationship with you.
So we are aways focus on quality, not price.
If you are interested in our product, please contact me.
