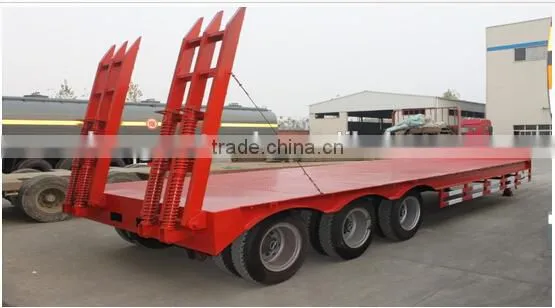

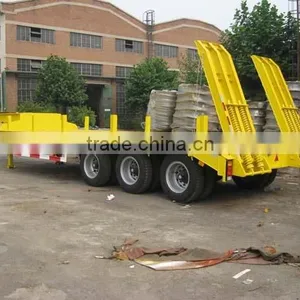

hot selling good quality cheap price low bed semi trailer
Specifications
low bed truck trailer
1.with two ladders
2.60ton capacity
3.china manufacturer
Specifications | |
Manufacturer |
Shandong Shengrun Automoblie Co., Ltd |
Model Nunber |
SKW9350TDP/SKW9402TDP |
Tare Weight |
About 8.5T-13T |
Dimension |
13000mm*2500mm-3500mm*1650mm (Size can be choose freely) |
Loading Capacity |
40T-100T |
Axle |
13T/16T, FUWA/BPW/Huajing Brand |
Rim |
8.5-20 13PCS or other sizes |
Tire |
12R20 13 PCS or other sizes ,Triangle/Double Coin |
Suspension |
Mechanical suspension (Germany Type or America Type) or Air suspension(China brand or BPW brand) |
Spring leaf |
90(W)mm*13(Thickness)mm*10 Layer (especial for exporting market ) |
King pin |
JOST brand 2.0 or 3.5 inch bolts type or Welding type |
Support leg |
JOST brand D200T or China brand 28Tons (Double speed) |
Main beam |
Height: 450mm-520mm, upper plate is 14mm-25mm, middle plate is 8mm-12mm, down plate is 16mm-25mm ; Material is Q345B Steel . |
Side beam |
16mm-25mm channel steel ( Material is Q235steel ). |
Bottom Platform |
5mm thickness diamond steel plate or can be optional |
Ladder |
Manual type or Hydraulic type |
Gooseneck |
For choose |
Brake chamber |
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; Two pieces of 45L air tanks |
ABS |
Optional |
Valve |
WABCO valve |
Light |
LED light (Special for export market) |
Voltage |
24V |
Receptacle |
7 ways (7 wire harness) |
Tool box |
One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
Painting |
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
Shipping Terms: |
By bulk cargo carrier, RORO or 40HQ container. |
Advantage of choose us
. Focused on special automobiles' design and production for nearly 10 years.
. Obtained the ISO9001 international quality management system certification.
. Achieved foreign trade qualification granted by Chinese government.
. Manufacturer direct sale,quality guaranteed, low price.
. Europe Emission Standard 2/3.
. Except standard products, also customize products according to your requirements.
You are always welcomed to visit our company and factory for business
cooperation !!!
