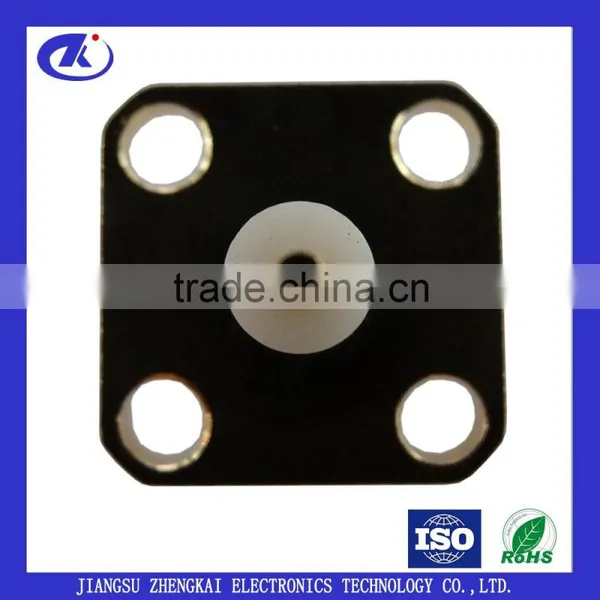

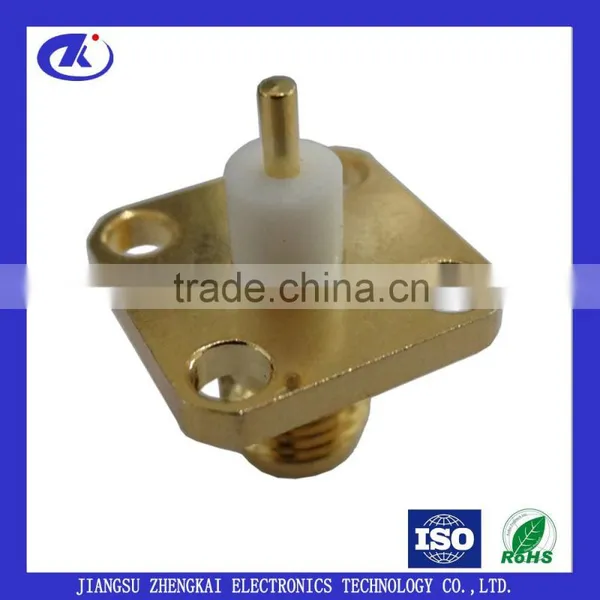

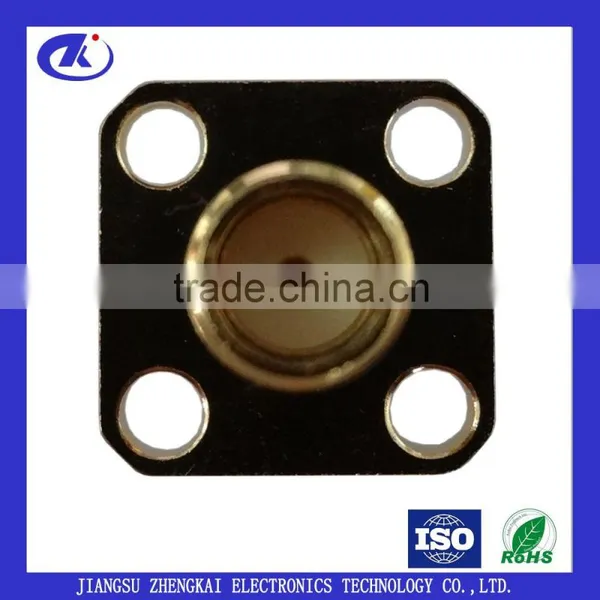

RF SMA Female Solder Flange 4 Hole Connector

Name: RF SMA Female Solder Flange 4 Hole Connector
Brand: ZK SMA hole jack connector
SKU: 124900159

US$ 0.63 - 0.72 MOQ: 1 Piece

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

ZK SMA hole jack connector

Model Number:

SMA-50KFD-90 hole jack connector

Jiangsu Zhengkai Electronics Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Ningbo Shenzhen Guangzhou Qingdao Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name ZK SMA hole jack connector

Model Number SMA-50KFD-90 hole jack connector

Type SMA

Application Microwave

Gender Female

Electrical Requirements
Impedance		50Ω
Frequency		DC-18 GHz
Withstand Voltage (at Sea Level)		Flexible Cable				Rigid Cable
		Insulation Diameter1.5	Insulation Diameter3			Insulation Diameter1.5	Insulation Diameter3
		500V	750V			750V	1000V
Insulation Resistance		≥ 5000MΩ
Sheltered Effectiveness		straight100 dB,1GHz
Contact Resistance		Center Conductor			≤3mΩ
		Outer Conductor			≤2.5mΩ
Mechanical Requirements
Connection Torque	Normal Torque					0.8-1.1 N.m
	Endurance Distance					1.7N.m
Center Conductor Retention	0.28N(standard)
Vibration	10m/S²,10-2000Hz,1g_n Acceleration
Impact	500m/ S²,1/2 sine wave,11ms,50g_n Acceleration
Durability	500cycles
Environmental Requirements
Temp.Range	-55°C - +155°C
Salt Spray	48h Spray
Material
Body	Brass
Center Conductor	Plug			Brass
	Jack			Beryllium Copper
Outer Conductor	Brass
Crimp Tube	Brass/ Red Copper
Other Metal	Brass
Insulator	PTFE
Sealing Ring	Silicone Rubber
Surface Treatment
Body	Gold/Nickle/ Ternary Alloys
Center Conductor	Gold
Outer Conductor	Gold/Nickle/ Ternary Alloys
Other Metal	Gold/Nickle
Crimp Tube	Nickle/ Ternary Alloys
