Home > Products > RF CONNECTORS > N PLUG CONNECTOR FOR 1/2"SUPERFLEX CABLE(SOLDER TYPE)

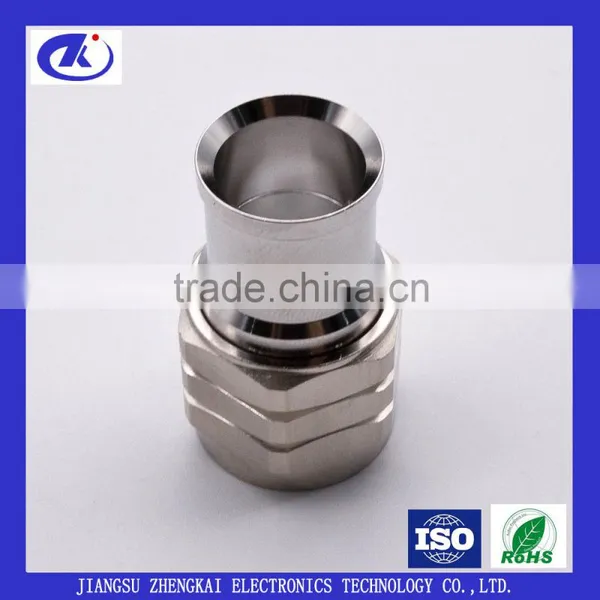

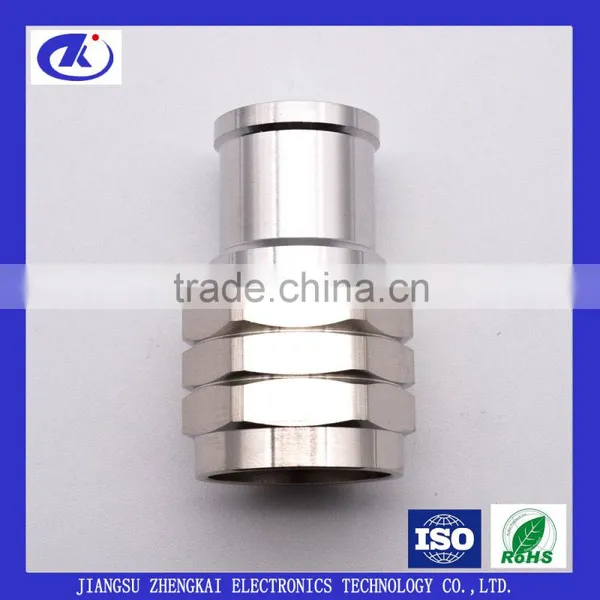

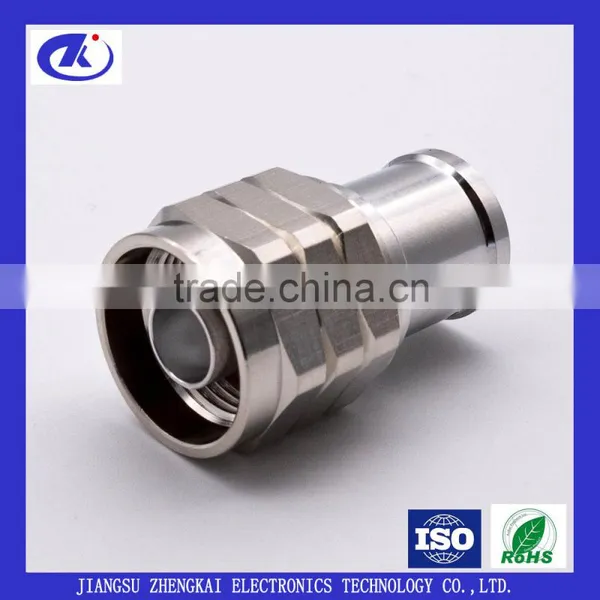

N PLUG CONNECTOR FOR 1/2"SUPERFLEX CABLE(SOLDER TYPE)
USD $0.72 - $0.85
/ Piece
1 Piece(Min.Order)
- 3000 Piece / Pieces per Month
- SHANGHAI SHENZHEN GUANGDONG NINGBO QINGDAO
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | ZK N solder connector | Model Number: | N-H-J1/2SA-1 N solder connector |
Type: | Other, N | Application: | RF | Gender: | Male |
Product Description
Product Description
Interface
According to | IEC60169-16 |
Electrical
1 | Characteristic Impedance | 50ohm |
2 | Frequency Range | DC-6GHz |
3 | VSWR | 1.15 |
4 | Dielectric withstanding voltage | ≤2500RMS,50Hz,at sea level |
5 | Dielectric Resistance | ≥5000MΩ |
6 | Contact Resistance | Outer Contact≤0.25mΩ ;Center Contact≤1mΩ |
7 | PIM3 | ≤-160dBc(2*20W) |
Mechanical
1 | Durability | Mating cycles ≥500 |
Material and plating

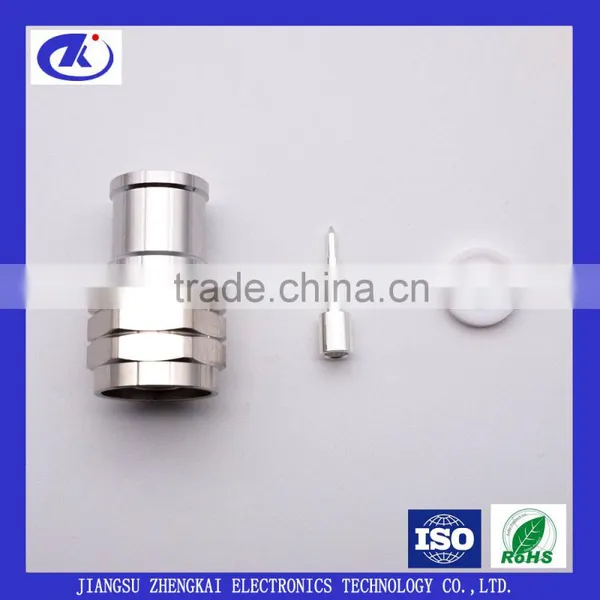

| Description | Material | Plating |
1 | Body | Brass | 3uNi |
2 | Insulator | PTFE | – |
3 | Center conductor | Brass | 3uAg |
Environmental
1 | Temperature Range | -40℃~+85℃ |
1.CNC machines ,advanced test equipment
2.All products are suit for ROHS.
3.ISO14001 certificate,ISO9001 certificate
Metal Workshop
Assembly Workshop
Assembly workshop and professional team;
Test Area
Quality: We use the best quality components to ensure the standard of our
product range is of the highest caliber
All products we sold out are strictly selected and tested by our QC department
Packing Area
Certifications
Contact Us
- Jiangsu Zhengkai Electronics Technology Co., Ltd.
- Contact nameCoco Xu
- Phone86-511-83357772
- AddressScience and Technology Industrial Park Zone,Jingkou Zhenjiang,Jiangsu
