Home > Electrical & Electronics > Connector & Terminals > Wire to Wire Connector > 7/16(L29)Type Series RF Coaxial Connectors

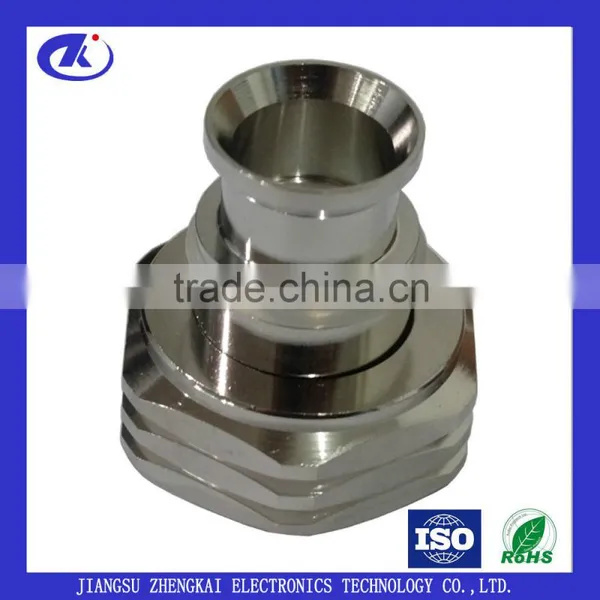

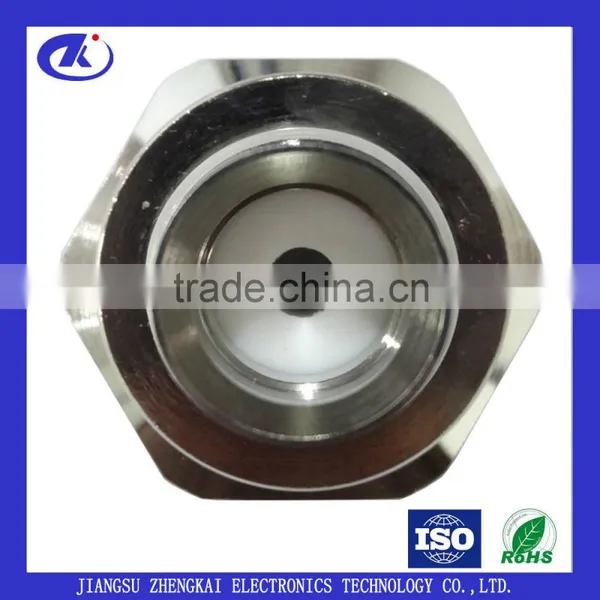

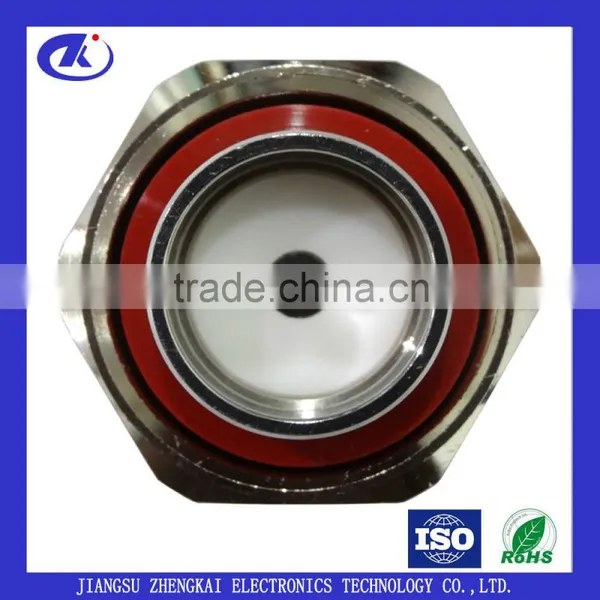

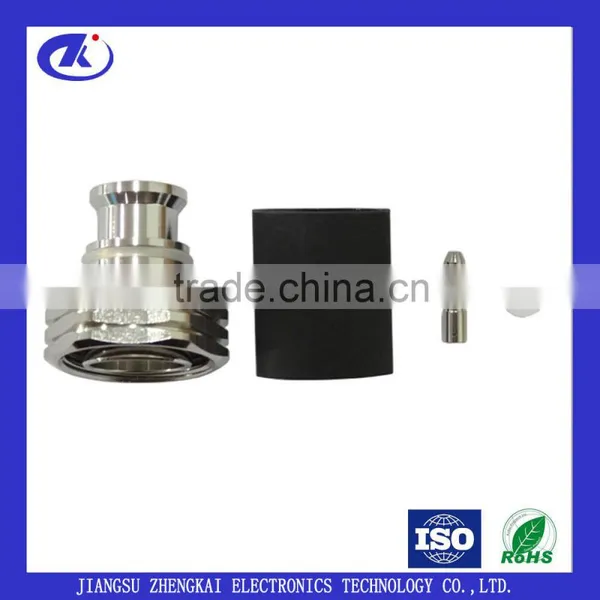

7/16(L29)Type Series RF Coaxial Connectors
US$ 1.24 - 1.36
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
ZK RF solder connector
Model Number:
7/16-H-J1/2 RF solder connector
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI SHENZHEN GUANGDONG NINGBO QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
RF DIN Female Soldering Connector for 1/2'' Superflexible CableUS$ 1.15 - 1.26MOQ: 1 Piece -
RF Coaxial Connector TNC Male for RG223 CableUS$ 0.9 - 0.99MOQ: 1 Piece
-
RF L9 Double Male U Link RF ConnectorUS$ 1.2 - 1.32MOQ: 1 Piece
-
1.6/5.6 Connector for RG179 CableUS$ 0.6 - 0.66MOQ: 1 Piece
-
RF Coaxial MCX Crimp Male Right Angle ConnectorUS$ 1.2 - 1.32MOQ: 1 Piece
Place of Origin
Jiangsu, China
Brand Name
ZK RF solder connector
Model Number
7/16-H-J1/2 RF solder connector
Type
DIN
Application
RF
Gender
Male
Product Description
Interface
| According to | IEC60169-4 |
Electrical
| 1 | Characteristic Impedance | 50ohm |
| 2 | Frequency Range | DC-6GHz |
| 3 | VSWR | 1.15 |
| 4 | Dielectric withstanding voltage | ≤4000V RMS,50Hz,at sea level |
| 5 | Dielectric Resistance | ≥10000MΩ |
| 6 | Contact Resistance | Outer Contact≤1.5mΩ ;Center Contact≤0.4mΩ |
| 7 | PIM3 | ≤-155dBc@2*20W |
Mechanical
| 1 | Durability | Mating cycles ≥500 |
Material and plating
|
Description |
Material | Plating |
| 1 | Body | Brass | CuSnZn |
| 2 | Insulator | PTFE | – |
| 3 | Center conductor | Phosphor Bronze/Beryllium Bronze | Ag |
| 4 | Other | Brass | Ni |
Environmental
| 1 | Temperature Range | -40℃~+85℃ |
1.CNC machines ,advanced test equipment
2.All products are suit for ROHS.
3.ISO14001 certificate,ISO9001 certificate

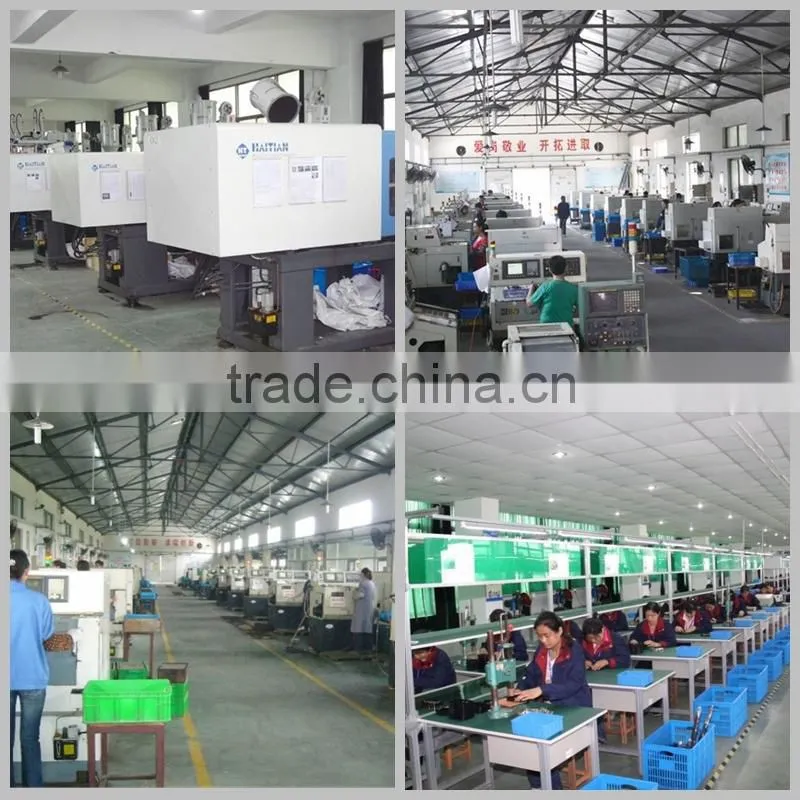

Metal Workshop

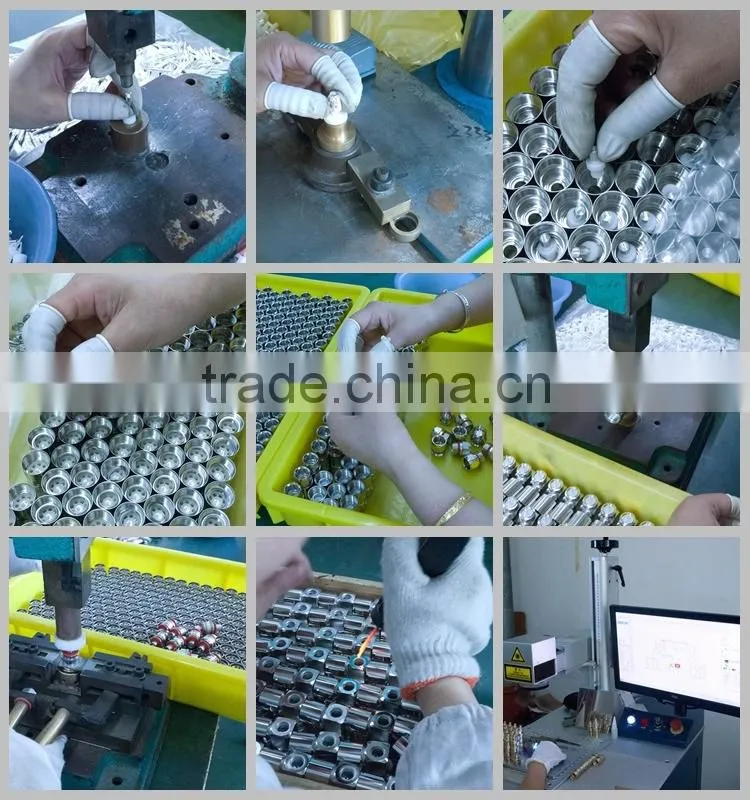

Assembly Workshop
Assembly workshop and professional team;

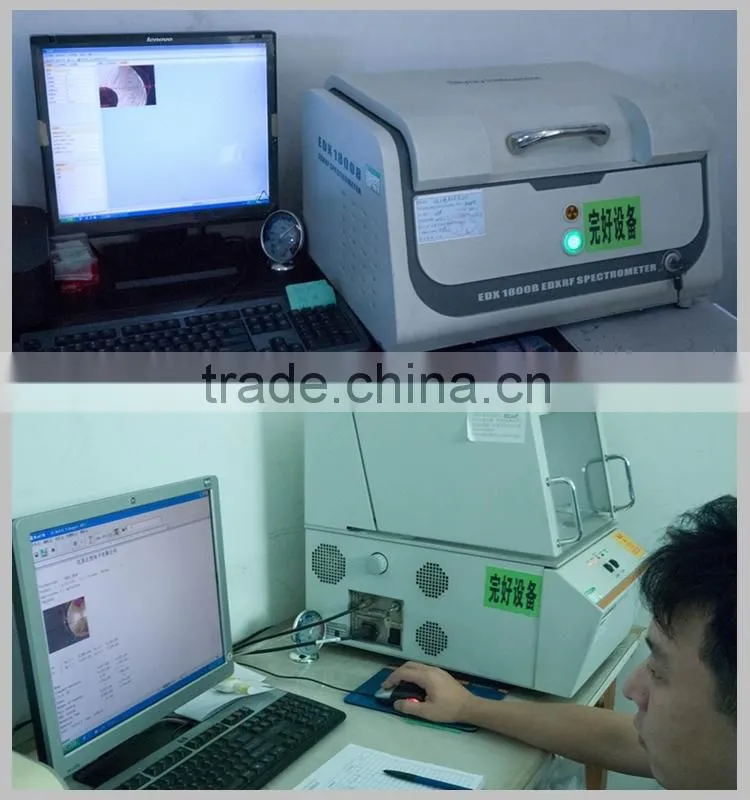

Test Area
Quality: We use the best quality components to ensure the standard of our
product range is of the highest caliber
All products we sold out are strictly selected and tested by our QC department
Packing Area
Certifications
Send Inquiry to This Supplier
Mrs. Coco Xu
Sales Manager
Jiangsu Zhengkai Electronics Technology Co., Ltd.
Zhenjiang, Jiangsu, China
* Email
Want the best price?
Post an RFQ now!
Business Type
Manufacturer, Trading Company
Year Established
1999
Factory Size
10,000-30,000 square meters
Total Employees
301 - 500 People
