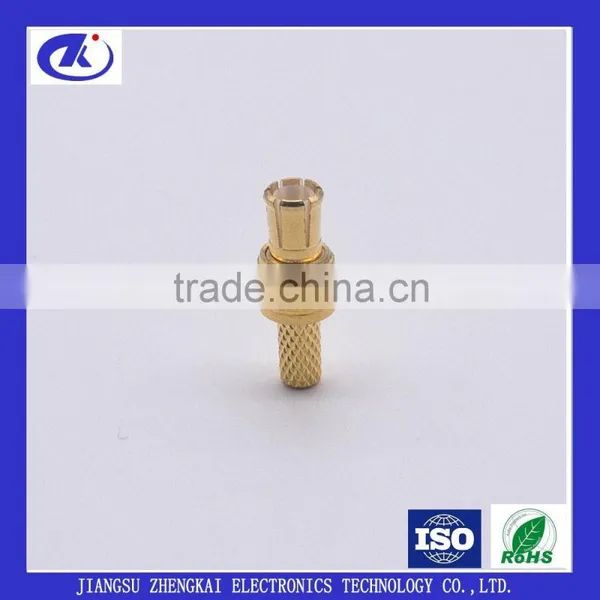

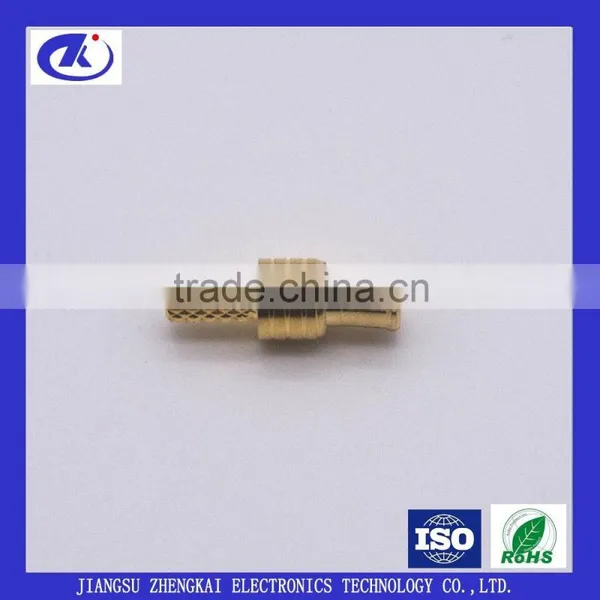

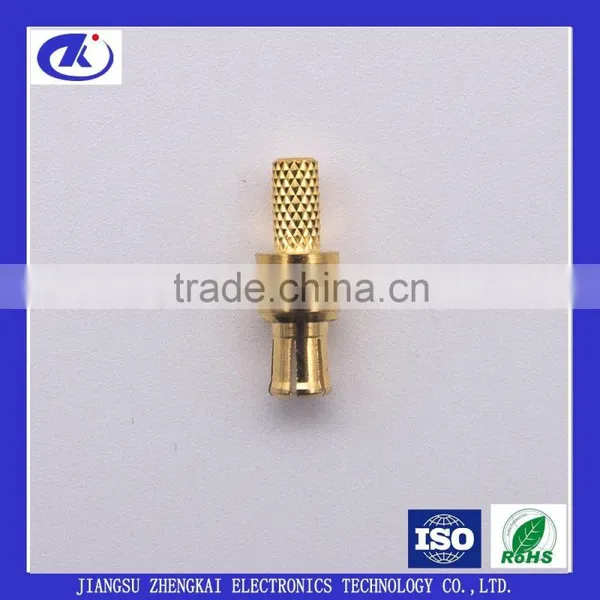

Help CenterRF MCX Straight Plug for RG316 Connector
Related Products
-
RF Coaxial MCX ConnectorUS$ 1.05 - 1.15MOQ: 1 Piece -
MCX Male Crimp Connector For RG316 CableUS$ 0.6 - 0.66MOQ: 1 Piece
-
RF Coaxial N Female Solder Connector FOR RG402 CableUS$ 0.9 - 0.99MOQ: 1 Piece
-
RF N Female Crimp Connector(LMR200)US$ 0.8 - 0.88MOQ: 1 Piece
-
N Male Connector FOR 7D-FB CableUS$ 0.95 - 1.04MOQ: 1 Piece
Features:
1) Coaxial standard connectors
2) Bayonet coupling
3) Application for 3GHz
4) Military, industrial and commercial grade choice
5) Easy connecting and disconnecting
Applications:
1) Computers/LANs
2) Test and measurement
3) Medical equipment
4) Broadcast
5) Instrumentation
6) Telecommunication equipment
7) Video communications
8) General electronics
Contents:
1) Printed circuit board and bulkhead/panel mount receptacle
2) In-series and between-series adapter
3) Cable connectors, crimp, clamp and jacket quick twist configurations for every
kind of flexible coaxial and semi-rigid cable
Electrical:
1) Impedance: 50 ohms
2) Frequency range: 0 to 3.0GHz
VSWR:
1) Straight: 1.13 maximum
2) Right angle: 1.15 maximum
3) Working voltage: 500V rms maximum at sea level
4) Dielectric withstanding voltage: 1,500V rms maximum at sea level
Contact resistance:
1) Center contact: 1.5m ohms maximum
2) Outer contact: 1.0m ohms maximum
3) Insertion loss: 0.2dB maximum at 3GHz
4) Insulation resistance: 5,000M ohms minimum
5) Mechanical and environments:
6) Mating: two stud bayonet coupling
Cable retention:
1) RG-58, 141, 142, 223; 40 lbs minimum
2) RG-59, 62A, 210; 40 lbs minimum
3) RG-174, 188, 316; 20 lbs minimum
4) RG-179B, 187A; 20 lbs minimum
5) Coupling nut retention: 100 lbs minimum
6) Temperature range: -65 to 165 degrees Celsius
7) Vibration: MIL-STD-202 method 204 test condition B
8) Salt spray: MIL-STD-202 method 101 test condition B
9) Thermal shock: MIL-STD-202 method 107 test condition B
Material:
1) Connector body:
2) Material: brass
3) Plating: Au
Assembly workshop and professional team;
Quality: We use the best quality components to ensure the standard of our
