MCX Male Crimp Connector For RG316 Cable

MCX Male Crimp Connector For RG316 Cable thumbnail-1
MCX Male Crimp Connector For RG316 Cable thumbnail-2
MCX Male Crimp Connector For RG316 Cable thumbnail-3
MCX Male Crimp Connector For RG316 Cable photo-1

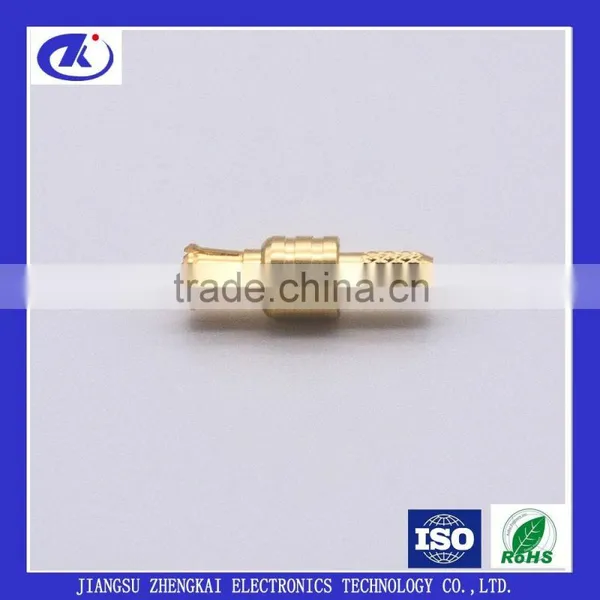

MCX Male Crimp Connector For RG316 Cable photo-2

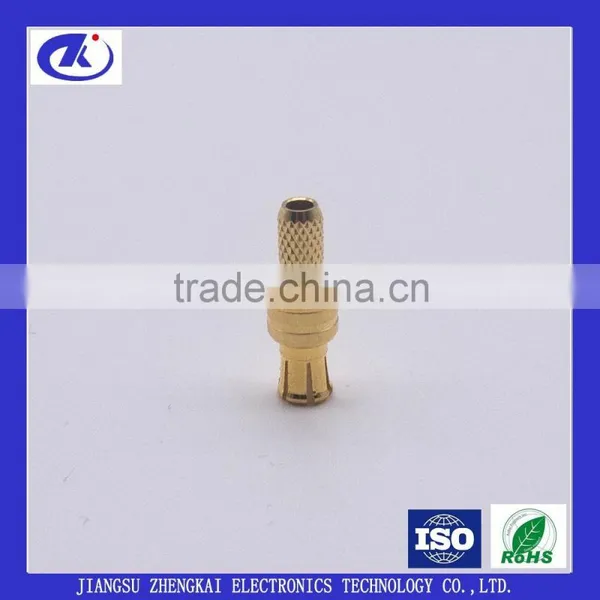

MCX Male Crimp Connector For RG316 Cable photo-3
US$ 0.6 - 0.66 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
ZK MCX male connector
Model Number:
MCX-C-J3A-3 MCX male connector
Contact Supplier Request Quote Chat Now
Jiangsu Zhengkai Electronics Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI SHENZHEN GUANGDONG NINGBO QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name ZK MCX male connector
Model Number MCX-C-J3A-3 MCX male connector
Type MCX
Application RF
Gender Male



Product Description



Electrical Requirements

Impedance

50Ω

Frequency

DC-6 GHz

Withstand Voltage(at Sea Level)

750V,50Hz

Working Voltage(at Sea Level)

170V,50Hz

Insulation Resistance

≥ 1000MΩ

Sheltered Effectiveness

straight 70 dB,1GHz

Contact Resistance

Center Conductor

≤5mΩ

Outer Conductor

≤2.5mΩ

Mechanical Requirements

Center Conductor Retention

0.27N(standard retention)

Outer Conductor Retention

78.5N

Vibration

98m/S2,10-500Hz,10gnAcceleration

Durability

500cycles

Environmental Requirements

Temp.Range

-55°C - +155°C

Salt Spray

48h spray

Material

Body

Brass

Center Conductor

Plug

Brass

Jack

Beryllium Copper

Outer Conductor

Brass/Beryllium Copper

Crimp Tube

Brass/Red Copper

Other Metal

Brass

Insulator

PTFE

Sealing Ring

Silicone Rubber

Surface Treatment

Body

Gold

Center Conductor

Gold

Outer Conductor

Gold

Other Metal

Gold/Nickle

Crimp Tube

Nickle



workshop

MCX Male Crimp Connector For RG316 Cable

Metal worshop,assembly workshop and professional team

Assembly Workshop

MCX Male Crimp Connector For RG316 Cable

 Assembly workshop and professional team;

Test Area

MCX Male Crimp Connector For RG316 Cable

Quality: We use the best quality components to  ensure the standard of our

              product range is of the highest caliber
              All products we sold out are strictly selected and tested by our QC department
Packing Area

MCX Male Crimp Connector For RG316 Cable

Certifications

MCX Male Crimp Connector For RG316 Cable
