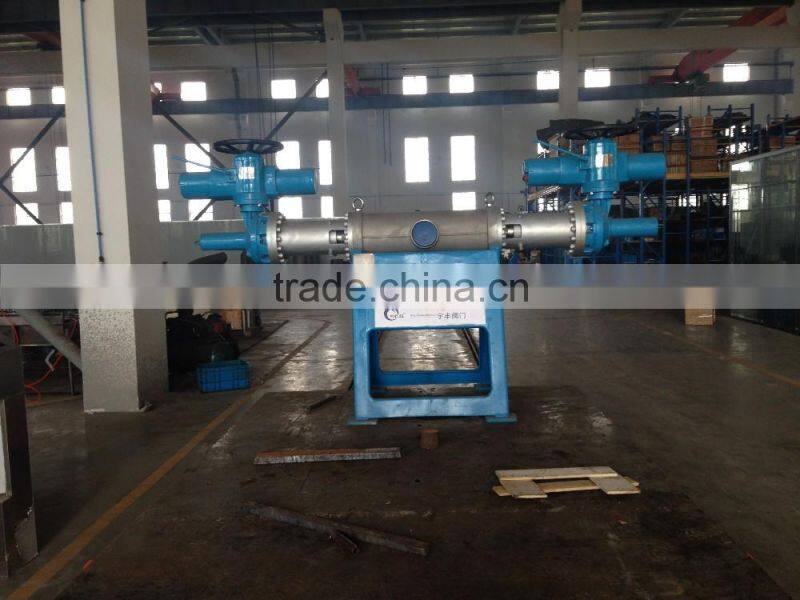

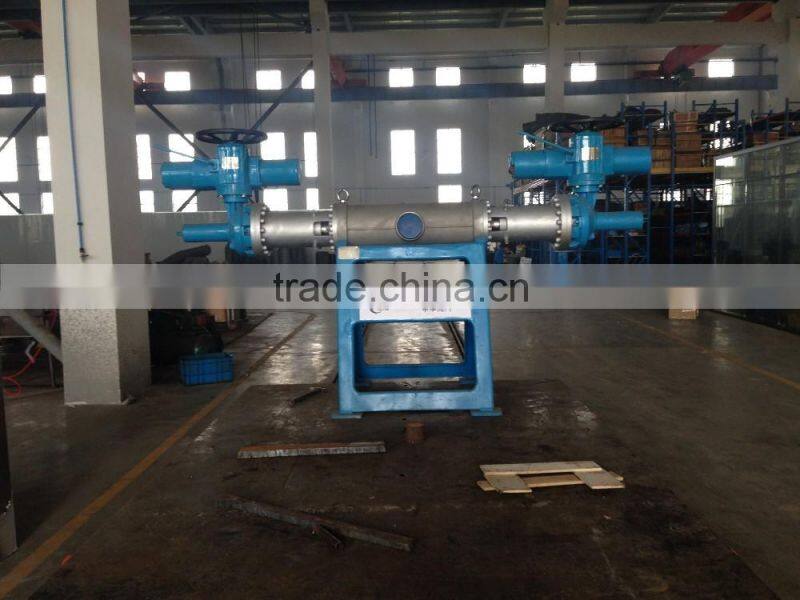

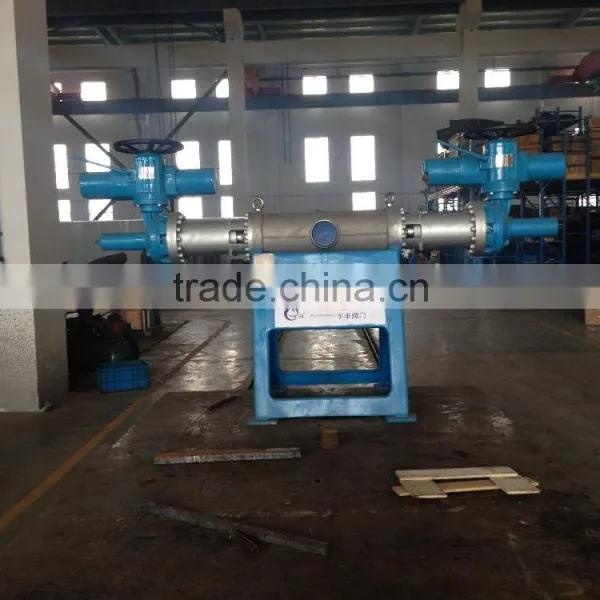

Jacket 3-Way Valve
Advantages:
(1). The Jacket 3-Way Melt Valve can be used to extract the high-temperature/pressure (or vacuum) melt flow or polymer from pipeline and cut it directly.
(2). When the valve is shut off, the feeding mouth of plunger matches up with the internal wall of pipeline and provides no disturbance to the meld flow inside the pipeline.
(3). Exquisite workmanship
(4). widely applicable
Remarks: Special size, material, directing of the medium according to customers requirement
Operation: Manual, Electric
Inspection and Test: API STD 598
Design STD: ANSI B 16.34
Catheter Material: 304, 316
Core Material: 304, 316, 304L, 316L
Catheter Suitable Medium: HTM
Inside Tube Suitable Medium: Lipid, Polymer, Fusion
Jacket Design Temp.: ≤330
Core Design Temp.: ≤360
Valve Size: DN 25~DN 400 (1~16)
Jacket Pressure Class: 0.6~2.5 Mpa 150LB
Core Pressure Class: 0.6~42 Mpa 125LB~2500LB
Design of the Flow channel : straight line designs
Connection type of fuse pipe: Flange coupling/ Butt welding
Connection type of heat medium: Flanges/ Butt welding
Hard seal of valve stem : valve stem and valve body welded with carbide alloy to ensure the abrasion resistance of the sealed surface
7 steps to ensure the quality
1.Professional fluid analysis provides proof for the selection of diferrent types for customers.
2.Precise finite element analysis provides guarantee for prodcut quality.
3.Thermal state pressure test proved to be stable and safe for clents to use under work conditions.
4.Vacuum test guarantees the reliability of valves that requires special processing.
5.Advanced testing equipment makes sure that various parameters of valves meet the design needs.
6.Advanced ultra-sound defect detector makes sure that each welding line can achieve comppelte defect detection .
7.Advanced Physicochemical analysis machine makes sure that the quality of every part meets the design needs.
High-Tech and Science results certificates
Iso 9001 international quality certificate
Patents (we have 20 patents which are authorized by STATE INTELLECTUAL PROPERTY OFFICE OF THE P.R.C)
Now we start a representative office in Xiaoshan.Hangzhou.we warmly welcome your visit in Hangzhou and Wenzhou!
