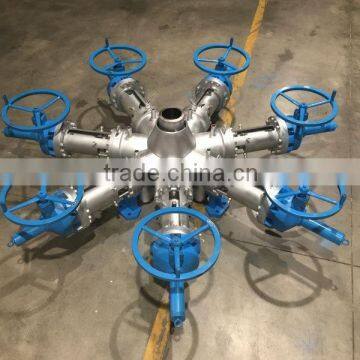

8-Way Switch Valve
Advantages:
(1). 8-Way Switch Valve can be used to extract the high-temperature/pressure (or vacuum) melt flow or polymer from pipeline and cut it directly.
(2). When the valve is shut off, the feeding mouth of plunger matches up with the internal wall of pipeline and provides no disturbance to the meld flow inside the pipeline.
(3). Exquisite workmanship
(4). Widely applicable
Remarks: Special size, material, directing of the medium according to customers requirement
Operation: Manual, Electric
Inspection and Test: API STD 598
Design STD: ANSI B 16.34
Catheter Material: 304, 316
Core Material: 304, 316, 304L, 316L
Suitable Medium: HTM
Suitable Medium: Lipid, Polymer, Fusion
Jacket Design Temp.: ≤330
Core Design Temp.: ≤360 Valve Size: DN 25~DN 400 (1~16)
Jacket Pressure Class: 0.6~2.5 Mpa 150LB
Core Pressure Class: 0.6~42 Mpa 125LB~2500LB
High-Tech and Science results certificates
Iso 9001 international quality certificate
Patents (we have 20 patents which are authorized by State intellctual property office of P.R.C)
